2018 Outlaw & Outlaw Extreme - Engine - Kawasaki FX751

2018 Outlaw & Outlaw Extreme - Engine - Kawasaki FX751

The 2018 Outlaw & Outlaw Extreme Engine - Kawasaki FX751 delivers outstanding performance, but keeping it in top shape requires high-quality Bad Boy Mower Parts. At BadBoyMowerParts.com, we carry a full range of engine components, including filters, carburetors, and ignition systems, to ensure your mower operates efficiently. Our Bad Boy Mower Part Diagrams simplify locating the exact parts needed for maintenance and repairs. In addition to engine parts, we offer a vast selection of Bad Boy Lawn Mower Parts to keep your entire mower functioning flawlessly. Ordering Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can keep your mower running smoothly while saving money. Ensure the longevity of your 2018 Outlaw & Outlaw Extreme Engine - Kawasaki FX751 with top-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

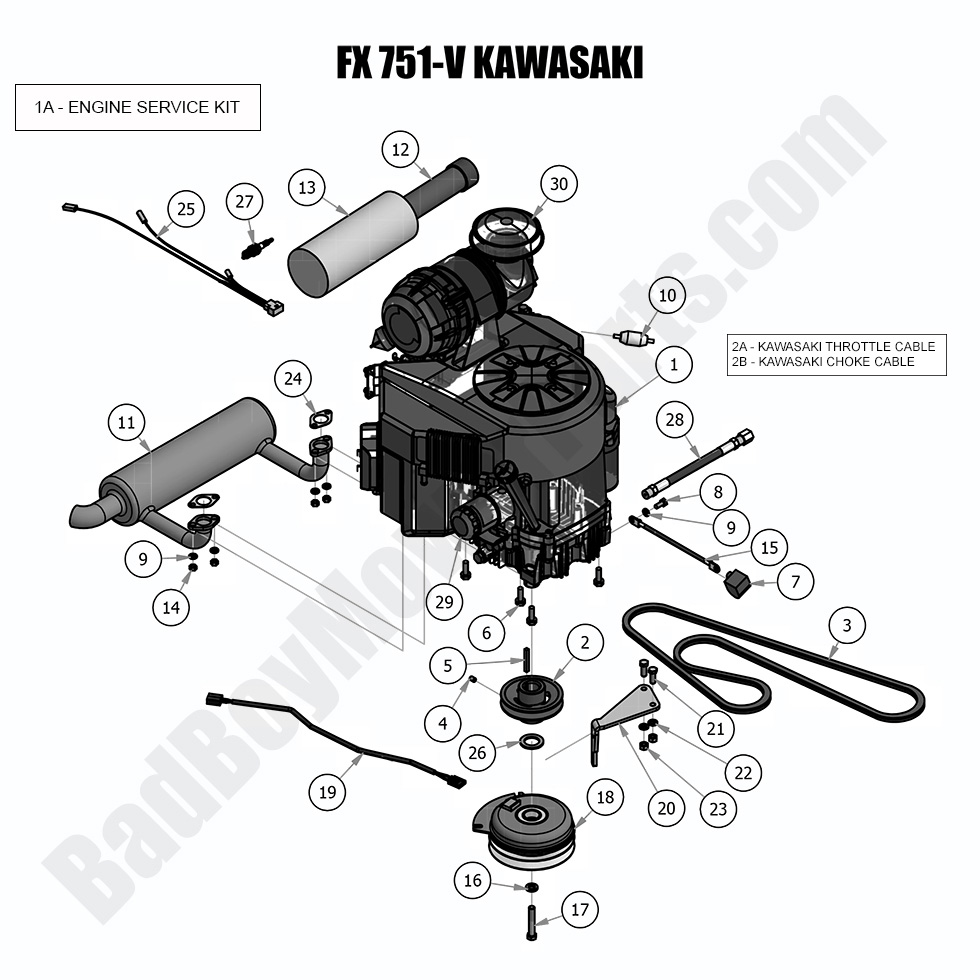

2018 Outlaw & Outlaw Extreme - Engine - Kawasaki FX751
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1 015-0067-00 015-0067-00 - FX751V Kawasaki-2018 Outlaw Bas
$2999.00
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
3 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
5 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
8 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$219.99
12 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
13 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
14 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
15 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
16 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
17 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
18 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
19 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
20 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
21 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
24 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
25 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
26 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
27 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
28 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
29 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
30 088-1071-00 088-1071-00 - 31 KAW Rain Cap for Canister (See Models Used On For Details)
$64.19
