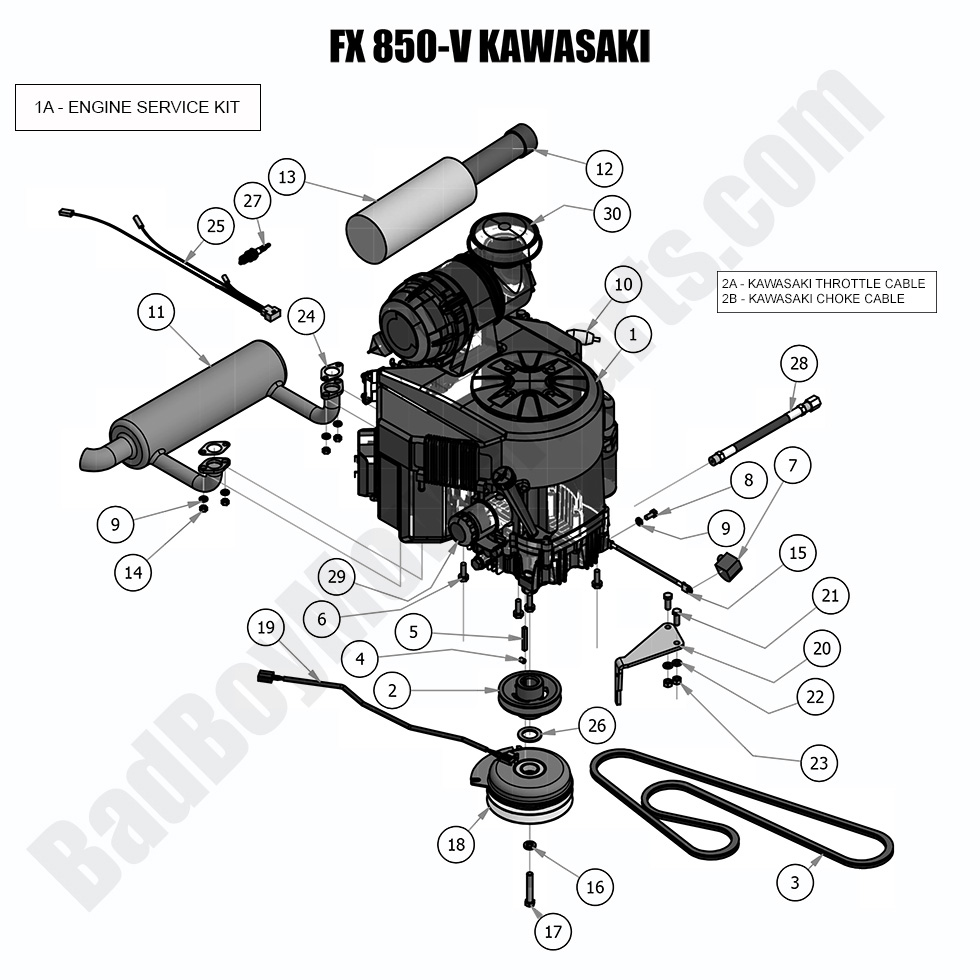

2018 Outlaw & Outlaw Extreme - Engine - Kawasaki FX850

2018 Outlaw & Outlaw Extreme - Engine - Kawasaki FX850

For superior mowing power, the 2018 Outlaw & Outlaw Extreme Engine - Kawasaki FX850 is a high-performance engine that requires proper maintenance. BadBoyMowerParts.com offers premium Bad Boy Mower Parts, including oil filters, fuel pumps, and electrical components, to keep your engine in peak condition. Using our Bad Boy Mower Part Diagrams, you can quickly locate the right engine parts for easy repairs and upgrades. In addition to engine components, we carry a wide range of Bad Boy Lawn Mower Parts to keep your mower working like new. Shopping for Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, you save while keeping your machine at its best. Maintain your 2018 Outlaw & Outlaw Extreme Engine - Kawasaki FX850 with genuine parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw & Outlaw Extreme - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
3 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
5 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
8 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$219.99
12 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
13 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
14 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
15 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
16 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
17 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
18 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
19 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
20 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
21 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
22 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
23 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
24 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
25 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
26 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
27 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
28 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
29 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
30 088-1071-00 088-1071-00 - 31 KAW Rain Cap for Canister (See Models Used On For Details)
$64.19
