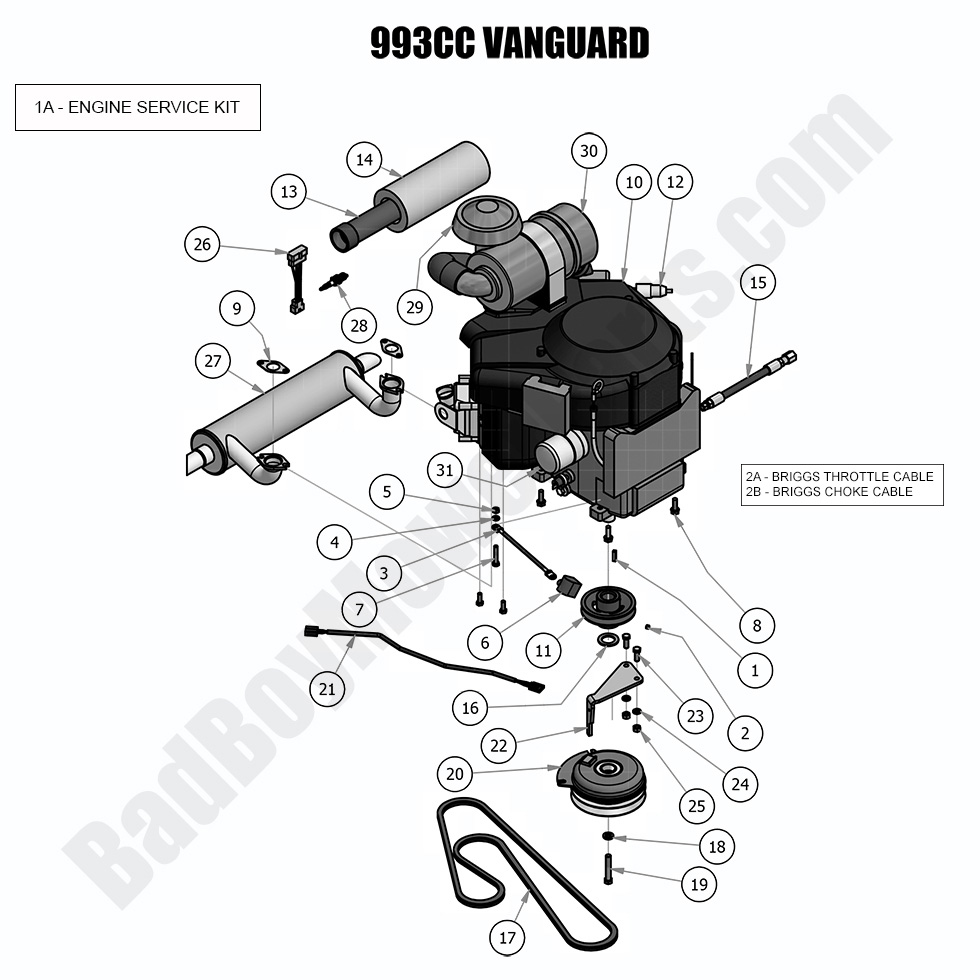

2018 Outlaw & Outlaw Extreme - Engine - Vanguard 993

2018 Outlaw & Outlaw Extreme - Engine - Vanguard 993

Power and performance define the 2018 Outlaw & Outlaw Extreme Engine - Vanguard 993, but maintaining it requires reliable Bad Boy Mower Parts. At BadBoyMowerParts.com, we offer top-quality engine components, including spark plugs, fuel injectors, and cooling system parts, to keep your mower running efficiently. Our Bad Boy Mower Part Diagrams help you find the exact parts needed for quick and effective repairs. In addition to engine parts, we stock a broad selection of Bad Boy Lawn Mower Parts for every aspect of your mower’s maintenance. Ordering Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can keep your engine in great condition without extra cost. Keep your 2018 Outlaw & Outlaw Extreme Engine - Vanguard 993 in peak shape with quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw & Outlaw Extreme - Engine - Vanguard 993
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
3 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
4 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
10 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4379.44
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
16 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
17 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
18 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
19 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
20 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
21 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
22 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
23 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
26 086-9001-00 086-9001-00 - Harness Adaptor-36 Vanguard
$35.30
27 015-0049-00 015-0049-00 - Exhaust-36hp Vanguard
$159.10
28 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
29 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
30 015-2705-00 015-2705-00 - Complete Canister 30KO and pre-2010/26KA (See Models Used On For Details)
$409.99
31 063-8018-00 063-8018-00 - Oil Filter
$21.39
