2018 Outlaw & Outlaw Extreme - Engine - Yamaha 824

2018 Outlaw & Outlaw Extreme - Engine - Yamaha 824

The 2018 Outlaw & Outlaw Extreme Engine - Yamaha 824 is a powerhouse, but like any engine, it requires quality maintenance. BadBoyMowerParts.com provides essential Bad Boy Mower Parts, including replacement filters, electrical components, and carburetor kits, to ensure lasting performance. Our Bad Boy Mower Part Diagrams simplify the process of finding the right components for your specific model. Alongside engine parts, we offer an extensive selection of Bad Boy Lawn Mower Parts for complete mower maintenance. Ordering Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you get the best value on genuine parts. Keep your 2018 Outlaw & Outlaw Extreme Engine - Yamaha 824 running like new with high-quality replacements from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

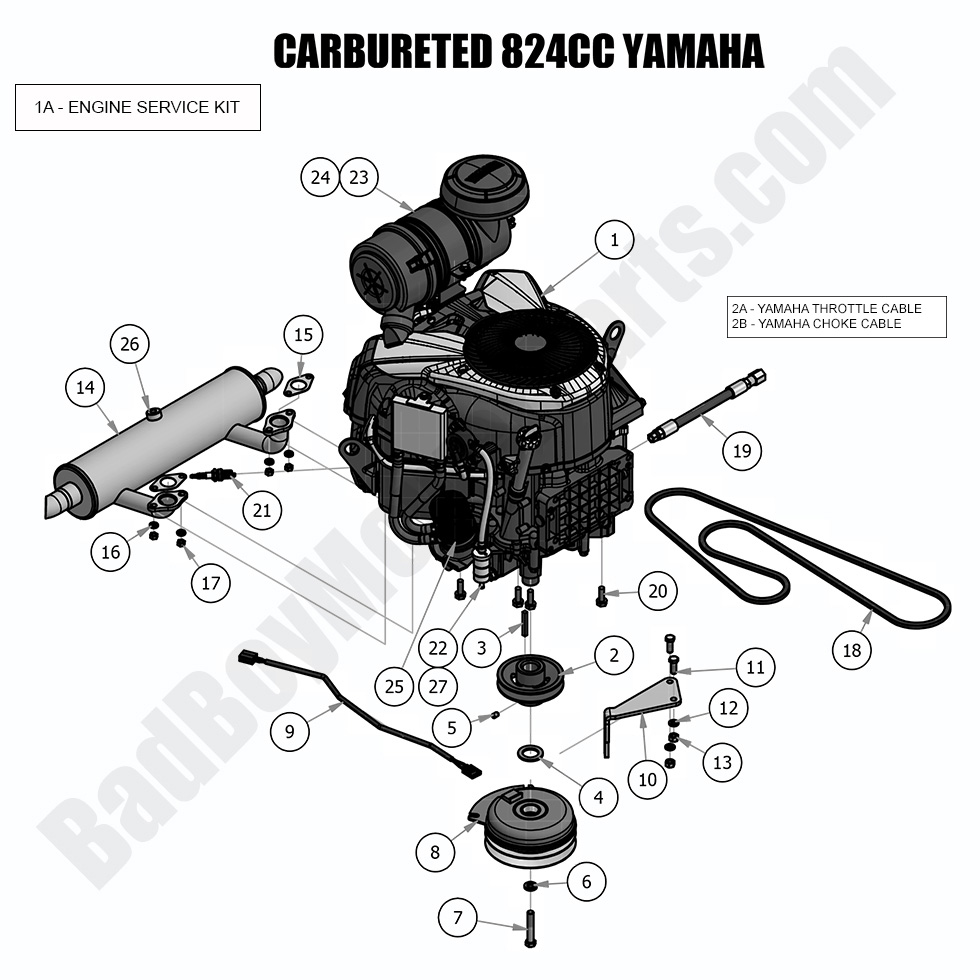

2018 Outlaw & Outlaw Extreme - Engine - Yamaha 824
  Position Number SKU Product Title Price
1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
1 015-0076-00 015-0076-00 - Yamaha Engine-27.5hp Carbureted
$3981.37
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
5 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
8 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
9 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
10 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
11 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 015-0050-00 015-0050-00 - 2017-2018 Yamaha Exhaust
$163.90
15 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
16 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
17 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
18 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
19 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
20 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
21 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99
22 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
23 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
24 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
25 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23
26 015-0050-01 015-0050-01 - O2 Bung Plug 12mm x 1.25 CS plus the hol
$9.89
27 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
