2018 Outlaw & Outlaw Extreme - Gas Tank Assemblies

2018 Outlaw & Outlaw Extreme - Gas Tank Assemblies

The 2018 Outlaw & Outlaw Extreme Gas Tank Assemblies are crucial for fuel storage and delivery, ensuring your mower operates efficiently. If you need replacement fuel caps, fuel lines, or a complete gas tank assembly, BadBoyMowerParts.com has the Bad Boy Mower Parts you need. Our Bad Boy Mower Part Diagrams make it simple to locate the correct gas tank components for easy repairs and maintenance. We also carry a full selection of Bad Boy Lawn Mower Parts to keep your machine running in peak condition. Shopping for Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you save while getting the best parts for your mower. Maintain your 2018 Outlaw & Outlaw Extreme Gas Tank Assemblies with top-quality components from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

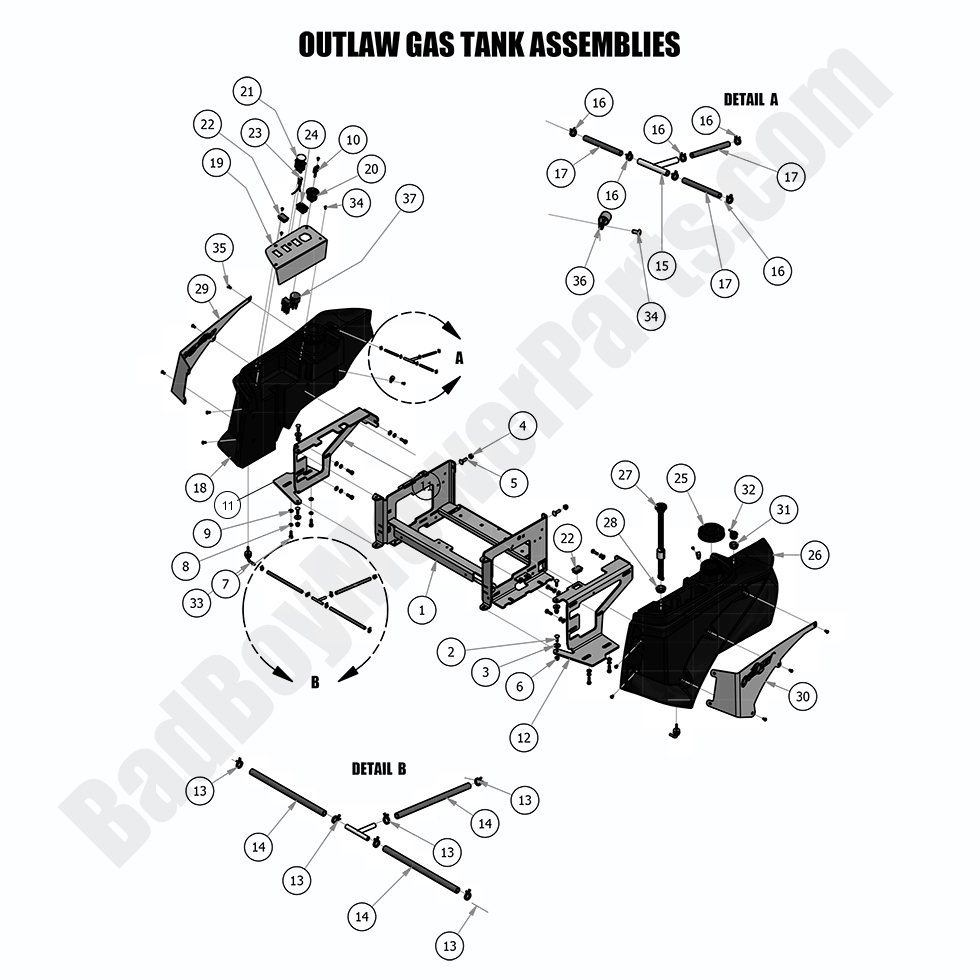

2018 Outlaw & Outlaw Extreme - Gas Tank Assemblies
  Position Number SKU Product Title Price
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$399.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$259.99
19 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
20 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
21 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22 018-1040-00 018-1040-00 - Light Plug
$2.99
23 089-1000-00 089-1000-00 - Oil Light
$12.63
24 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
25 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
26 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$329.99
27 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
28 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
29 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
30 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
32 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
34 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
35 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$363.44
