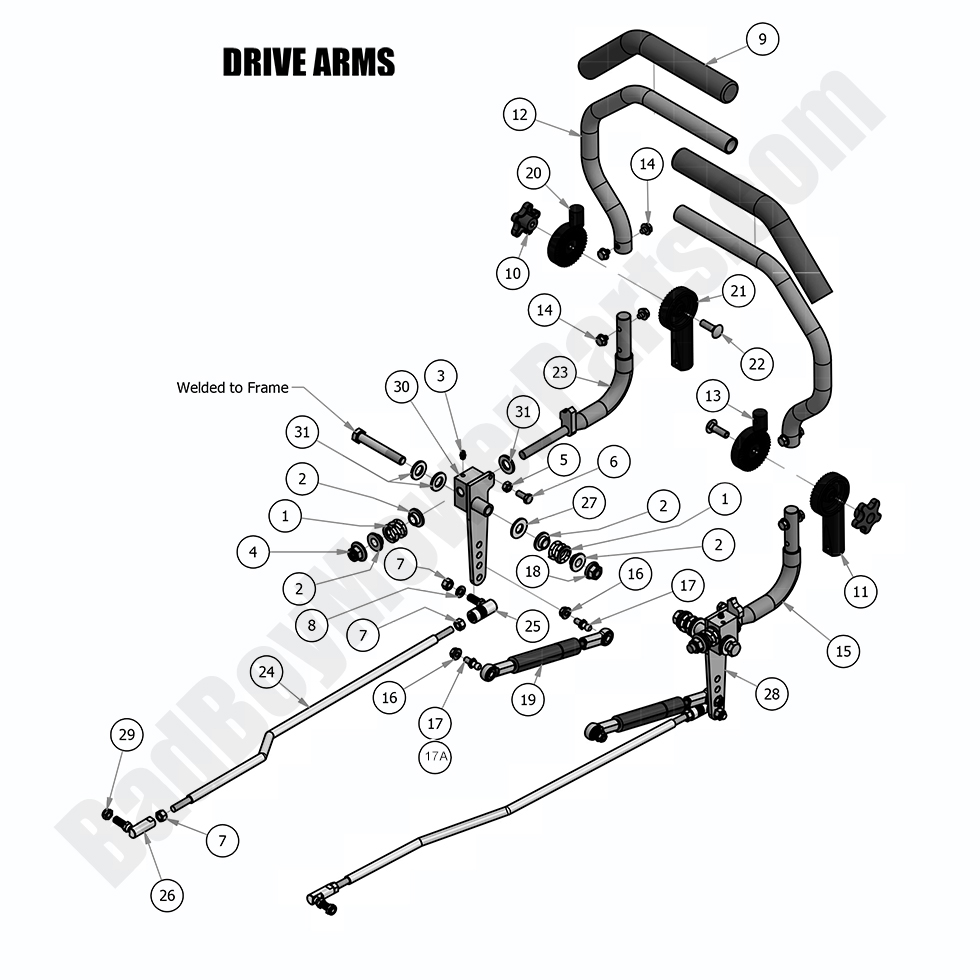

2018 Outlaw XP - Drive Arms

2018 Outlaw XP - Drive Arms

The 2018 Outlaw XP Drive Arms play a crucial role in steering and maneuverability, ensuring a smooth and responsive mowing experience. Over time, these components can wear down, but BadBoyMowerParts.com has the Bad Boy Mower Parts needed to restore precise control. Whether you need replacement drive arms, bushings, or linkage components, our Bad Boy Mower Part Diagrams simplify the selection process for easy repairs. We also provide a full selection of Bad Boy Lawn Mower Parts to maintain every aspect of your machine. Ordering Bad Boy Parts Online is quick and secure, allowing you to get the exact parts you need without hassle. Plus, with Free Shipping On Orders Over $100, you get the best deal on quality components. Keep your 2018 Outlaw XP Drive Arms in excellent condition with reliable replacements from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw XP - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
10 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
11 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
12 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
12a 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
12b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
13 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
14 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
15 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
17 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
18 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
19 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
20 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24
21 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
23 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
24 035-5350-00 035-5350-00 - 2012-2018 Outlaw XP Steering Push Rod
$31.22
25 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
26 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
27 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
28 027-2017-00 027-2017-00 - Steering Block Assembly-Right (See Models Used On For Details)
$35.30
29 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
30 027-2018-00 027-2018-00 - Steering Block Assembly-Left (See Models Used On For Details)
$35.30
31 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
