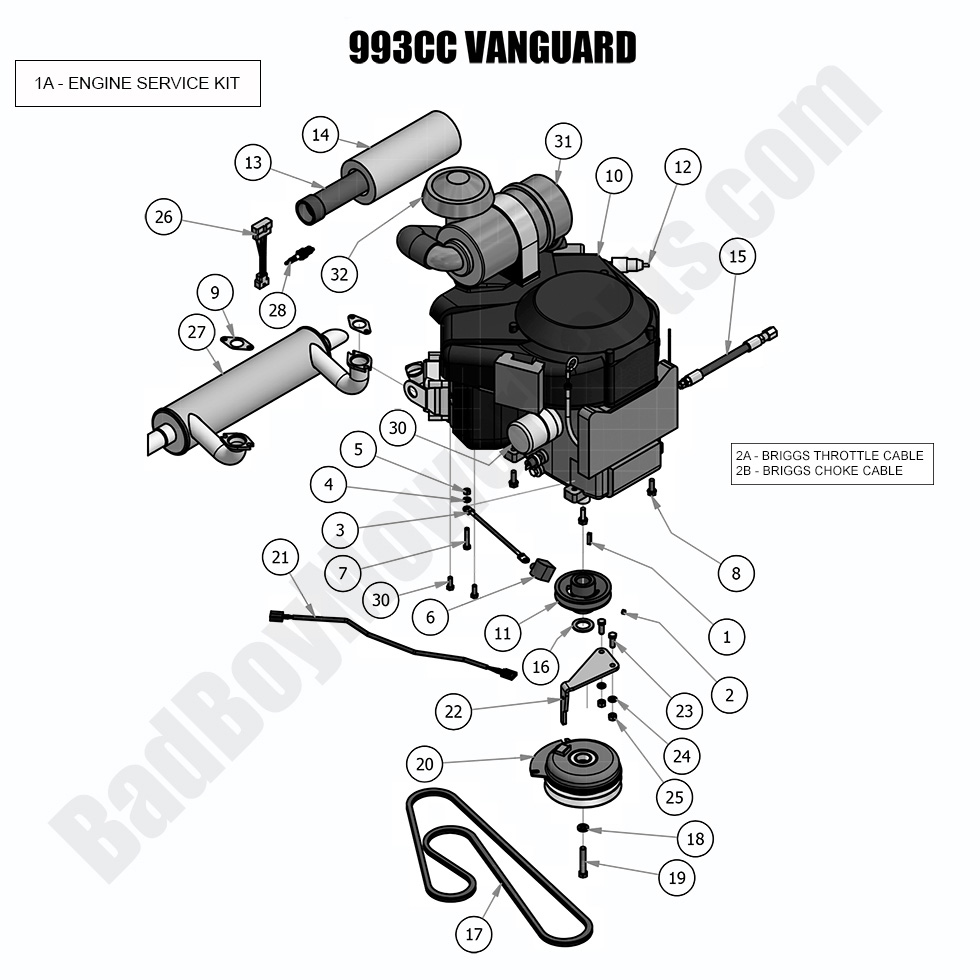

2018 Outlaw XP - Engine - Vanguard 993

2018 Outlaw XP - Engine - Vanguard 993

Designed for durability and performance, the 2018 Outlaw XP Engine - Vanguard 993 is a reliable power source that requires proper maintenance. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including air filters, carburetors, spark plugs, and oil filters to keep your engine running at its best. Our Bad Boy Mower Part Diagrams make finding the right parts easy, ensuring precision when it comes to repairs and replacements. In addition to engine components, we provide a full range of Bad Boy Lawn Mower Parts for complete mower maintenance. Ordering Bad Boy Parts Online is fast and convenient, giving you access to top-tier parts without the hassle. Plus, with Free Shipping On Orders Over $100, you receive the best value for essential mower components. Keep your 2018 Outlaw XP Engine - Vanguard 993 performing like new with quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw XP - Engine - Vanguard 993
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
3 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
4 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
10 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4379.44
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
16 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
17 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
18 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
19 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
20 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
21 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
22 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
23 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
26 086-9001-00 086-9001-00 - Harness Adaptor-36 Vanguard
$35.30
27 015-0049-00 015-0049-00 - Exhaust-36hp Vanguard
$159.10
28 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
30 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
30 063-8018-00 063-8018-00 - Oil Filter
$21.39
31 015-2705-00 015-2705-00 - Complete Canister 30KO and pre-2010/26KA (See Models Used On For Details)
$409.99
32 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
