2018 Outlaw XP - Floorboard and Battery

2018 Outlaw XP - Floorboard and Battery

The 2018 Outlaw XP Floorboard and Battery play an important role in providing comfort and reliable power to your mower. Over time, these components can wear out, but BadBoyMowerParts.com has the Bad Boy Mower Parts needed to restore their functionality. Whether you need a new floorboard for stability or a high-performance battery to keep your mower running, we have you covered. Our Bad Boy Mower Part Diagrams make it easy to find and order the right parts for a perfect fit. We also carry a complete selection of Bad Boy Lawn Mower Parts to ensure your entire mower is in peak condition. Ordering Bad Boy Parts Online simplifies the process, giving you access to top-quality replacements quickly. Plus, with Free Shipping On Orders Over $100, you get the best value on essential components. Keep your 2018 Outlaw XP Floorboard and Battery in top shape with premium parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

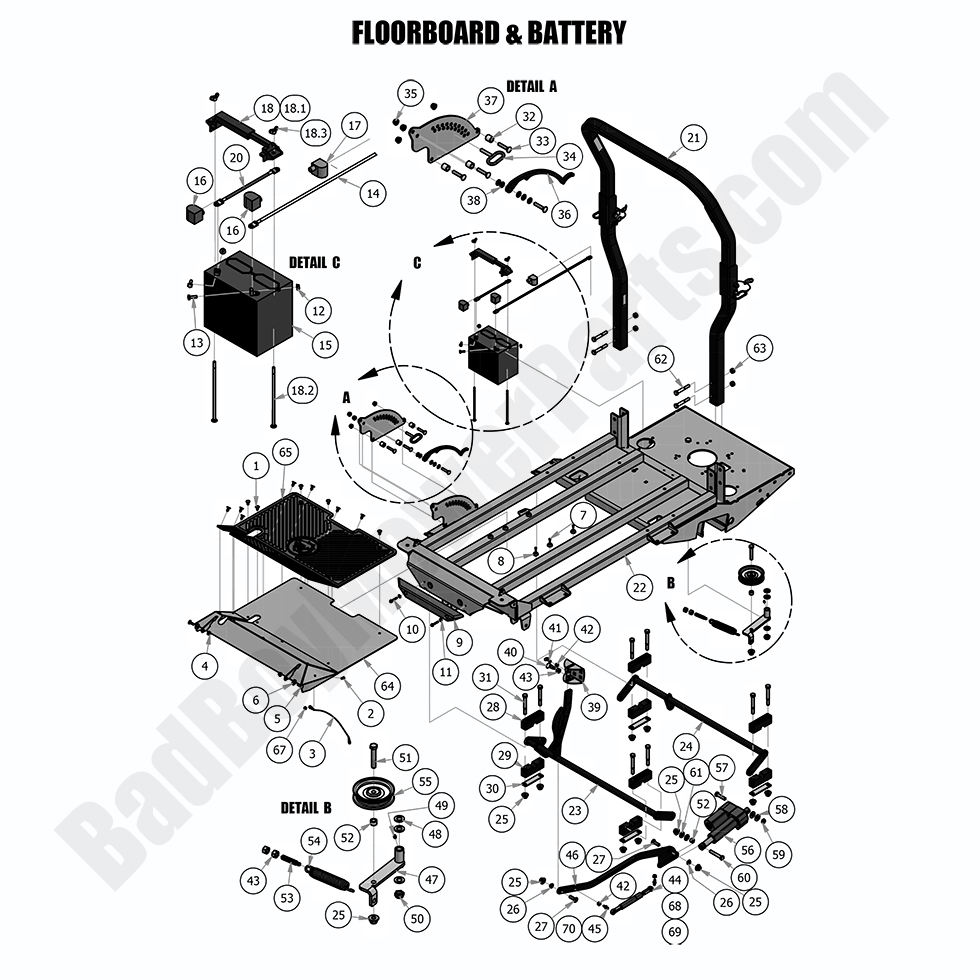

2018 Outlaw XP - Floorboard and Battery
  Position Number SKU Product Title Price
1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
2 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
3 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
8 029-4010-00 029-4010-00 - Button Bumper
$2.99
9 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
10 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
11 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
12 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
13 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
16 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
17 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
18.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
18.2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
18.3 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
20 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
21 089-0002-00 089-0002-00 - 2x2 Folding ROPS, Fits 2011 Pup & Lightning, 2010-2018 Outlaw & Outlaw XP
$796.75
22 070-5380-17 070-5380-17 - 2017-2018 Outlaw XP Frame
$1299.99
23 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$189.99
24 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$175.99
25 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
27 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
28 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
29 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
30.0 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
30 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
31 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
32 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
33 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
34 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
35 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
36 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
37 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
38 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
39 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
40 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
41 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
42 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
43 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
44 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
45 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
46 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39
47 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
48 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
49 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
50 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
51 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
52 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
53 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
54 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
55 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
56 035-7033-00 035-7033-00 - Actuator
$408.75
57 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
58 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
59 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
60 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
61 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
62 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
63 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
64 079-3150-00 079-3150-00 - 2017-2018 Outlaw XP Floor Panel Welded Assembly
$109.99
65 081-2050-00 081-2050-00 - 2016-2018 Outlaw/Outlaw XP Floor Mat
$47.03
67 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
68 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
69 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
70 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
