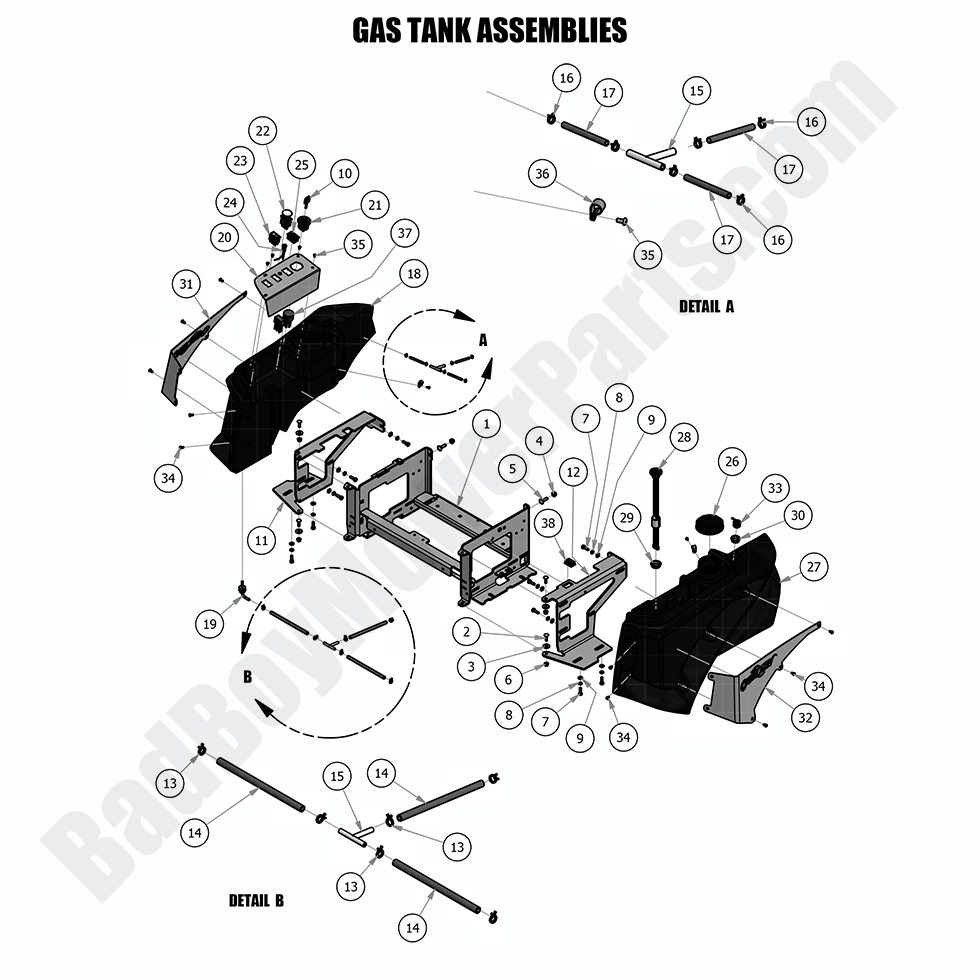

2018 Outlaw XP - Gas Tank Assemblies

2018 Outlaw XP - Gas Tank Assemblies

The 2018 Outlaw XP Gas Tank Assemblies are essential for fuel storage and efficiency, ensuring your mower runs reliably. Over time, fuel tanks and related components may require replacement, and BadBoyMowerParts.com offers the Bad Boy Mower Parts necessary to restore your mower’s performance. Whether you need a new tank, fuel cap, or fuel line, we provide high-quality replacements that fit perfectly. Our Bad Boy Mower Part Diagrams simplify the identification and ordering process, making repairs stress-free. We also stock a full range of Bad Boy Lawn Mower Parts, ensuring every component of your machine remains in top condition. Ordering Bad Boy Parts Online gives you quick access to the best parts available. Plus, with Free Shipping On Orders Over $100, you save while keeping your mower running smoothly. Upgrade your 2018 Outlaw XP Gas Tank Assemblies today with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw XP - Gas Tank Assemblies
  Position Number SKU Product Title Price
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$399.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$259.99
19 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
20 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
21 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
22 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
23 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
24 089-1000-00 089-1000-00 - Oil Light
$12.63
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
27 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$329.99
28 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
29 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
30 067-6054-00 067-6054-00 - Fuel Gauge Grommet
$8.01
31 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
32 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
33 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
34 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
35 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$363.44
38 018-1040-00 018-1040-00 - Light Plug
$2.99
