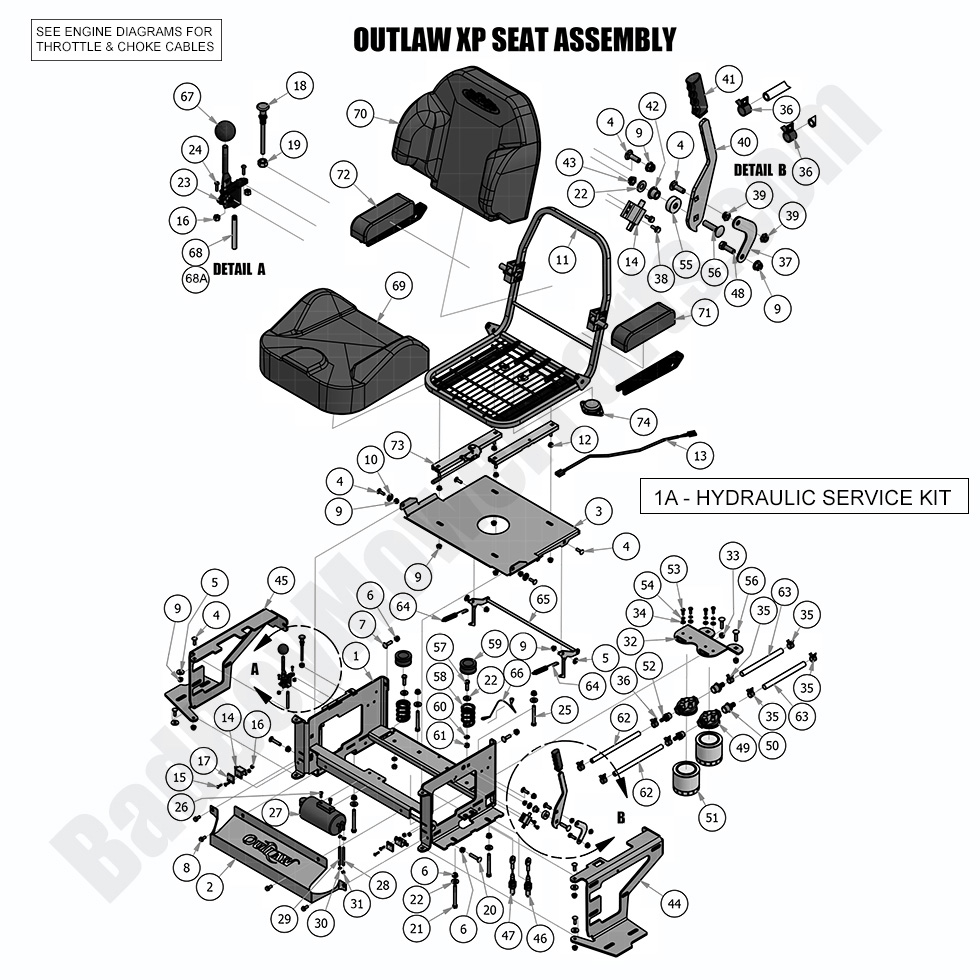

2018 Outlaw XP - Seat Assembly

2018 Outlaw XP - Seat Assembly

The 2018 Outlaw XP Seat Assembly is designed for comfort and durability, ensuring a smooth ride while mowing. If your seat has become worn or damaged, BadBoyMowerParts.com offers high-quality Bad Boy Mower Parts to restore its comfort and support. Our Bad Boy Mower Part Diagrams help you find the correct seat, brackets, and mounting hardware for easy installation. We also carry a comprehensive selection of Bad Boy Lawn Mower Parts, ensuring every component of your mower is in top condition. Ordering Bad Boy Parts Online provides a hassle-free way to get the best replacement parts delivered directly to you. Plus, with Free Shipping On Orders Over $100, you receive top-tier products at the best value. Restore the comfort and functionality of your 2018 Outlaw XP Seat Assembly today with quality replacements from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Outlaw XP - Seat Assembly
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$399.99
2 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
3 026-2016-00 026-2016-00 -Outlaw Seat Plate (See Models Used On For Details)
$99.32
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
11 071-5060-00 071-5060-00 - 2011-2018 Outlaw Models & 2019-2020 Rebel Seat
$699.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
14 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
15 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
16 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
17 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
19 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
20 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
21 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
22 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
23 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
24 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
25 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
26 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
27 067-0020-00 067-0020-00 - Carbon Canister
$62.40
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
30 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
33 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
34 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
35 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
36 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
37 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
38 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
39 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
40 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
41 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
42 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
43 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
44 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
45 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
46 064-9001-00 064-9001-00 - 2015-2018 XP Brake Cable-57.5"
$51.47
47 064-9000-00 064-9000-00 - 2015-2018 Outlaw XP Brake Cable-33"
$51.47
48 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
49 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
50 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
51 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
52 024-5342-00 024-5342-00 - Fitting 1/2 x 3/8 Barb 206-108
$7.95
53 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
54 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
55 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
56 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
57 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
58 034-8045-00 034-8045-00 - Seat Spring
$20.49
59 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
60 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
61 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
62 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
63 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
64 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
65 028-0085-00 028-0085-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$26.70
66 064-8081-00 064-8081-00 - Seat Cable
$15.60
67 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
69 071-5063-00 071-5063-00 - Seat Cover for 071-5060-00 for the 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$134.99
70 071-5064-00 071-5064-00 - Back Cover for 071-5060-00 Used on 2016- 2018 Outlaw, Outlaw/XP, 2019 - 2021 Rebel
$160.49
71 071-5062-00 071-5062-00 - Pair of Arm Pads for the 071-5060-00 2015 Outlaw Seat
$79.58
72 071-5061-00 071-5061-00 - Pair of Armrest for the 071-5060-00 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$119.99
73 071-5015-00 071-5015-00 - Seat Rails
$93.69
74 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
