2018 Walk Behind - 36" Deck Assembly

2018 Walk Behind - 36" Deck Assembly

The 2018 Walk Behind 36" Deck Assembly provides precision cutting and durability, making it essential for maintaining your lawn. If you need replacement parts for your deck, BadBoyMowerParts.com offers high-quality Bad Boy Mower Parts that ensure optimal performance. From blades to pulleys, our Bad Boy Mower Part Diagrams help you quickly find the parts you need for easy and accurate replacements. We carry a full selection of Bad Boy Lawn Mower Parts to support all components of your 2018 Walk Behind 36" Deck Assembly. Ordering Bad Boy Parts Online ensures fast access to top-tier parts without the hassle. Plus, with Free Shipping On Orders Over $100, you get the best value on every purchase. Keep your 2018 Walk Behind 36" Deck Assembly cutting at its best with premium replacements from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

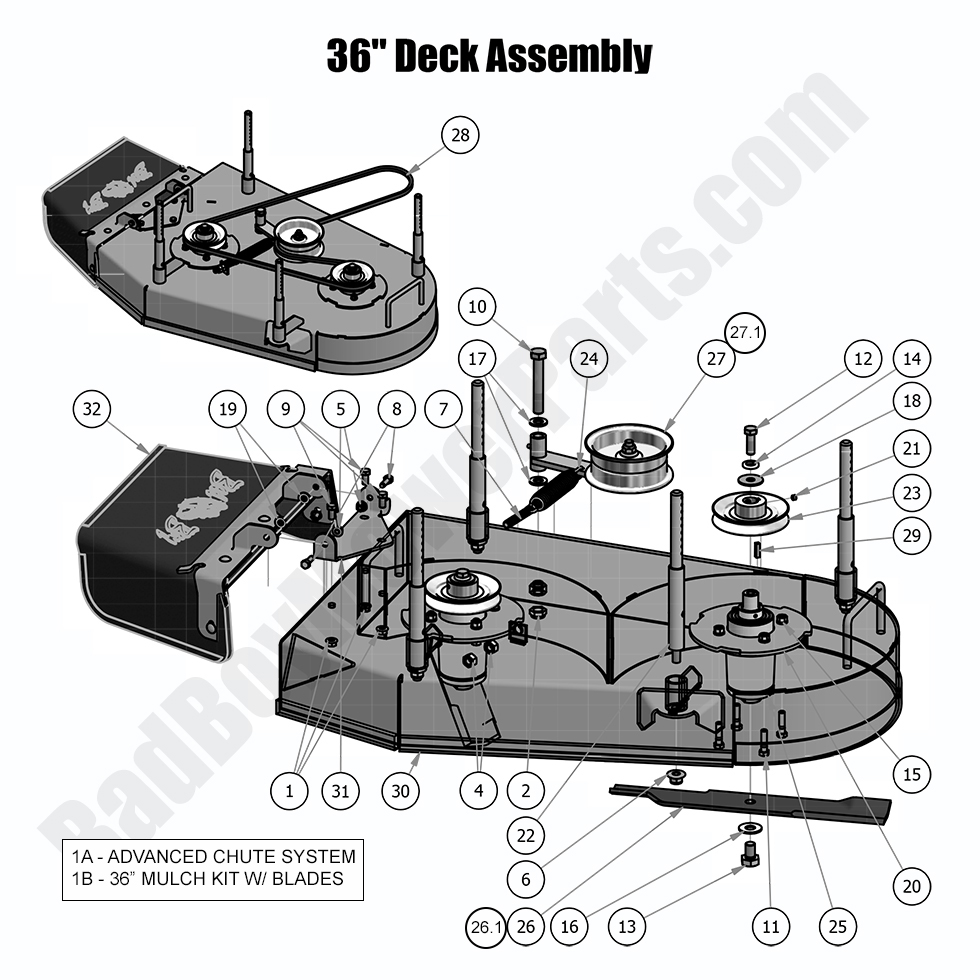

2018 Walk Behind - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
10 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
11 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
12 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
13 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
14 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
15 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
16 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
20 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
21 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
22 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
23 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
24 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
25 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
26.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
26 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
27.1 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77

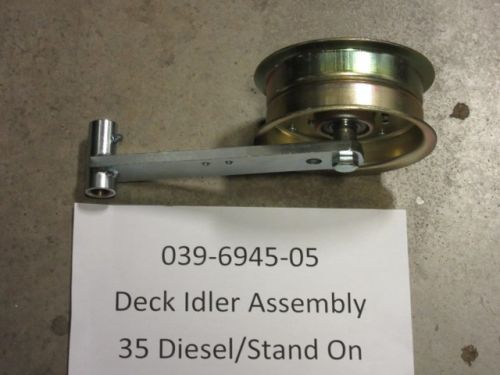

27 039-6945-05 039-6945-05 - Deck Idler Assembly
$68.47
28 041-0121-00 041-0121-00 - 36" Walk Behind Deck Belt
$74.89
29 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81

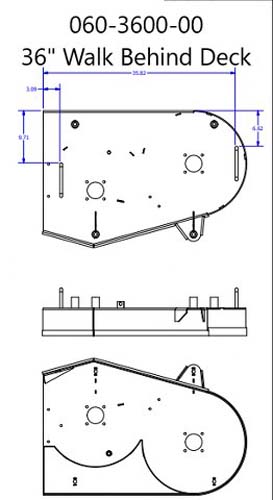

30 060-3600-00 060-3600-00 - 36" Welded Assembly
$599.99
31 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
32 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
