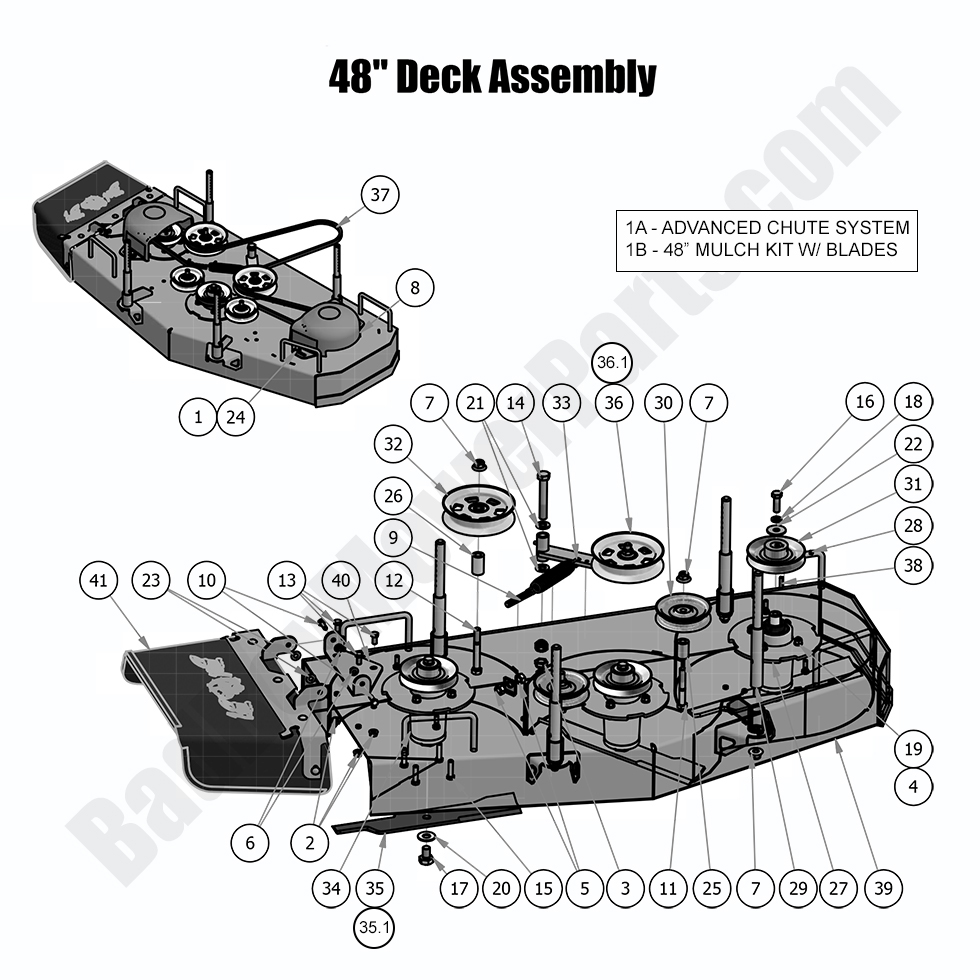

2018 Walk Behind - 48" Deck Assembly

2018 Walk Behind - 48" Deck Assembly

The 2018 Walk Behind 48" Deck Assembly is designed to deliver a precise, even cut every time, but regular maintenance is key to its longevity. At BadBoyMowerParts.com, we provide a wide range of Bad Boy Mower Parts to keep your deck in optimal condition. Whether you need new spindles, blades, or pulleys, our Bad Boy Mower Part Diagrams will guide you in finding the correct components. We also offer a variety of Bad Boy Lawn Mower Parts to ensure your 2018 Walk Behind 48" Deck Assembly is fully functional. By ordering Bad Boy Parts Online, you can easily replace worn-out components and maintain mower efficiency. Plus, enjoy the benefit of Free Shipping On Orders Over $100, ensuring you save money while getting the best parts for your mower. Keep your 2018 Walk Behind 48" Deck Assembly in top condition with quality replacements from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Walk Behind - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0348-50 210-0348-50 - 2017-2018 48" Stand On Mulch Kit w/Blades
$239.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
9 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
20 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
26 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
27 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
28 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
29 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
30 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
31 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
32 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
33 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
34 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
35.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
35 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
36.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
36 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
37 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
38 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
40 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
41 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
