2018 Walk Behind - Engine - Kawasaki FS541

2018 Walk Behind - Engine - Kawasaki FS541

The 2018 Walk Behind Engine - Kawasaki FS541 is designed for reliable power and efficiency. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts, including filters, spark plugs, fuel pumps, and more, to keep your engine running smoothly. Our Bad Boy Mower Part Diagrams make it easy to locate the necessary components for maintenance or repair. We also carry a full inventory of Bad Boy Lawn Mower Parts to ensure every part of your mower is in top working condition. Shopping for Bad Boy Parts Online is convenient, ensuring you get exactly what you need, quickly and easily. Plus, with Free Shipping On Orders Over $100, you can save money on all your engine replacement parts. Keep your 2018 Walk Behind Engine - Kawasaki FS541 operating at its best with premium parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

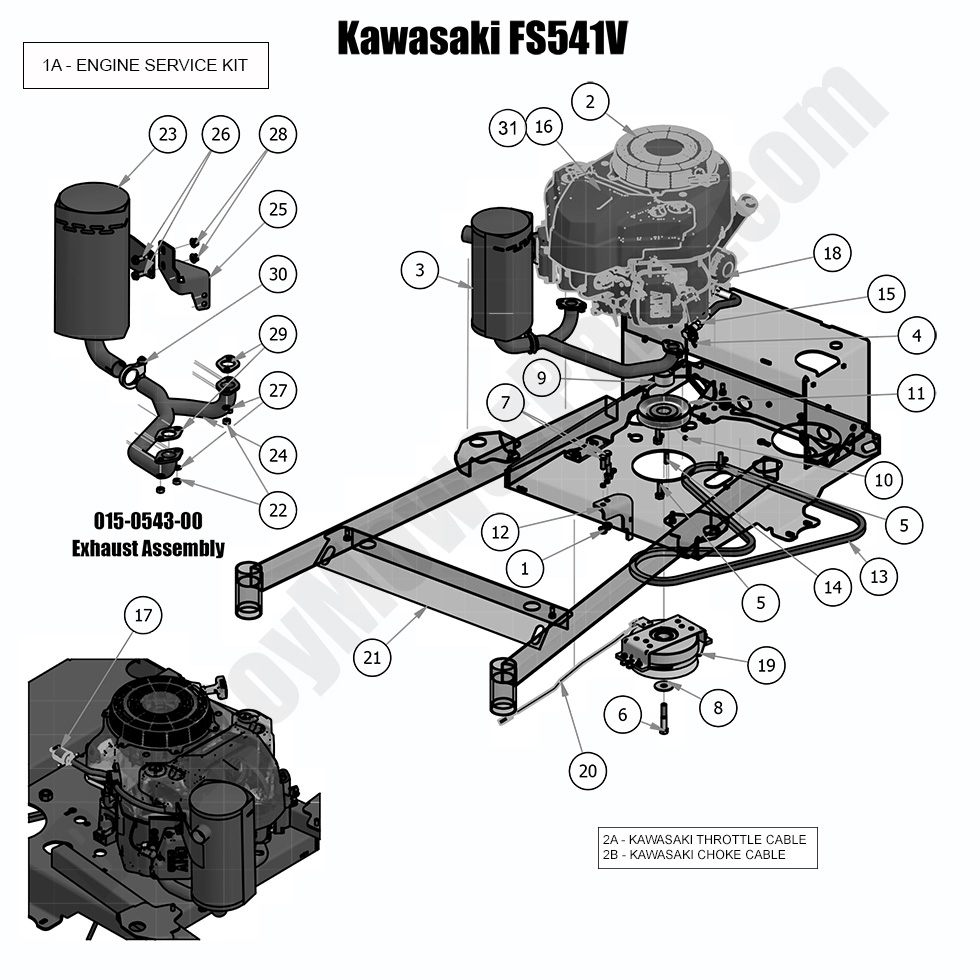

2018 Walk Behind - Engine - Kawasaki FS541
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0541-00 015-0541-00 - FS541V-BS28-S Kawasaki Walk Behind Engine-Pull Sta rt
$2599.00
3 015-0543-00 015-0543-00 - Exhaust Assembly 2018-2023 Kawasaki Walk Behind
$219.99
4 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
7 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
8 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
9 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
10 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
11 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
12 039-1220-00 039-1220-00 - Warner Clutch Bracket For MZ and Magnums
$12.63
13 041-6500-00 041-6500-00 - 36" Walk Behind Pump Belt
$58.84
14 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
15 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
16 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
17 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
18 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
19 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 070-5100-00 070-5100-00 - 2017-2018 Walk Behind Frame Welded Assembly
$1199.99
22 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
23 015-0543-01 015-0543-01 - Exhaust Only for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$106.99
24 015-0543-02 015-0543-02 - Exhaust Pipe for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$64.19
25 015-0543-03 015-0543-03 - Exhaust Bracket for 2018-2022 Kawasaki Walk Behind
$10.99
26 015-0543-04 015-0543-04 - Exhaust Flanged Bolt (See Models Used On For Details)
$2.99
27 015-0543-05 015-0543-05 - Exhaust Washer Spring for Kawasaki (See Models Used On For Details)
$2.99
29 015-0543-07 015-0543-07 - Exhaust Gasket for 2018-2024 Kawasaki Walk Behind
$3.29
30 015-0543-08 015-0543-08 - Exhaust Band for 2018-2022 Kawasaki Walk Behind
$13.90
31 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
