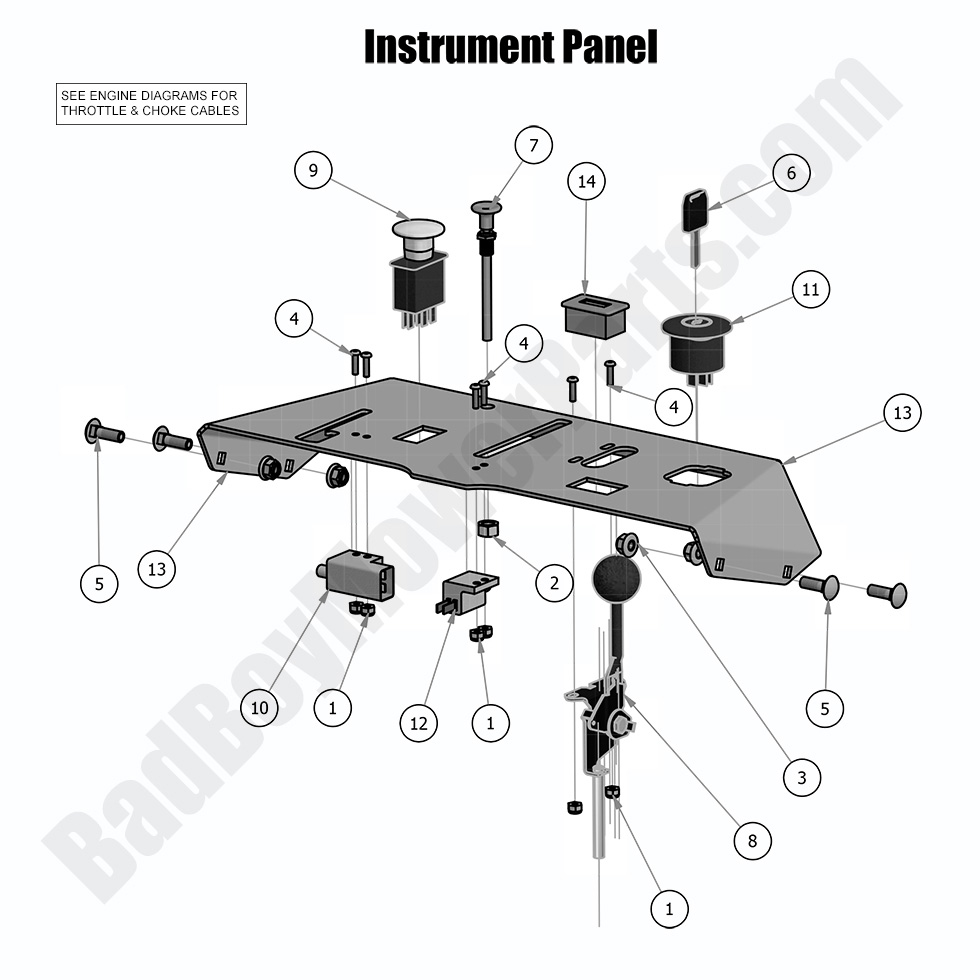

Click Image to Change Diagram
The 2018 Walk Behind Instrument Panel is crucial for monitoring the performance of your mower, providing essential information about engine status, fuel level, and more. If your instrument panel is damaged or malfunctioning, BadBoyMowerParts.com has the Bad Boy Mower Parts you need to restore it. From switches to gauges, our Bad Boy Mower Part Diagrams will help you find the right components quickly. We carry a variety of Bad Boy Lawn Mower Parts to ensure your mower remains fully operational and accurate. By ordering Bad Boy Parts Online, you gain access to premium replacements and accessories without the hassle. Plus, with Free Shipping On Orders Over $100, you get the best deal on all your mower parts. Keep your 2018 Walk Behind Instrument Panel in top shape with quality components from BadBoyMowerParts.com.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 013-5019-00 | 013-5019-00 - 10-24 Nylon Insert Locknut Zinc |
$2.99
|
||
2 | 013-6051-00 | 013-6051-00 - 3/8-24 Hex Jam Nut Zinc |
$2.99
|
||
3 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
4 | 018-5200-00 | 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS |
$2.99
|
||
5 | 018-8065-00 | 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc |
$2.99
|
||
6 | 042-9000-00 | 042-9000-00 - Ignition Key |
$4.06
|
||
9 | 056-8058-00 | 056-8058-00 - PTO Engager-Switch for Blades |
$34.29
|
||
10 | 077-0001-00 | 077-0001-00 - 2017-2025 Walk Behind-Safety Switch Brake |
$23.41
|
||
11 | 077-0003-00 | 077-0003-00 - 2017-2021 Walk Behind-Key Switch |
$32.78
|
||
12 | 077-5300-00 | 077-5300-00 - Deck Stop Switch |
$9.89
|
||
14 | 083-4013-00 | 083-4013-00 - Tachometer-N211-0100-1003 |
$74.89
|
