2018 Walk Behind - Transaxle

2018 Walk Behind - Transaxle

The 2018 Walk Behind Transaxle is a vital component that powers your mower, providing the necessary drive and speed for efficient mowing. If your transaxle begins to show signs of wear or failure, BadBoyMowerParts.com has the Bad Boy Mower Parts you need to replace it. Our Bad Boy Mower Part Diagrams provide clear visuals, ensuring you select the right transaxle for your mower. We also carry a comprehensive range of Bad Boy Lawn Mower Parts to address all your mower’s needs, from drive belts to gear systems. By ordering Bad Boy Parts Online, you get the best quality parts delivered quickly and conveniently. Additionally, enjoy Free Shipping On Orders Over $100, which helps you save while restoring your mower to full performance. Upgrade your 2018 Walk Behind Transaxle with quality components from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

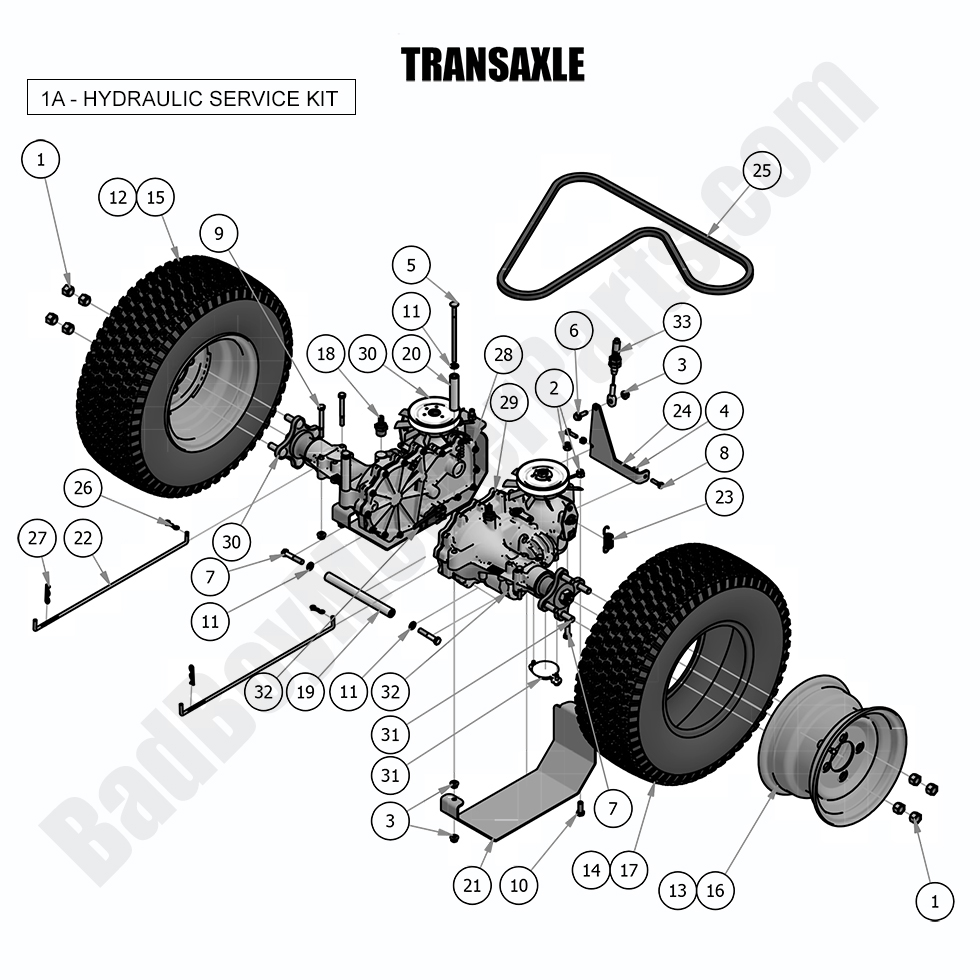

2018 Walk Behind - Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
1 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
4 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
5 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
6 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
7 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
8 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
9 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
10 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$174.99

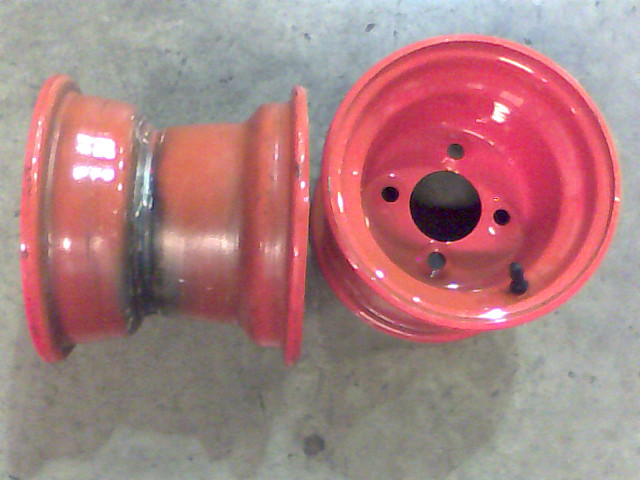

13 022-6002-00 022-6002-00 - 8 inch Wheel for ZT Wheel for a 022-6000-00 (One Rim Only)
$122.99

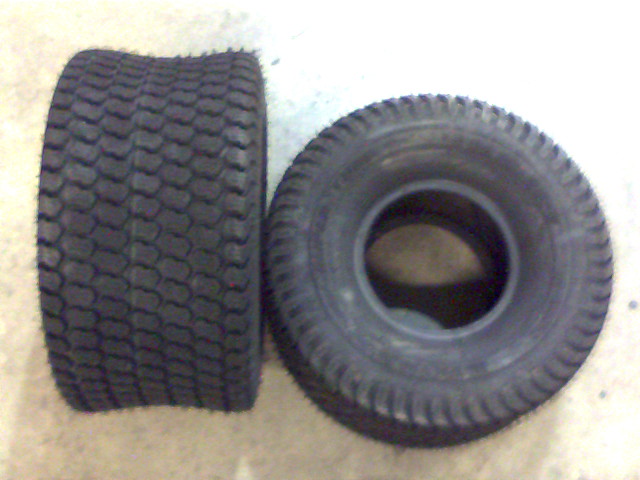

14 022-6003-00 022-6003-00 - 20x10.50-8 Turf Tire (One Tire Only)
$141.99
15 022-8019-00 022-8019-00 - 21x7-10 Assy-36" 2017 Walk Behind
$171.99
16 022-8022-00 022-8022-00 - 10" Wheel Only-36" Stand On & Walk Behind
$73.83

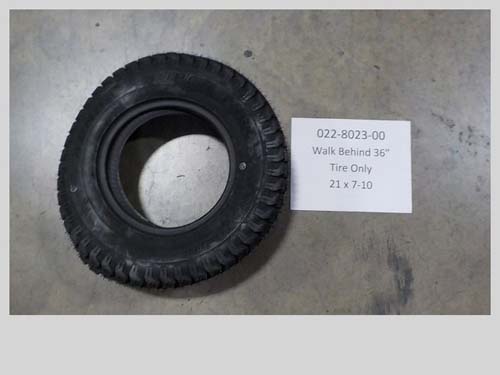

17 022-8023-00 022-8023-00 - - Walk Behind 36" Tire Only 21 X 7-10 Kenda K 500 Model
$119.99
18 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
19 025-0016-00 025-0016-00 - Transaxle Spacer-MZ (See Models Used On For Details)
$14.04
20 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
21 026-3440-00 026-3440-00 - Walk Behind Trans Skid Plate
$53.49
22 028-0070-00 028-0070-00 - Neutral Rod
$12.48
23 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
24 039-1917-00 039-1917-00 - Walk Behind Brake Pull Bracket
$10.99

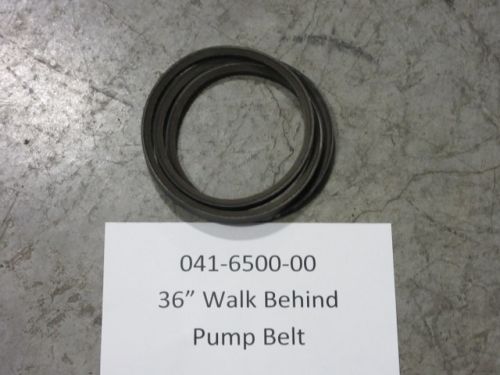

25 041-6500-00 041-6500-00 - 36" Walk Behind Pump Belt
$58.84
26 044-2004-00 044-2004-00 - Bow Pin
$2.99
27 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
28 050-0003-00 050-0003-00 - 2017-2021 Walk Behind Transaxle Right 3100
$699.99
29 050-0004-00 050-0004-00 - 2017-2021 Walk Behind Transaxle Left 3100
$549.99
30 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
30 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
31 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
32 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
33 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
