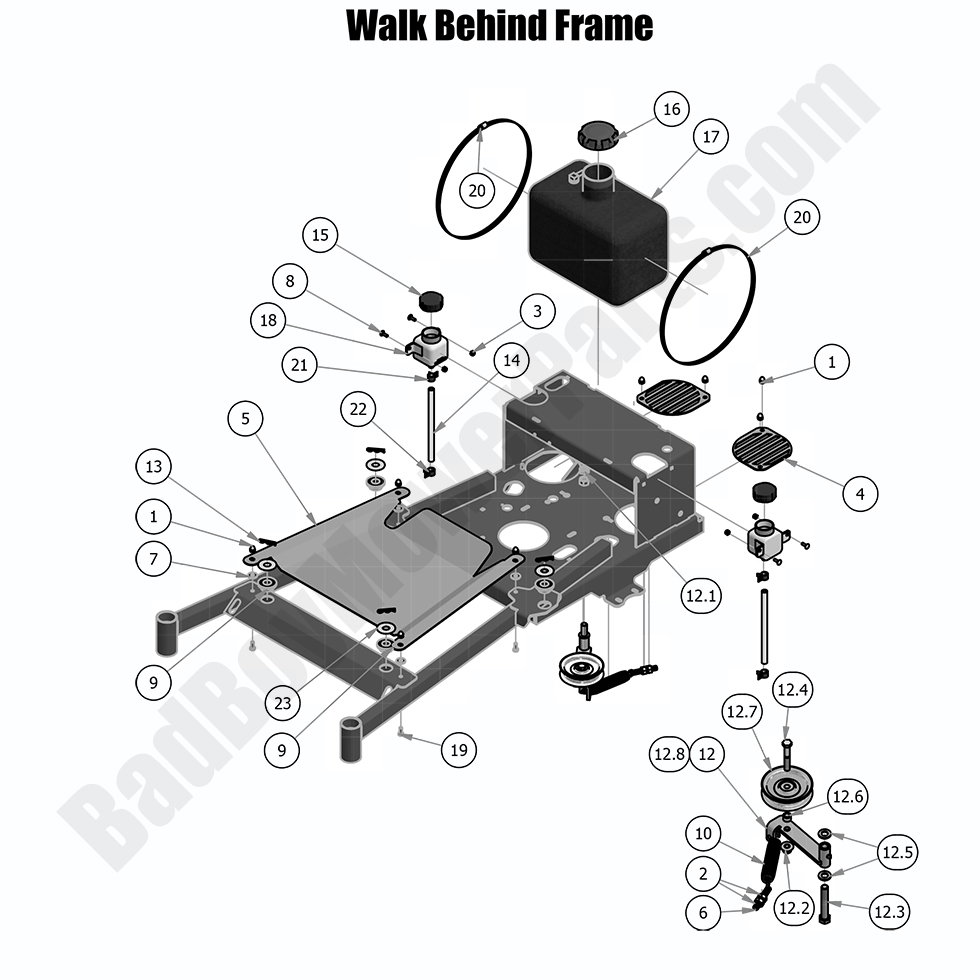

2018 Walk Behind - Walk Behind Frame

2018 Walk Behind - Walk Behind Frame

The 2018 Walk Behind Walk Behind Frame provides the structural integrity that supports all of your mower’s components. Over time, the frame may become damaged or worn, but BadBoyMowerParts.com offers a selection of Bad Boy Mower Parts to keep your frame in top condition. Our Bad Boy Mower Part Diagrams help you locate and order the correct frame parts, whether you need frame braces, bolts, or other structural elements. We also offer a variety of Bad Boy Lawn Mower Parts to ensure your entire mower is functioning optimally. Ordering Bad Boy Parts Online allows you to quickly get the parts you need for easy repairs. Plus, with Free Shipping On Orders Over $100, you get the best value while keeping your mower in working order. Maintain the strength and stability of your 2018 Walk Behind Walk Behind Frame with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 Walk Behind - Walk Behind Frame
  Position Number SKU Product Title Price
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
3 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
4 014-3580-00 014-3580-00 - Walk Behind Bolt On Fan Cover
$10.99
5 014-3590-18 014-3590-18 - 2018-2022 Walk Behind Cover
$32.09
6 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
7 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
8 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
9 025-0031-00 025-0031-00 - Deck Hanger Insert (Walk Behind)
$10.21
10 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
12.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
12.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
12.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
12.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
12.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
12 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
13 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
14 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
15 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
16 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
17 067-0003-00 067-0003-00 - 2017-2024 Walk Behind Black Fuel Tank
$300.99
18 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
19 070-5100-00 070-5100-00 - 2017-2018 Walk Behind Frame Welded Assembly
$1199.99
20 072-0050-00 072-0050-00 - Fuel Tank Clamp (See Models Used On For Details)
$11.34
21 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
22 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
