2018 ZT Elite - 48" Deck Assembly

2018 ZT Elite - 48" Deck Assembly

The 2018 ZT Elite 48" Deck Assembly provides a wide cutting path for efficient mowing. If your deck assembly is damaged or worn out, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts to restore it to full working order. With our Bad Boy Mower Part Diagrams, you can easily find the parts you need for your 2018 ZT Elite 48" deck, from blades to spindles. We offer a full selection of Bad Boy Lawn Mower Parts, ensuring you get the right components for the perfect cut every time. By shopping Bad Boy Parts Online, you gain easy access to quality parts, and with Free Shipping On Orders Over $100, you save on every order. Upgrade or replace your 2018 ZT Elite 48" Deck Assembly with premium parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

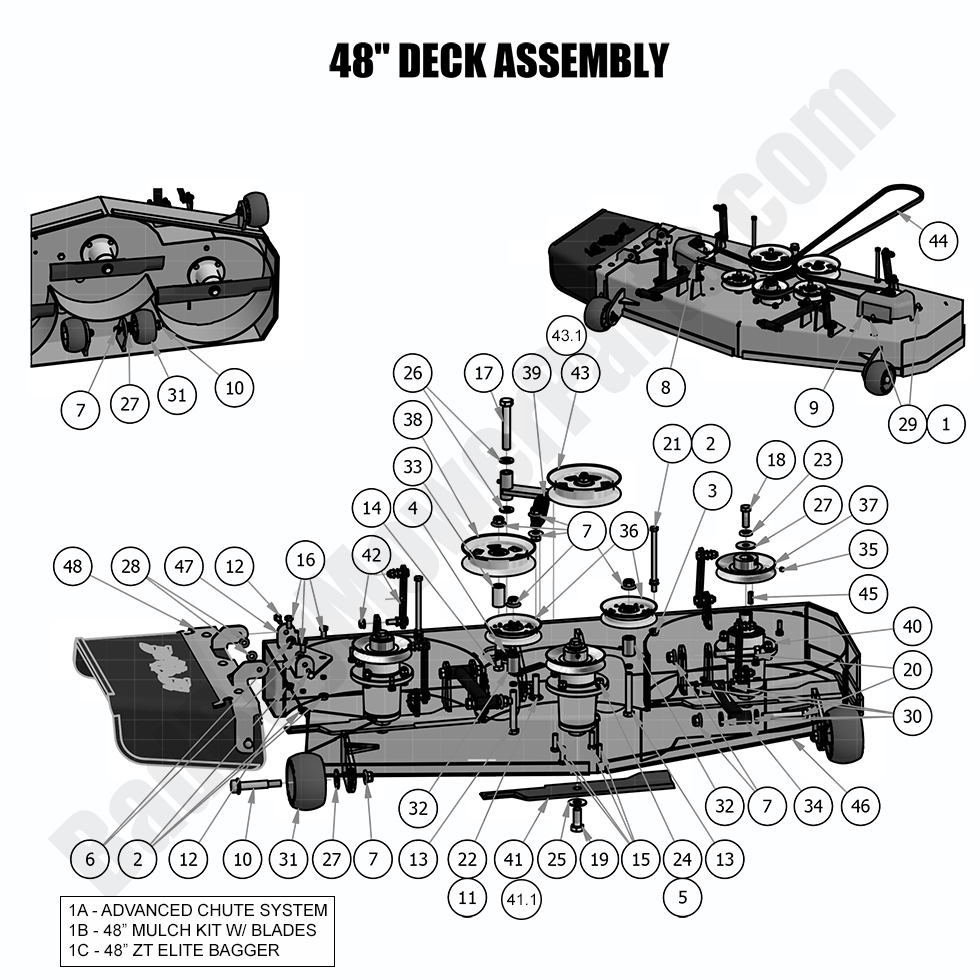

2018 ZT Elite - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 028-0004-00 028-0004-00 - 2017-2021 ZT/MZ/MZ Magnum Deck Locator (obsolete)
use part #028-0004-22
$46.84
35 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
36 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
37 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
38 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
39 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
40 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
41.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
41 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
42 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
43.1 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
43 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
44 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
45 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
46 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
47 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
48 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
