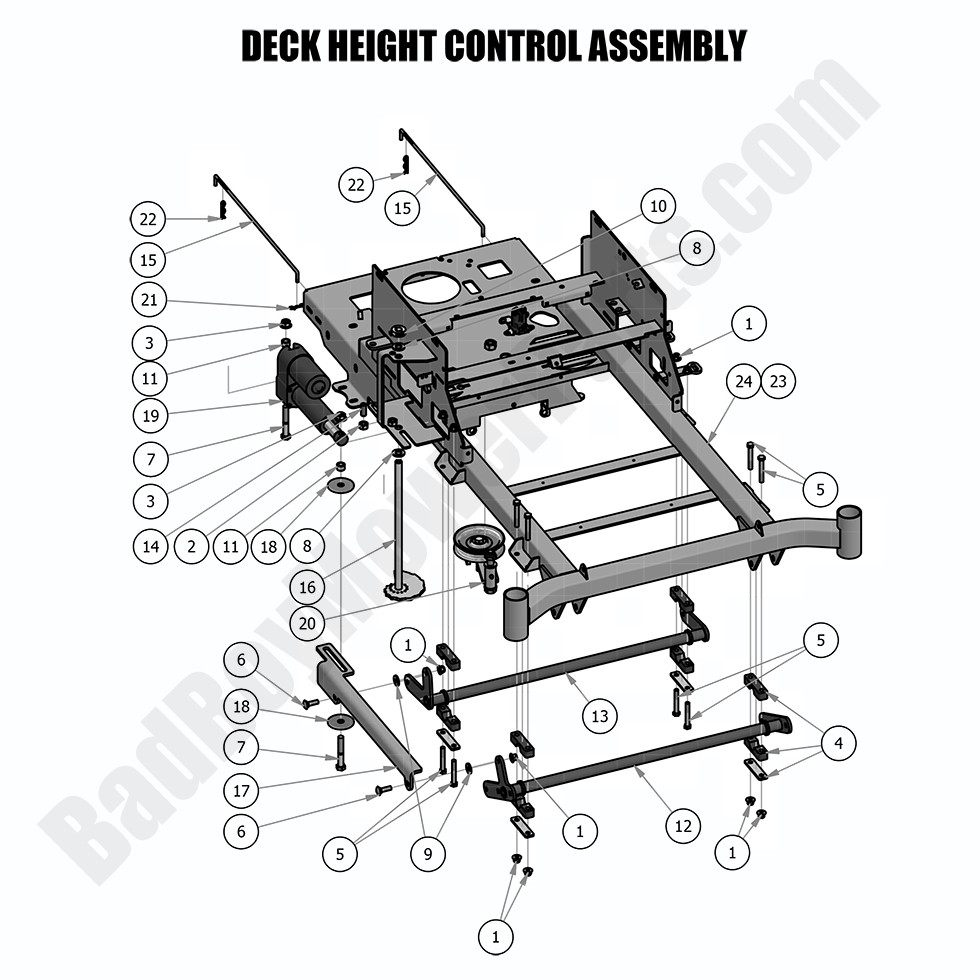

2018 ZT Elite - Deck Height Control Assembly

2018 ZT Elite - Deck Height Control Assembly

The 2018 ZT Elite Deck Height Control Assembly is an essential component for ensuring your mower delivers an even and precise cut. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts to keep your deck height control system in top shape. With our detailed Bad Boy Mower Part Diagrams, you can easily locate the correct parts for your 2018 ZT Elite, from the height control assembly to the control arms and adjusting mechanisms. We offer a wide selection of Bad Boy Lawn Mower Parts, ensuring you get the highest quality replacement parts for smooth operation. Shopping Bad Boy Parts Online gives you quick access to parts, and with Free Shipping On Orders Over $100, you can save more. Maintain the precision and performance of your 2018 ZT Elite Deck Height Control Assembly with top-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 ZT Elite - Deck Height Control Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
11 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
15 028-0070-00 028-0070-00 - Neutral Rod
$12.48
16 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
17 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
18 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
19 035-7033-00 035-7033-00 - Actuator
$408.75
20 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
21 044-2004-00 044-2004-00 - Bow Pin
$2.99
22 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
23 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
24 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
