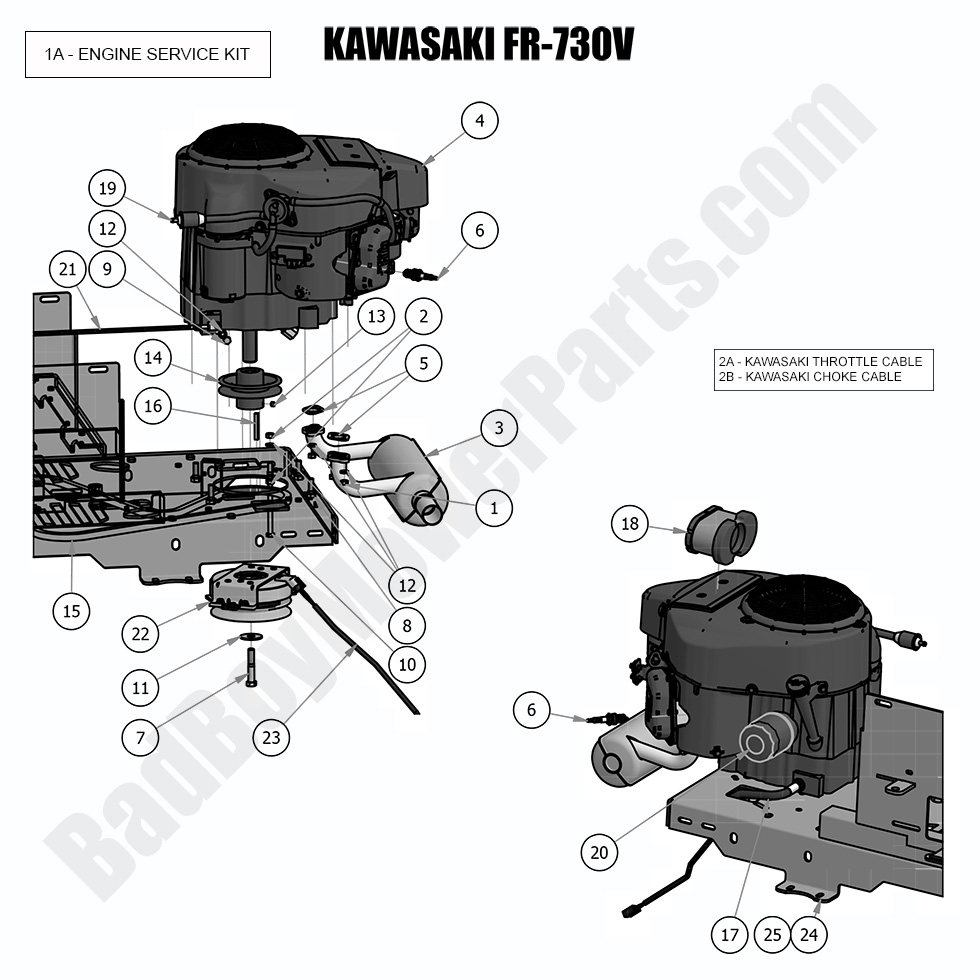

2018 ZT Elite - Engine - Kawasaki FR730

2018 ZT Elite - Engine - Kawasaki FR730

The 2018 ZT Elite Engine - Kawasaki FR730 is built for powerful performance and reliability. If you need to replace or maintain your engine, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts designed specifically for the Kawasaki FR730 engine. Our detailed Bad Boy Mower Part Diagrams make it easy to identify the engine components you need, including filters, spark plugs, carburetors, and more. We stock a full range of Bad Boy Lawn Mower Parts to keep your engine running at peak efficiency. By shopping Bad Boy Parts Online, you gain access to premium engine parts that are delivered straight to your door. Plus, with Free Shipping On Orders Over $100, you save more on every purchase. Keep your 2018 ZT Elite Engine - Kawasaki FR730 in top condition with the best parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 ZT Elite - Engine - Kawasaki FR730
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
4 015-0090-00 015-0090-00 - FR730V-S16 Kawasaki Engine 1.125" Shaft for ZT
$2299.99
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
11 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
14 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
17 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
18 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
19 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
20 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
21 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
22 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
23 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
24 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
25 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
