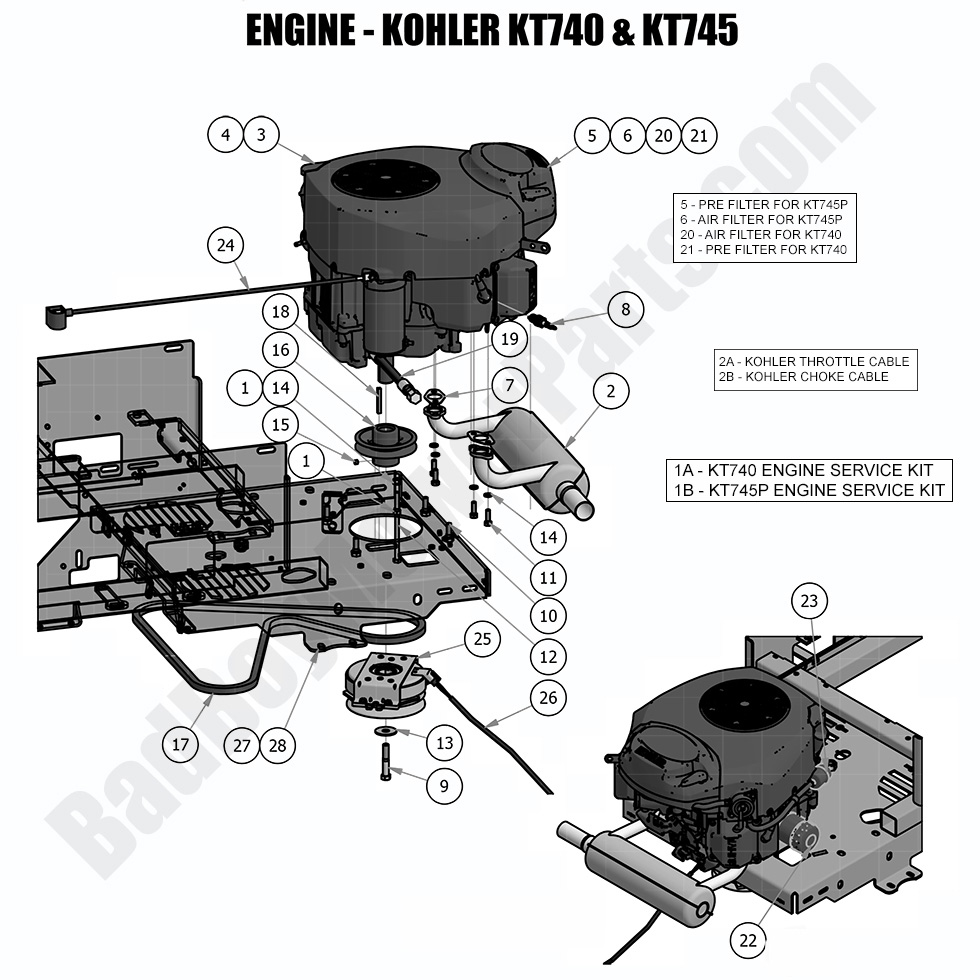

2018 ZT Elite - Engine - Kohler KT740 & KT745

2018 ZT Elite - Engine - Kohler KT740 & KT745

The 2018 ZT Elite Engine - Kohler KT740 & KT745 provides powerful, reliable performance for your mower. If you're in need of parts for these engines, BadBoyMowerParts.com is the place to shop. We carry a complete range of Bad Boy Mower Parts to ensure your engine runs at its best. Our Bad Boy Mower Part Diagrams help you quickly locate the correct components for the Kohler KT740 & KT745, including air filters, spark plugs, and gaskets. We offer a wide selection of Bad Boy Lawn Mower Parts, all designed for durability and efficiency. Shopping Bad Boy Parts Online allows you to find the parts you need easily and have them delivered directly to your door. Plus, with Free Shipping On Orders Over $100, you can save on your purchases. Keep your 2018 ZT Elite Engine - Kohler KT740 & KT745 in top working condition with quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 ZT Elite - Engine - Kohler KT740 & KT745
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1B 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48

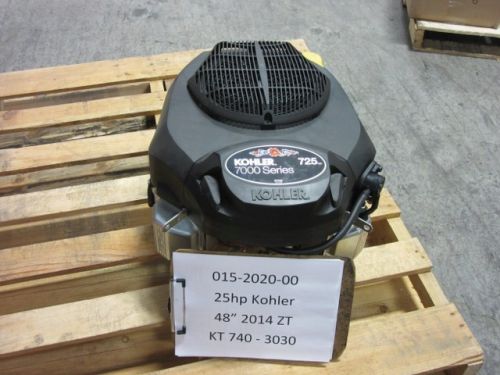

3 015-2020-00 015-2020-00 - 25hp Kohler-48" 2014-2022 ZT KT740-3030 (obsolete)
use part #015-2018-00
$2399.99
4 015-2026-00 015-2026-00 - 26hp Kohler-2018-2022 ZT-KT745-3088 (obsolete)
use part #015-2018-00
$2399.99
5 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
6 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
7 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
8 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
9 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
13 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
17 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
18 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
19 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
20 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
21 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
22 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
26 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
27 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
28 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
