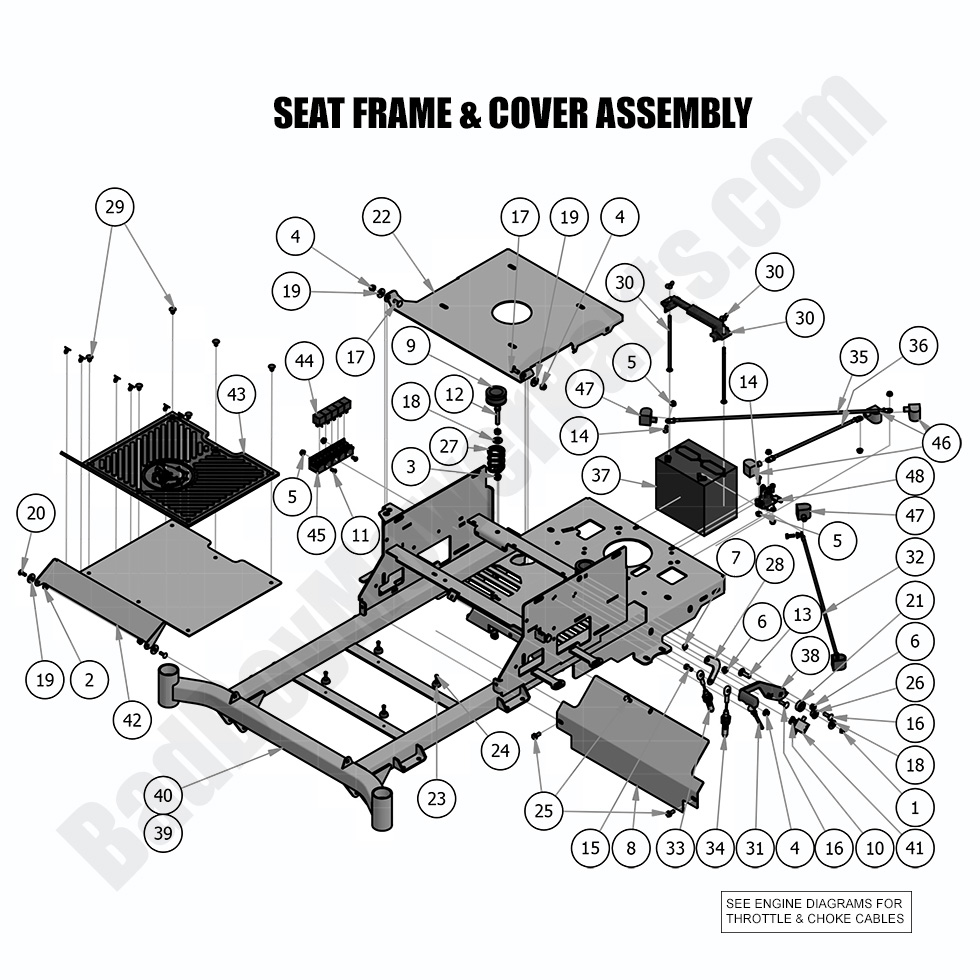

2018 ZT Elite - Seat Frame and Cover Assembly

2018 ZT Elite - Seat Frame and Cover Assembly

The 2018 ZT Elite Seat Frame and Cover Assembly provides both structure and comfort to the operator. If you're in need of replacement or repair parts for the seat frame and cover, BadBoyMowerParts.com has a variety of Bad Boy Mower Parts in stock. Our Bad Boy Mower Part Diagrams make it easy to find the specific seat components you need for your 2018 ZT Elite, whether it's a new seat frame, cover, or mounting hardware. We stock a full selection of Bad Boy Lawn Mower Parts designed to enhance comfort and durability. By shopping Bad Boy Parts Online, you can quickly order the parts you need and enjoy Free Shipping On Orders Over $100, making it a cost-effective solution for replacing or upgrading your seat assembly. Keep your 2018 ZT Elite Seat Frame and Cover Assembly in top condition with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 ZT Elite - Seat Frame and Cover Assembly
  Position Number SKU Product Title Price

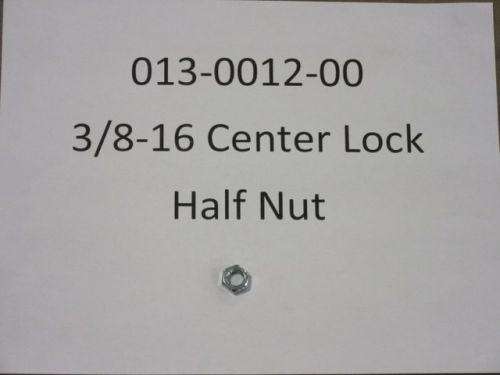

1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
2 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
6 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
7 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99

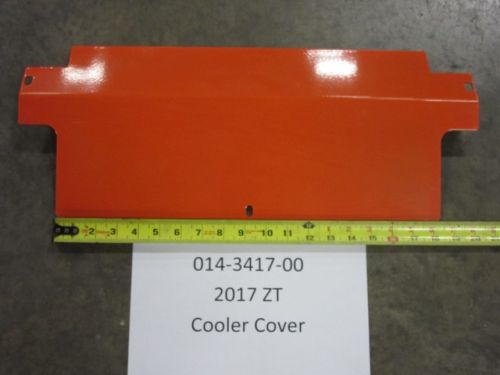

8 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
9 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
10 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
11 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
12 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
15 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
16 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
17 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
18 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
19 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
20 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99

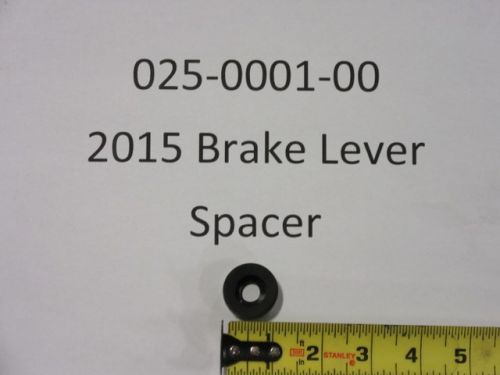

21 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
22 026-1016-00 026-1016-00 - Seat Plate
$102.11
23 029-4010-00 029-4010-00 - Button Bumper
$2.99
24 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99

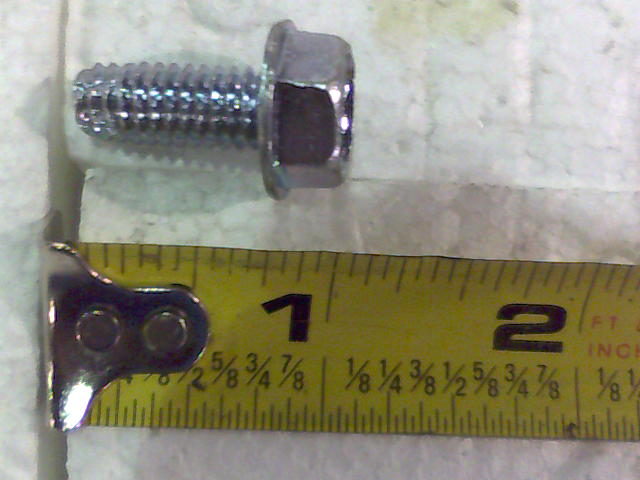

25 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99

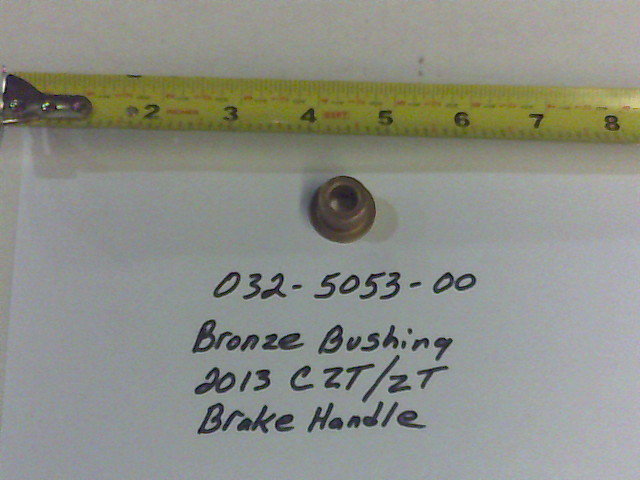

26 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99

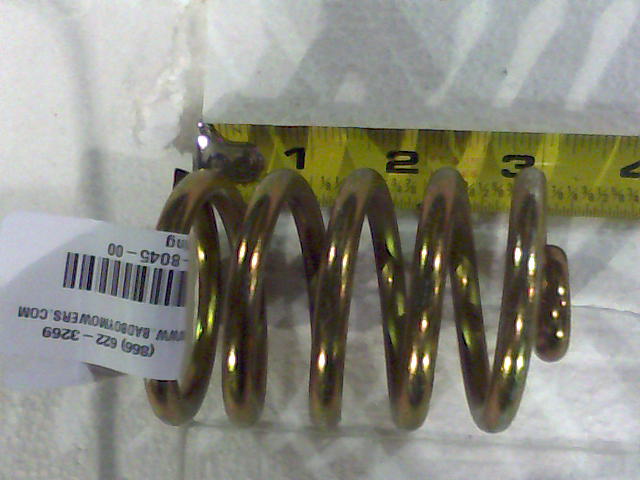

27 034-8045-00 034-8045-00 - Seat Spring
$20.49

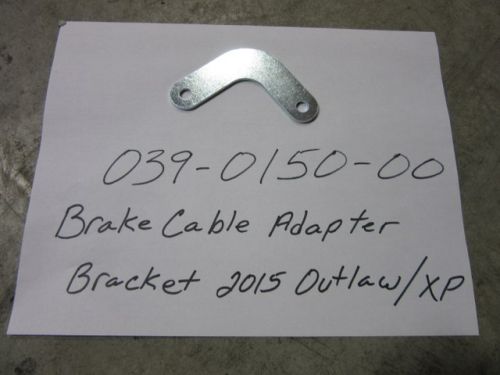

28 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72

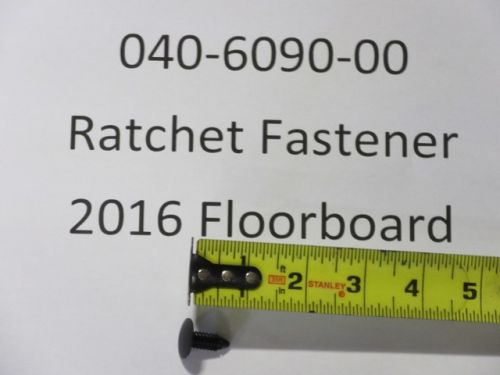

29 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99

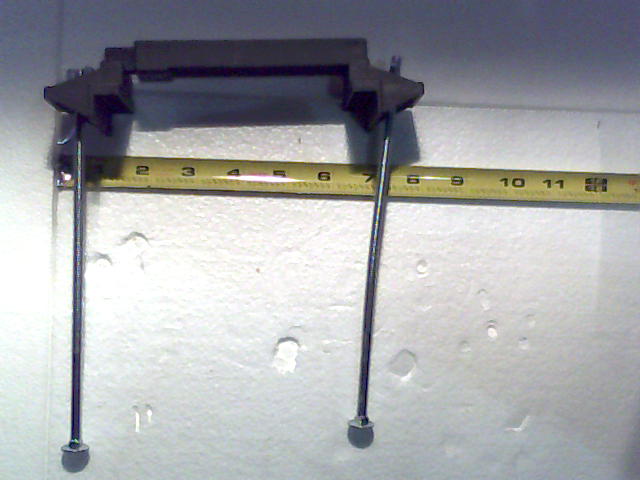

30 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49

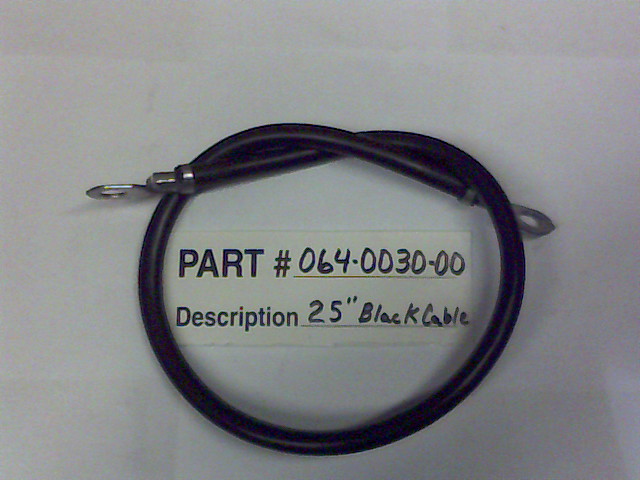

32 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72

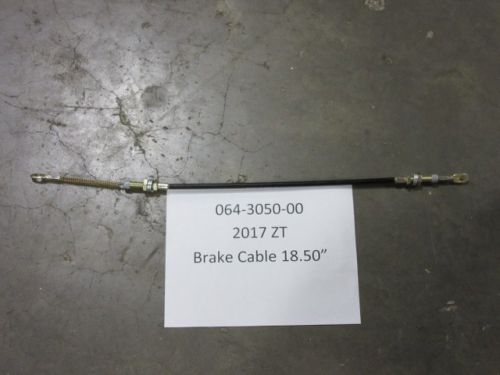

33 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47

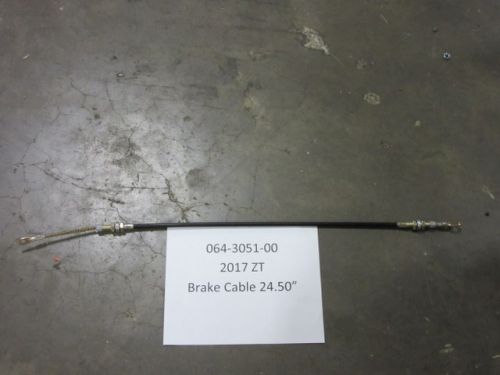

34 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
35 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85

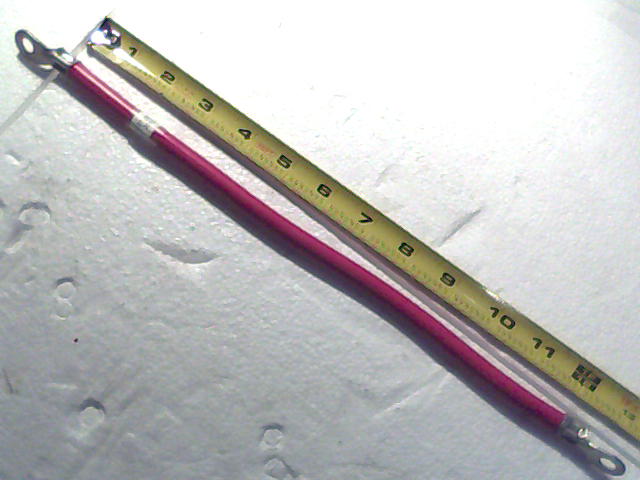

36 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16

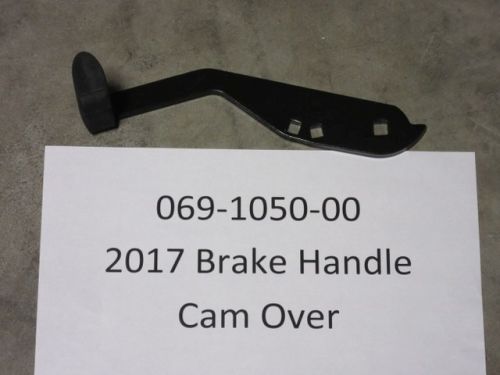

38 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45

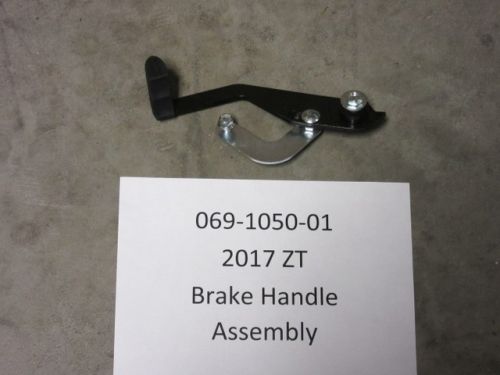

38a 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39

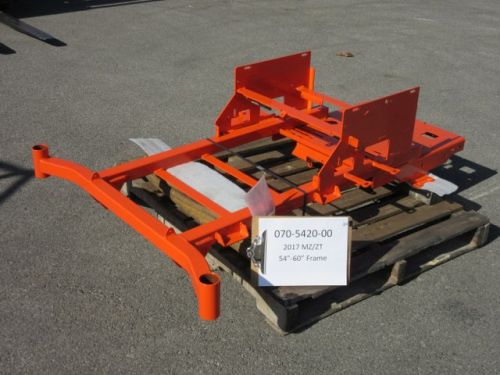

39 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
40 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
41 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99

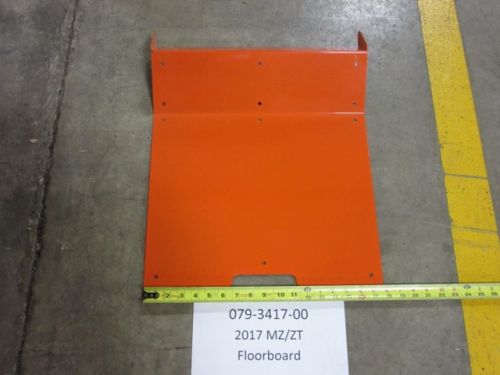

42 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95

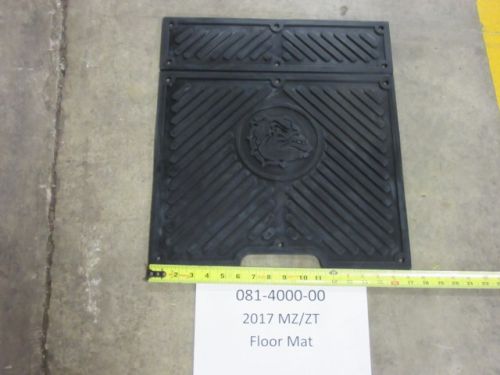

43 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48

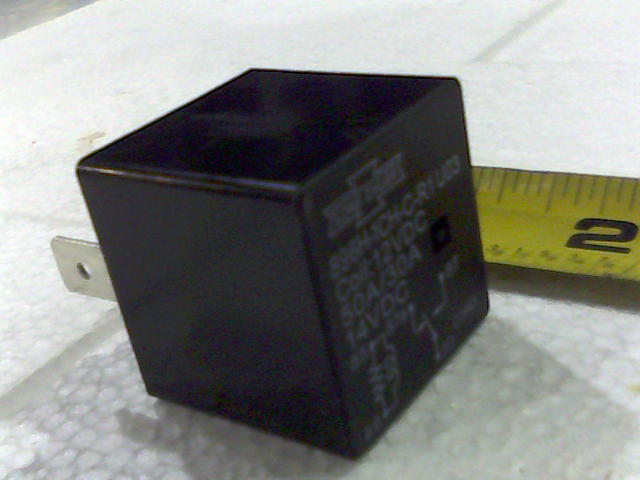

44 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97

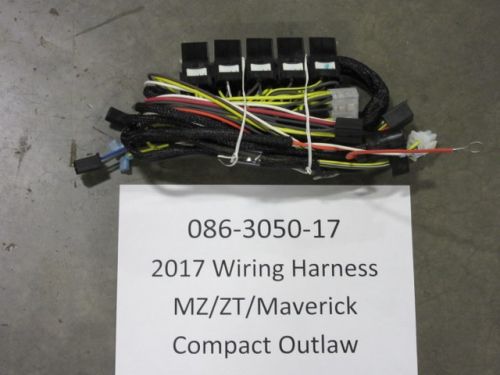

45 086-3050-17 086-3050-17 - 2010-2018 CZT/ZT/Maverick/Comp. Outlaw & 2016-2018 MZ/MZ Magnum Complete Harness
$299.99

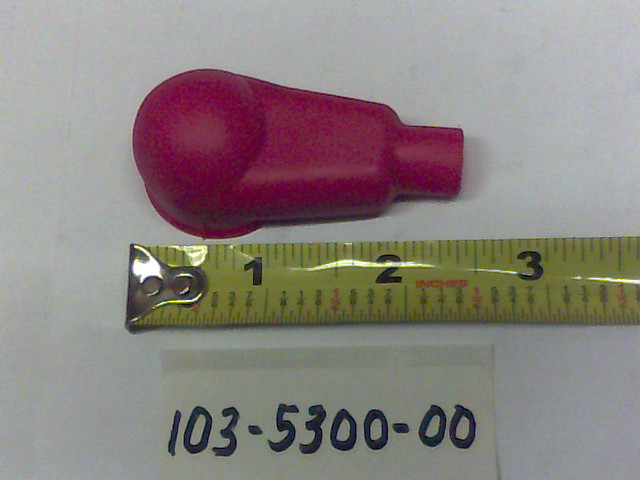

46 103-5300-00 103-5300-00 - Red Lug Boot
$5.82

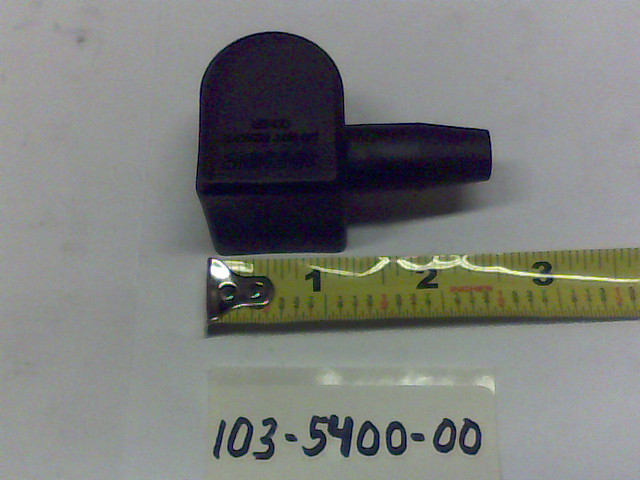

47 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
48 108-0001-00 108-0001-00 - Solenoid
$29.41
