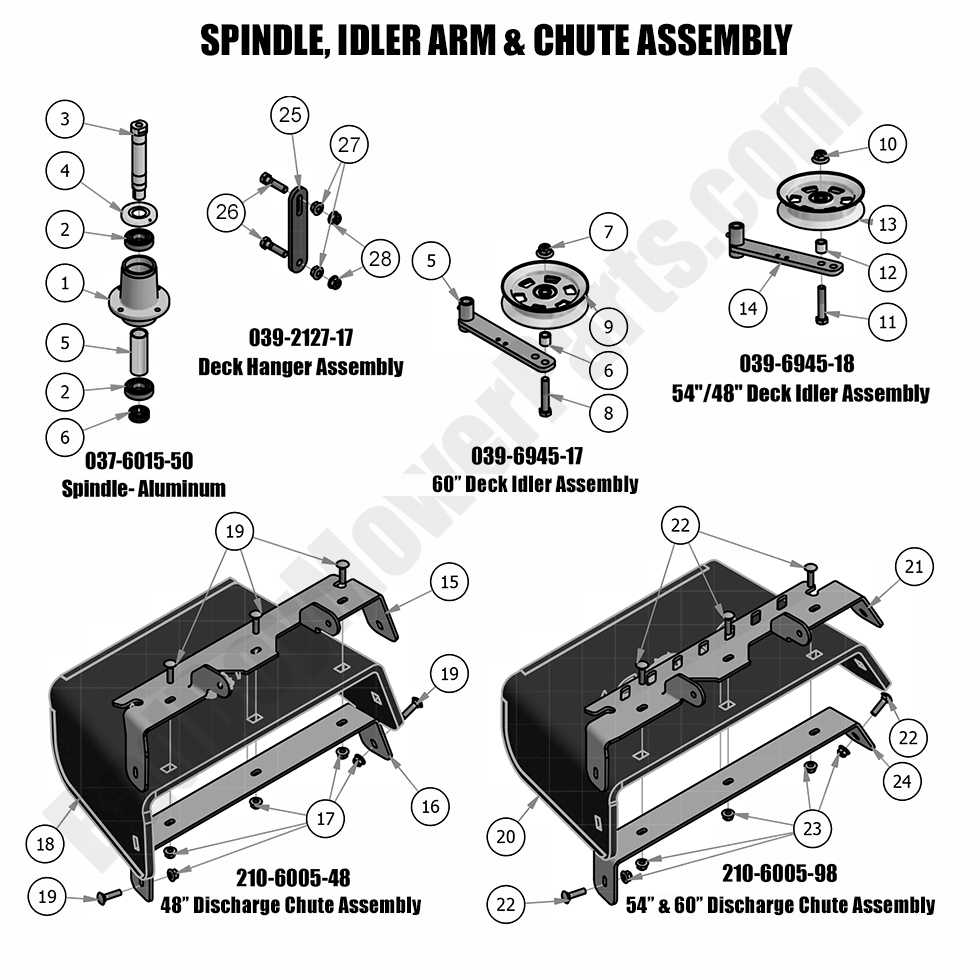

2018 ZT Elite - Spindle, Idler Arm, Chute Assembly

2018 ZT Elite - Spindle, Idler Arm, Chute Assembly

The 2018 ZT Elite Spindle, Idler Arm, Chute Assembly is essential for smooth and efficient cutting. If you're experiencing issues with these parts, BadBoyMowerParts.com carries a wide range of Bad Boy Mower Parts to keep your mower functioning like new. Our Bad Boy Mower Part Diagrams help you identify the correct spindle, idler arm, and chute components for your 2018 ZT Elite, ensuring an accurate repair. We offer a variety of Bad Boy Lawn Mower Parts, including durable spindles, pulleys, and chutes, to maintain your mower’s cutting performance. Shopping Bad Boy Parts Online gives you the convenience of ordering the parts you need from the comfort of your home, and with Free Shipping On Orders Over $100, you can save money on your purchase. Keep your 2018 ZT Elite Spindle, Idler Arm, Chute Assembly in optimal condition with premium parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 ZT Elite - Spindle, Idler Arm, Chute Assembly
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
6 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
7.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
9 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
10.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
15 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
16 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
18 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
19 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
20.0 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
21 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
24 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
25.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
25 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
26 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
