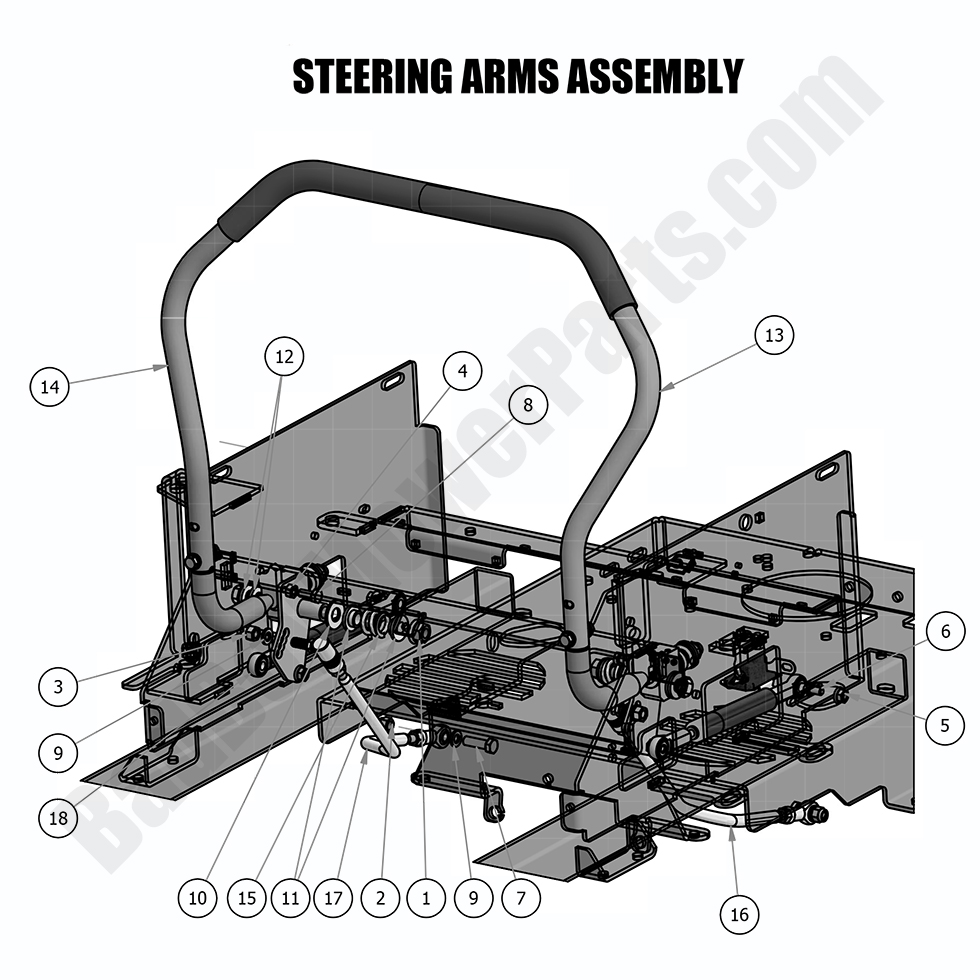

2018 ZT Elite - Steering Arm Assembly

2018 ZT Elite - Steering Arm Assembly

The 2018 ZT Elite Steering Arm Assembly is crucial for ensuring that your mower responds to steering inputs with precision. If you're in need of repairs or upgrades, BadBoyMowerParts.com has a wide selection of Bad Boy Mower Parts designed for the 2018 ZT Elite. Our detailed Bad Boy Mower Part Diagrams help you identify the exact parts needed for the steering arm assembly, such as linkages, bearings, and the steering arm itself. With Bad Boy Lawn Mower Parts from BadBoyMowerParts.com, you can easily restore your mower's steering system to like-new performance. By shopping Bad Boy Parts Online, you can quickly place an order and have it delivered directly to your doorstep. Plus, enjoy the benefit of Free Shipping On Orders Over $100, saving you money with every purchase. Ensure your 2018 ZT Elite Steering Arm Assembly is working flawlessly with high-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2018 ZT Elite - Steering Arm Assembly
  Position Number SKU Product Title Price
1 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 031-0017-01 031-0017-01 - Left Steering Arm Assembly (See Models Used On for Details)
$145.99
14 031-0018-01 031-0018-01 - Right Steering Arm Assembly (See Models Used On for Details)
$145.99
15 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
16 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
17 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
18 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
