2018 ZT Elite - Transaxle Assembly

2018 ZT Elite - Transaxle Assembly

The 2018 ZT Elite Transaxle Assembly is one of the most important components for the mower’s drive system, ensuring efficient power transfer to the wheels. If you need to replace or repair your transaxle, BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts specifically designed for the 2018 ZT Elite. With our Bad Boy Mower Part Diagrams, you can easily identify the parts you need, including transaxles, gears, and seals. We carry a variety of Bad Boy Lawn Mower Parts that are built to last, ensuring the continued smooth operation of your mower. Shopping Bad Boy Parts Online makes it easy to find the parts you need and have them delivered right to your door. Plus, enjoy Free Shipping On Orders Over $100 with every purchase. Keep your 2018 ZT Elite Transaxle Assembly in optimal working condition with reliable parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

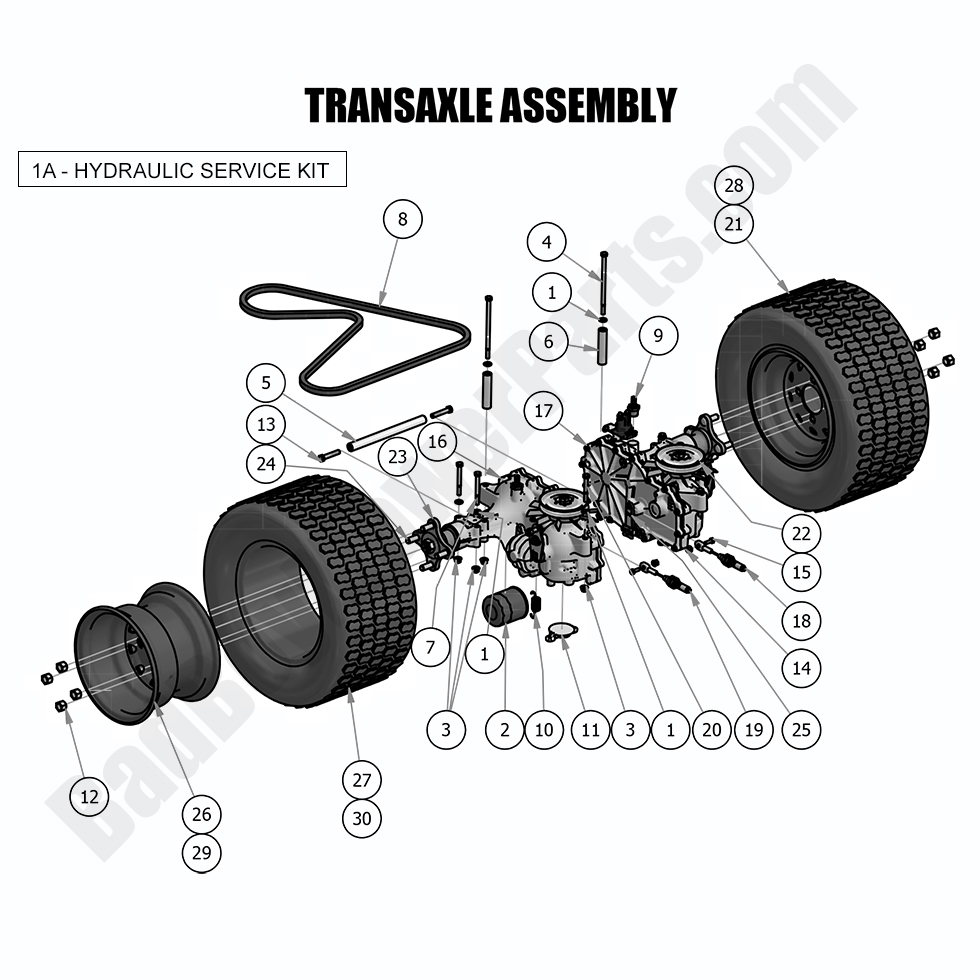

2018 ZT Elite - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
2 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
5 025-0017-00 025-0017-00 - Transaxle Spacer (See Models Used On For Detail)
$14.04
6 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
9 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
10 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
11 050-2071-00 050-2071-00 - ZT Transaxle Charge Plate
$98.43
12 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
13 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
14 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99

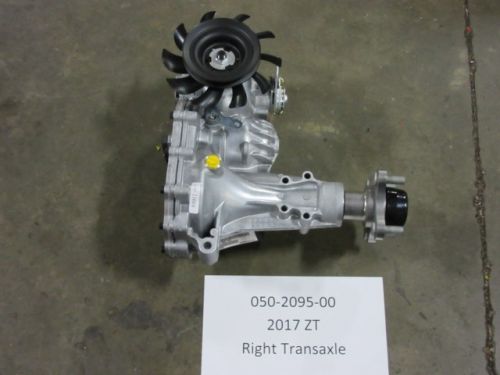

16 050-2095-00 050-2095-00 - 2017-2021 Right ZT Elite Transaxle & 36" 2020-2021 Revolt (obsolete)
use part #050-2095-01
$729.99

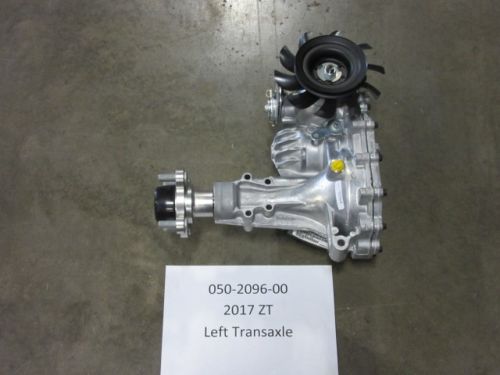

17 050-2096-00 050-2096-00 - 2017-2021 Left ZT Elite Transaxle & 36" 2020-2021 Revolt (obsolete)
use part #050-2096-01
$729.99
18 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
19 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99

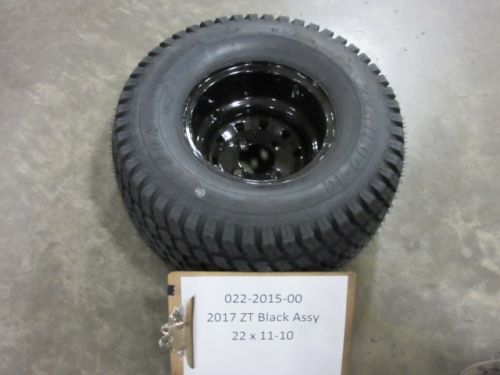

21 022-2015-00 022-2015-00 - ZT Black Assy 22x11-10 (See Models Used On For Details)
$320.99
22 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
23 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
24 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
25 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
26 022-2015-50 022-2015-50 - ZT Wheel for 54" and 60" decks, fits 022-2015-00 & 022-2215-00
$114.99

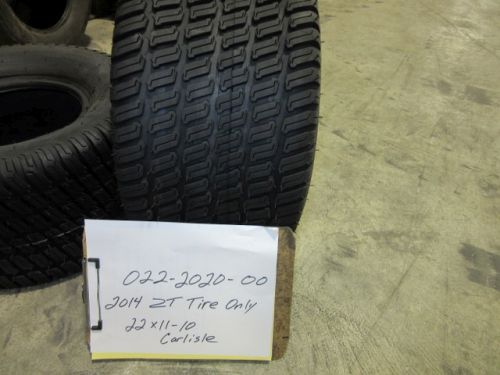

27 022-2020-00 022-2020-00 - ZT Tire Only 22x11-10 Carlisle
$289.99

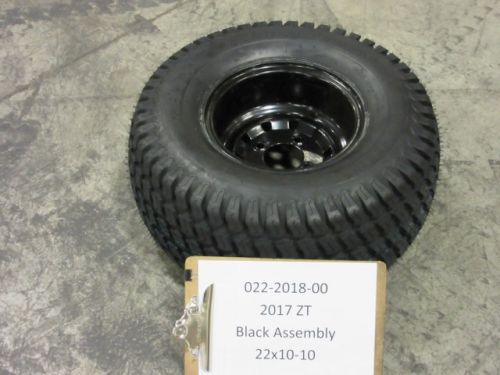

28 022-2018-00 022-2018-00 - ZT Black Assy 22x10-10 48" Deck (See Models Used On For Details)
$320.99

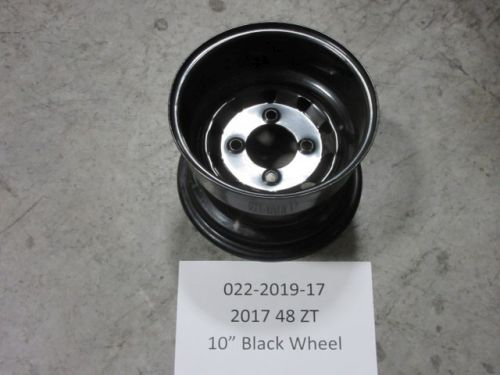

29 022-2019-17 022-2019-17 - 10" Black Wheel for 48" ZT
$99.50

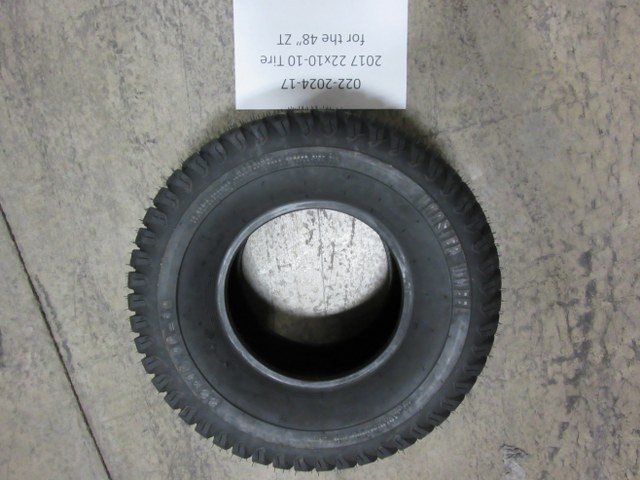

30 022-2024-17 022-2024-17 - 22x10-10 Tire for the 48" ZT fits the 022-2018-00
$175.99
