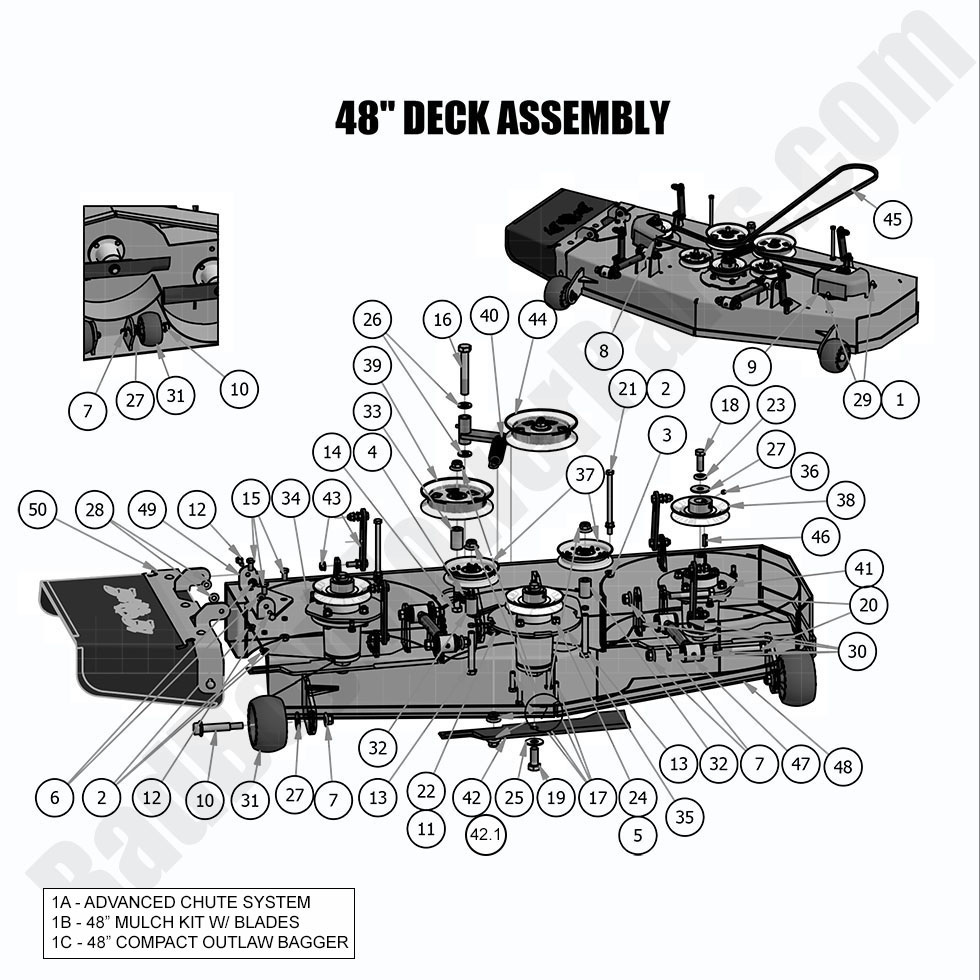

2019 Compact Outlaw - 48" Deck Assembly

2019 Compact Outlaw - 48" Deck Assembly

The 2019 Compact Outlaw 48" Deck Assembly is built for precision mowing and efficient grass-cutting performance. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including replacement spindles, deck belts, high-strength blades, and pulleys to ensure smooth operation. Our Bad Boy Lawn Mower Parts selection ensures you receive factory-grade replacements for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for fast installation. A well-maintained deck assembly ensures uniform cutting, reduces wear on moving parts, and prevents downtime. We offer Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw 48" Deck Assembly is now more affordable. Order today for superior cutting precision and long-lasting durability.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 088-1810-00 088-1810-00 - 48 Compact Outlaw 2 Bagger Paddle (2017-2020 only)
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
29 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
30 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
35 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
36 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
37 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
38 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
39 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
40 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
41 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
42.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
42 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
42 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
43 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
44 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
48 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
49 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
50 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
