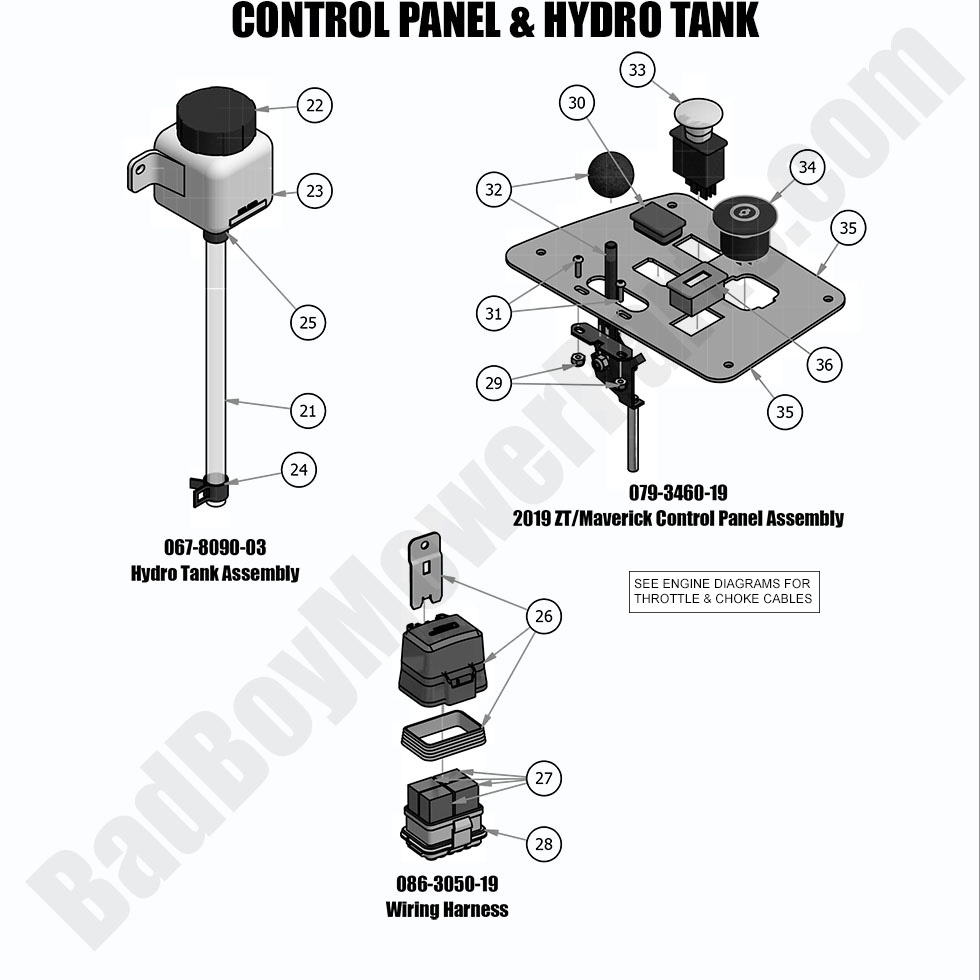

2019 Compact Outlaw - Control Panel & Hydro Tank

2019 Compact Outlaw - Control Panel & Hydro Tank

The 2019 Compact Outlaw Control Panel & Hydro Tank system plays a crucial role in mower operation, ensuring smooth hydraulic performance and easy control access. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including control switches, hydraulic tanks, fluid reservoirs, and mounting hardware for superior functionality. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct control panel and hydro tank components for easy installation. Regular maintenance of your control system enhances hydraulic efficiency, prevents leaks, and extends mower lifespan. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, keeping your 2019 Compact Outlaw Control Panel & Hydro Tank in top condition is now more budget-friendly. Order today for optimal mower operation.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Control Panel & Hydro Tank
  Position Number SKU Product Title Price
21.0 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
21 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
22 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
23 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
24 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
25 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
26.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
26 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
27 086-1202-19 086-1202-19 - Relay Terminal
$24.97
29.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
29 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
30 018-1040-00 018-1040-00 - Light Plug
$2.99
31 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
33 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
34 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
35 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
36 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
