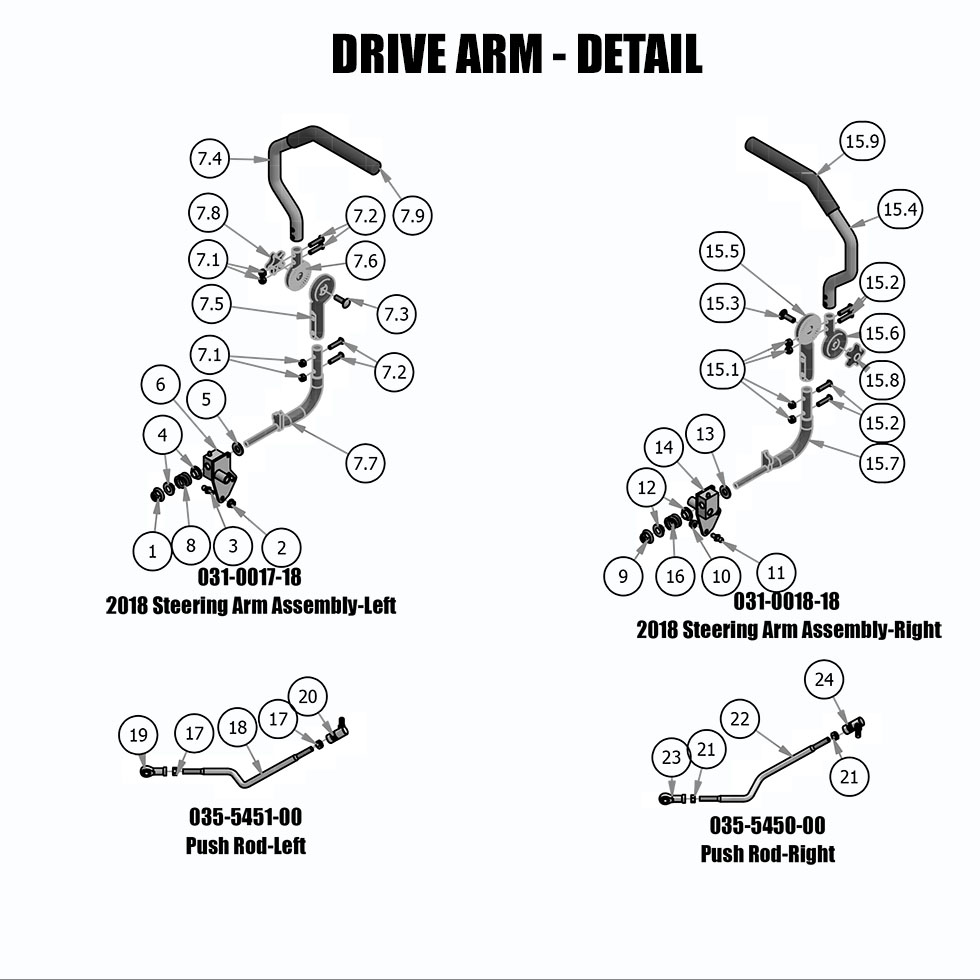

2019 Compact Outlaw - Drive Arm - Detail

2019 Compact Outlaw - Drive Arm - Detail

The 2019 Compact Outlaw Drive Arm - Detail system is crucial for smooth mower operation, power transfer, and steering control. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including drive arms, pivot brackets, hydraulic fittings, and mounting hardware to ensure peak performance. Our Bad Boy Lawn Mower Parts inventory includes factory-grade replacements for seamless repairs. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for easy installation. A well-maintained drive arm system improves maneuverability, reduces strain on hydraulic components, and extends mower lifespan. We stock Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw Drive Arm - Detail is now more affordable. Order today to keep your mower operating at maximum efficiency.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Drive Arm - Detail
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
3 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
4 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7.0 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
7.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
7.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
7.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
7.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
7.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
7.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
7.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
7.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
14 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
15.0 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
15.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
15.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
15.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
17.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
17 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
20 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
21.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
