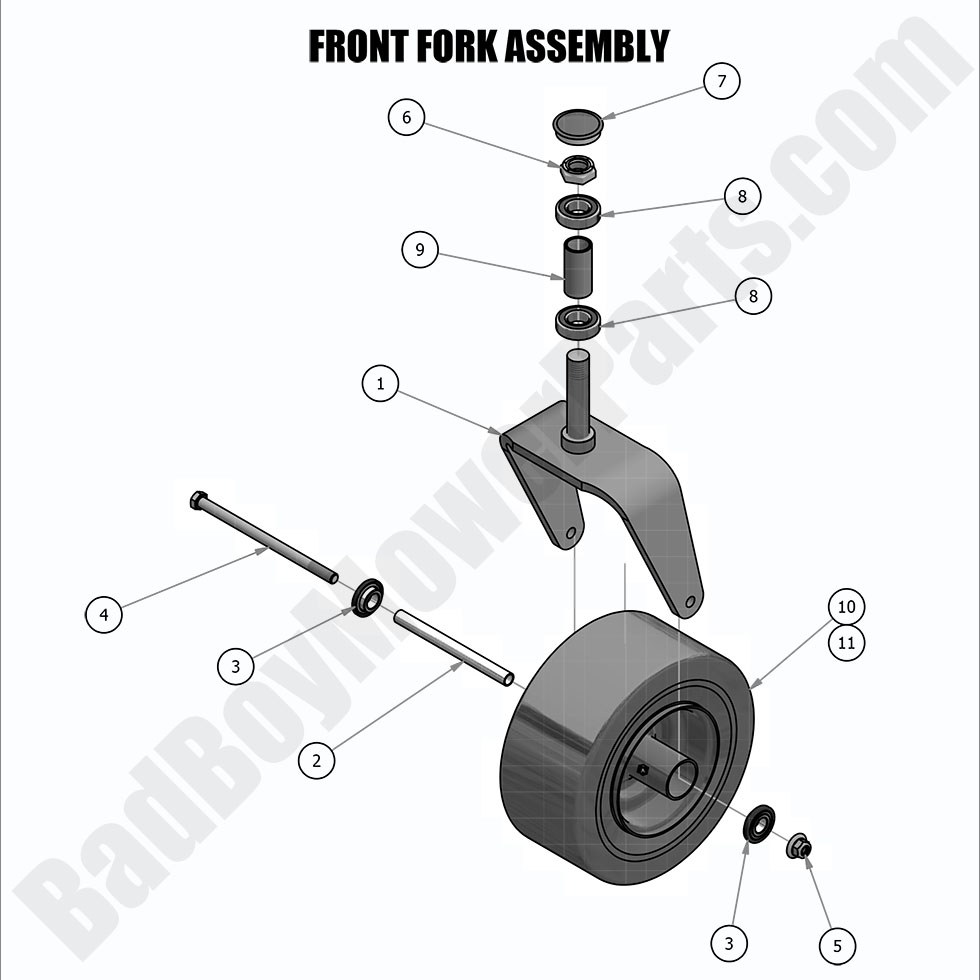

2019 Compact Outlaw - Front Fork Assembly

2019 Compact Outlaw - Front Fork Assembly

The 2019 Compact Outlaw Front Fork Assembly plays a crucial role in ensuring stability and maneuverability. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including front fork assemblies, caster wheels, bearings, and mounting brackets to maintain smooth steering. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary front fork components for seamless installation. A properly maintained front fork system improves handling, reduces vibrations, and enhances overall mower stability. We offer Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw Front Fork Assembly is now more cost-effective. Order today for enhanced maneuverability and a smoother mowing experience.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
2 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
3 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
4 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
7 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
8 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$112.99
11 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
