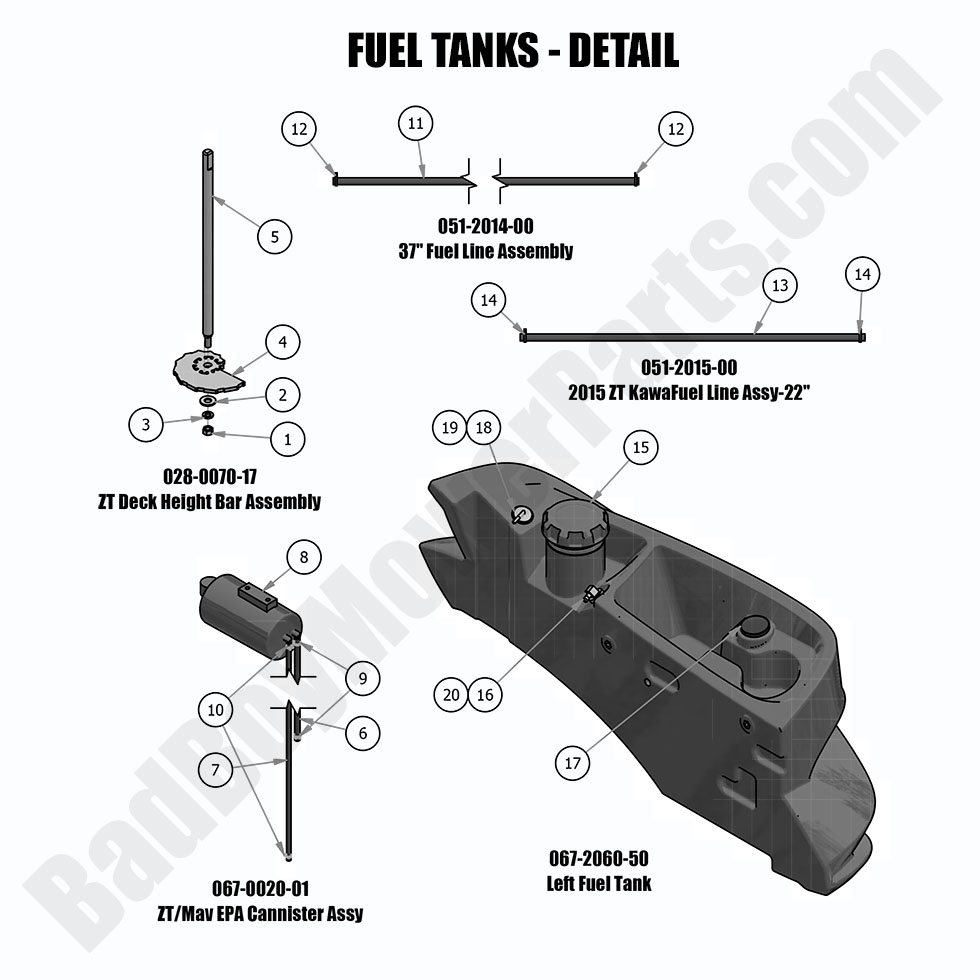

2019 Compact Outlaw - Fuel Tanks - Detail

2019 Compact Outlaw - Fuel Tanks - Detail

The 2019 Compact Outlaw Fuel Tanks - Detail system is essential for proper fuel storage and engine performance. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including fuel tanks, caps, hoses, and mounting hardware to ensure durability and safety. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary fuel tank components for seamless installation. A properly maintained fuel tank system prevents leaks, ensures clean fuel delivery, and enhances efficiency. We stock Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw Fuel Tanks - Detail system is now more budget-friendly. Order today to keep your fuel system secure and your mower running efficiently.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Fuel Tanks - Detail
  Position Number SKU Product Title Price
1.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
6.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
6 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48

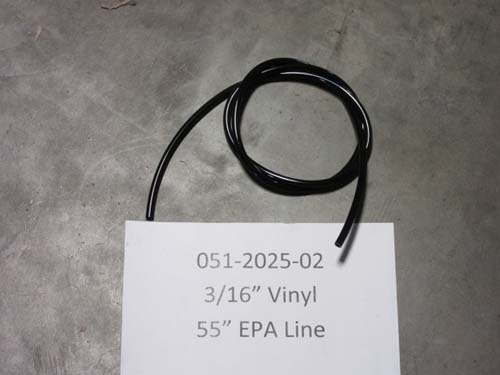

7 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48

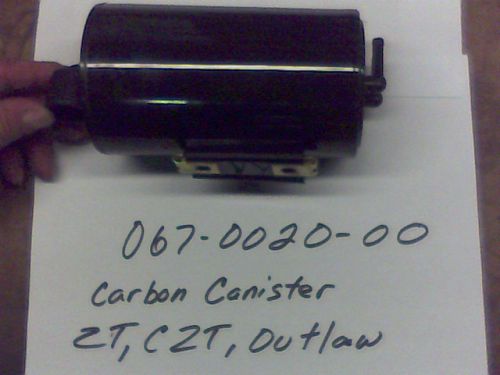

8 067-0020-00 067-0020-00 - Carbon Canister
$62.40
9 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99

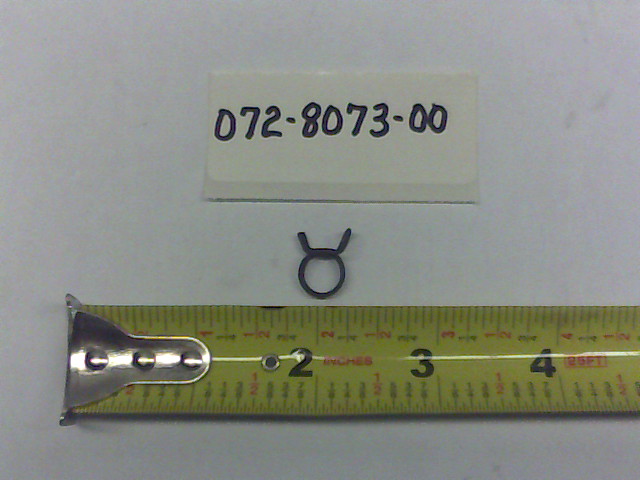

10 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
11.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
11 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
12 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
13.0 051-2015-00 051-2015-00 - Fuel Line Assy. 22"
$30.55
13 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
15.0 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
15 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
16 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
17 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
19 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
20 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
