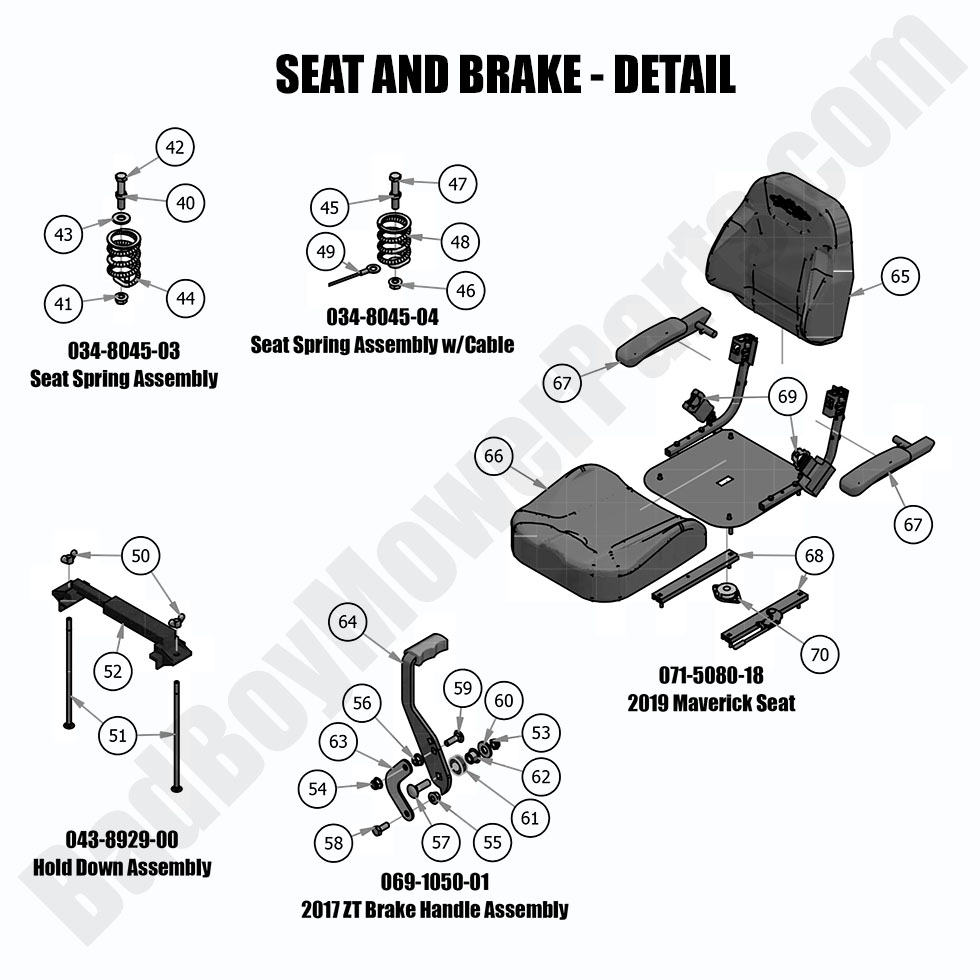

2019 Compact Outlaw - Seat and Brake - Detail

2019 Compact Outlaw - Seat and Brake - Detail

The 2019 Compact Outlaw Seat and Brake - Detail system is crucial for operator comfort and safety. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including replacement seats, brake pedals, hydraulic lines, and securing hardware for maximum performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements that improve stability and control. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct seat and brake components for fast installation. A properly maintained brake system enhances stopping power, while a comfortable seat reduces operator fatigue. We stock Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, keeping your 2019 Compact Outlaw Seat and Brake - Detail system in top condition is now more cost-effective. Order today for improved safety and comfort.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Seat and Brake - Detail
  Position Number SKU Product Title Price
40.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
40 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
41 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
42 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
43 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 034-8045-00 034-8045-00 - Seat Spring
$20.49
45.0 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
49 064-8081-00 064-8081-00 - Seat Cable
$15.60
50.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
50 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
51 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
53.0 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
53 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
54 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
55 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
56 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
57 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
58 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
59 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
61 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
62 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
63 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
64 069-1050-00 069-1050-00 - Brake Handle Cam Over (See Models Used On For Details)
$18.45
65.0 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99
65 071-2052-00 071-2052-00 - Back Cover For 071-5080-17
$132.68
66 071-2053-00 071-2053-00 - Maverick Seat Cover 071-5080-17
$149.99
67 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
68 071-5015-00 071-5015-00 - Seat Rails
$93.69
69 071-5083-00 071-5083-00 - Seat Belt (See Models Used On For Details)
$106.14
