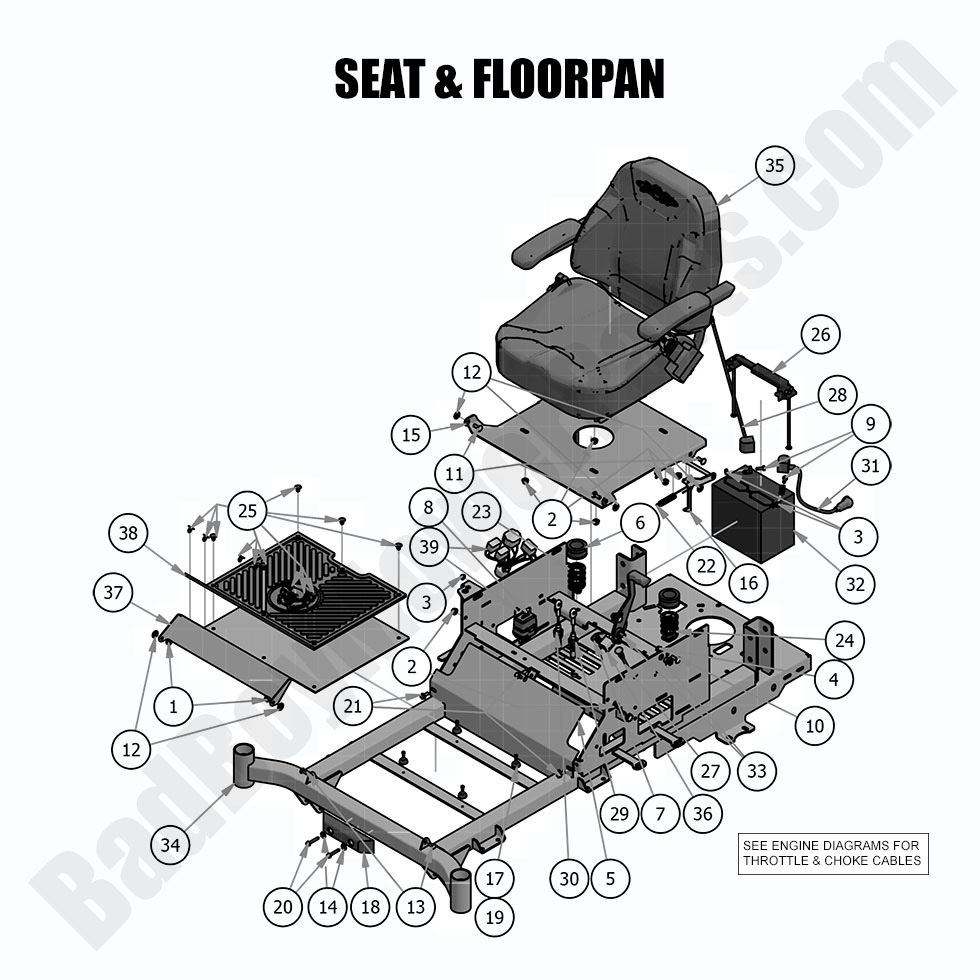

2019 Compact Outlaw - Seat and Floorpan

2019 Compact Outlaw - Seat and Floorpan

The 2019 Compact Outlaw Seat and Floorpan assembly provides the foundation for operator comfort and mower stability. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including replacement seats, seat brackets, floor mats, and mounting hardware for durability. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary seat and floorpan components for easy installation. A well-maintained seat and floorpan enhance operator comfort, reduce vibration, and improve mower control. We stock Bad Boy Parts Online for quick replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw Seat and Floorpan is now more budget-friendly. Order today for a comfortable and efficient mowing experience.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Seat and Floorpan
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 014-3417-00 014-3417-00 - 2017-2021 ZT Elite & 2018-2020 Compact Outlaw Cooler Cover
$76.50
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
8 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 026-1016-00 026-1016-00 - Seat Plate
$102.11
16 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
17 029-4010-00 029-4010-00 - Button Bumper
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
19 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
20 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
21 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
22 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
23 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
24 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
25 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
26 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
28 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
29 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
30 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
31 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
33 069-1050-01 069-1050-01 - Brake Handle Assembly
$21.39
34 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
35 071-5080-18 071-5080-18 - 2019-2020 Maverick Seat/Compact Outlaw Seat
$599.99
36 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
37 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
38 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
39 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
