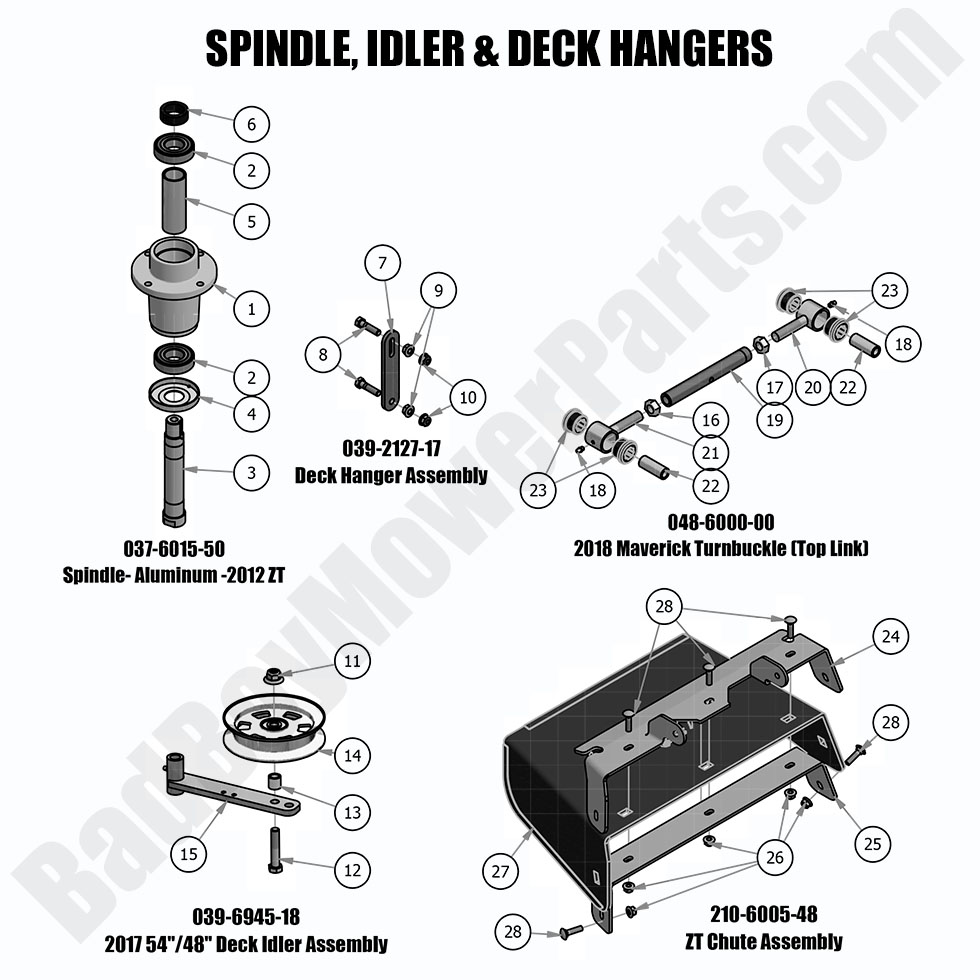

2019 Compact Outlaw - Spindle, Idler & Deck Hangers

2019 Compact Outlaw - Spindle, Idler & Deck Hangers

The 2019 Compact Outlaw Spindle, Idler & Deck Hangers system ensures smooth blade rotation and efficient belt operation. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including deck spindles, idler pulleys, hangers, and securing hardware to keep your mower deck in top condition. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct spindle, idler, and deck hanger components for seamless installation. Proper maintenance prevents belt slippage, enhances cutting precision, and extends component lifespan. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, keeping your 2019 Compact Outlaw Spindle, Idler & Deck Hangers system in peak condition is now more affordable. Order today for superior mowing performance.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Spindle, Idler & Deck Hangers
  Position Number SKU Product Title Price
1.0 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
7.0 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
7 039-2127-00 039-2127-00 - Deck Hanger (See Models Used On For Details) (obsolete)
use part #039-2127-17
$15.60
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11.0 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
13 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
14 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
16.0 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
16 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
17 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
18 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
19 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32
20 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32
21 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32
22 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
23 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
24.0 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
24 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
25 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
26 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
27 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
