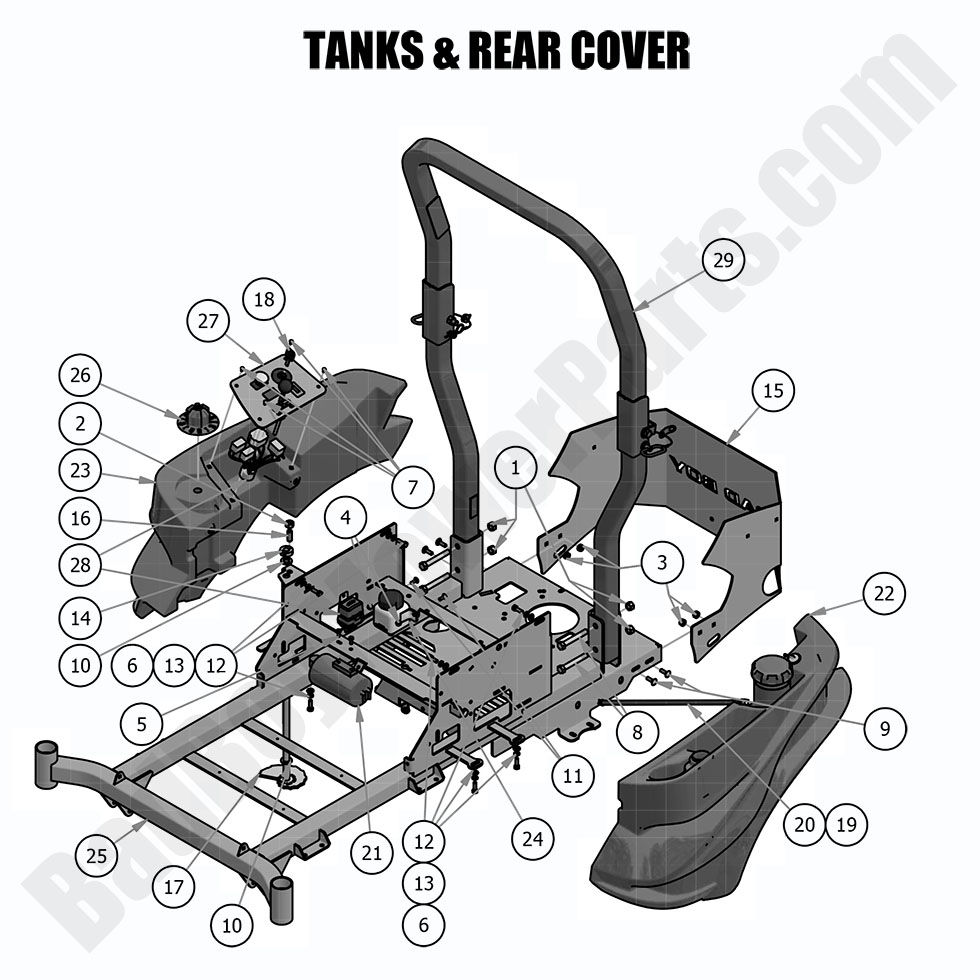

2019 Compact Outlaw - Tanks and Rear Cover

2019 Compact Outlaw - Tanks and Rear Cover

The 2019 Compact Outlaw Tanks and Rear Cover assembly provides essential fuel storage and component protection. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including fuel tanks, caps, hoses, and rear covers to ensure durability and efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for seamless installation. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary tank and rear cover components for easy installation. A properly maintained fuel system prevents leaks, enhances engine performance, and extends mower lifespan. We stock Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw Tanks and Rear Cover is now more cost-effective. Order today for secure fuel storage and reliable mower operation.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Tanks and Rear Cover
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
5 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
6 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
9 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
15 026-0090-00 026-0090-00 -Rear Plate (See Models Used On For Details)
$219.99
16 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
17 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
18 042-9000-00 042-9000-00 - Ignition Key
$4.06
19 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
20 051-2015-00 051-2015-00 - Fuel Line Assy. 22"
$30.55
21 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
22 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
23 067-2070-50 067-2070-50 - Right Side Console
$228.99
24 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
25 070-5500-18 070-5500-18 - 2018-2021 Compact Outlaw Frame
$1099.99
26 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
27 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
28 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
29 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
