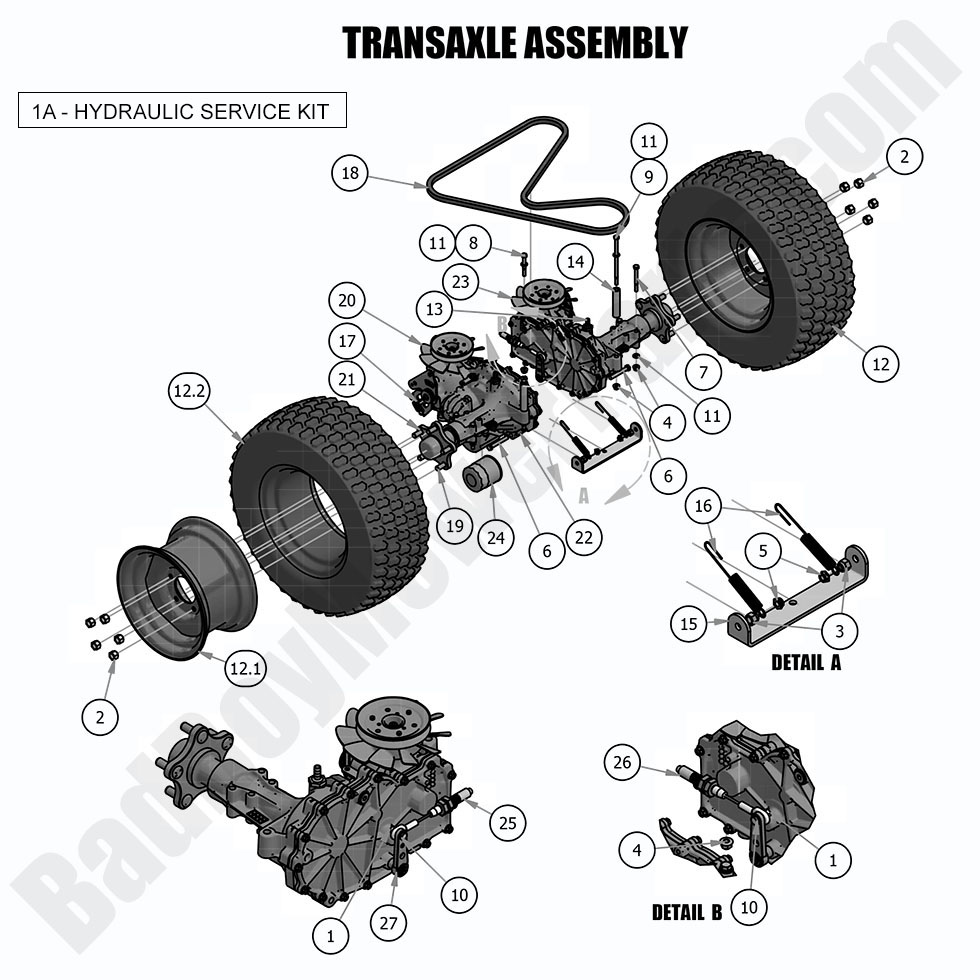

2019 Compact Outlaw - Transaxle Assembly

2019 Compact Outlaw - Transaxle Assembly

The 2019 Compact Outlaw Transaxle Assembly is essential for power distribution, smooth movement, and overall mower performance. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including transaxles, wheel hubs, bearings, and hydraulic components to ensure reliability. Our Bad Boy Lawn Mower Parts inventory offers factory-grade replacements designed for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct transaxle assembly components for seamless installation. A well-maintained transaxle system improves handling, enhances traction, and extends the lifespan of key mower components. We offer Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Compact Outlaw Transaxle Assembly is now more affordable. Order today for smooth operation and superior mower performance.

Bad Boy Mower Parts Lookup

2019 Compact Outlaw - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
6 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
8 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
9 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12.1 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
12.2 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
12 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
13 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
14 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
15 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
16 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
17 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
18 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
19 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
20 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
21 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
22 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
23 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-02
$819.99
24 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
25 064-3050-00 064-3050-00 - Brake Cable - 18.50"
$51.47
26 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
27 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
