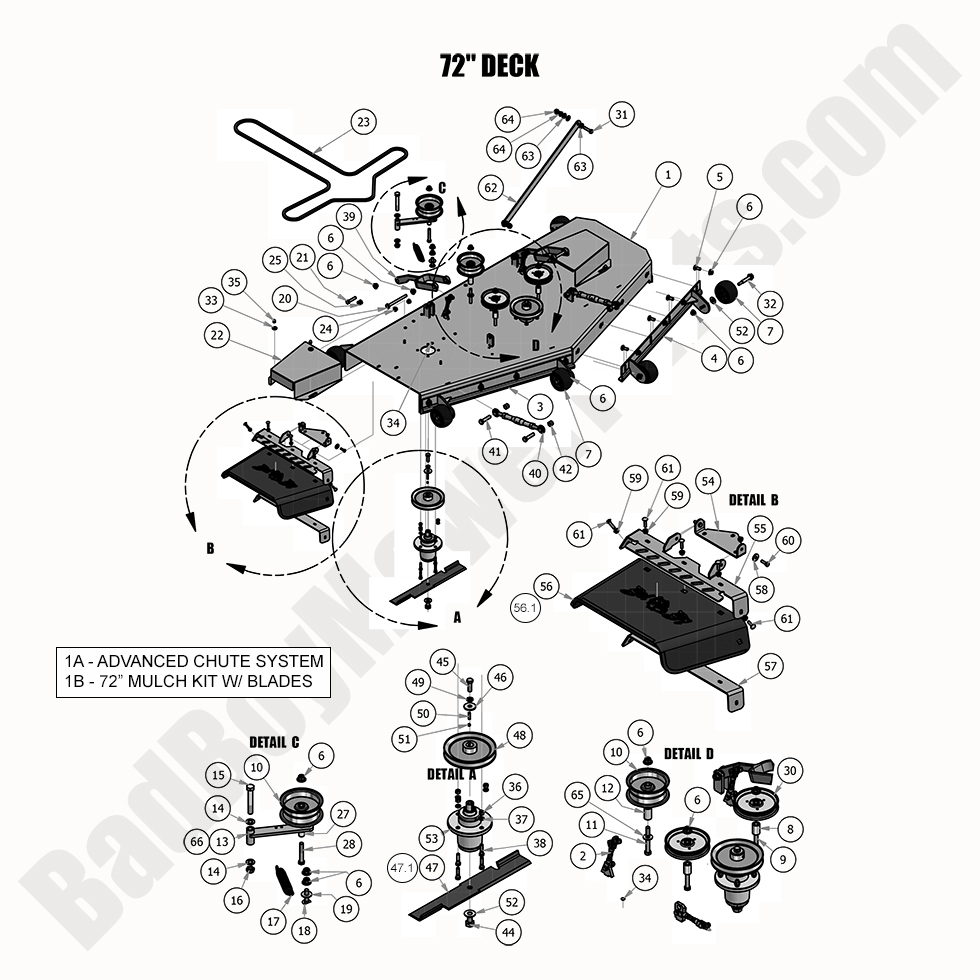

2019 Diesel - 1500cc - 72" Deck Assembly

2019 Diesel - 1500cc - 72" Deck Assembly

The 2019 Diesel - 1500cc 72" Deck Assembly is built for heavy-duty mowing and efficient grass cutting. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including replacement spindles, reinforced blades, deck belts, and idler pulleys to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory ensures that you receive factory-grade replacements for maximum durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for fast installation. A properly maintained deck assembly ensures uniform cutting, reduces strain on belts, and prevents mower downtime. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Diesel - 1500cc 72" Deck Assembly is now more affordable. Order today for precision mowing and professional-grade results.

Bad Boy Mower Parts Lookup

2019 Diesel - 1500cc - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0272-50 210-0272-50 - 2017-2020 72" Mulch Kit Assembly w/Blades (See Models Used On)
$318.45
1 060-7201-00 060-7201-00 - 72" Deck Shell W/O Front Gates (See Models Used On For Detail)
$1594.22
2 047-5000-00 047-5000-00 - 5 Link Adjustable Deck Hanger (See Models Used On For Details)
$28.39
3 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
4 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
5 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
11 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
12 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
14 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
18 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
19 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
20 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
21 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
22 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
23 041-2525-00 041-2525-00 - B252.50 Deck Belt for 72" AOS Diesel (35hp/1500cc)
$131.30
24 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
25 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
27 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
28 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
30 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
31 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
32 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
33 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
34 058-6000-00 058-6000-00 - Black, Round Stick-On Rubber
$2.99
35 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
36 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
37 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
38 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
39 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
40 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
41 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
42 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
44 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
45 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
46 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
47.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
47 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
48 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
49 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
50 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
51 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
52 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
53 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
54 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
55 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
56.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
56 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
57 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
58 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
59 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
60 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
61 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
62 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
63 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
64 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
65 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
66 039-6945-05 039-6945-05 - Deck Idler Assembly
$68.47
