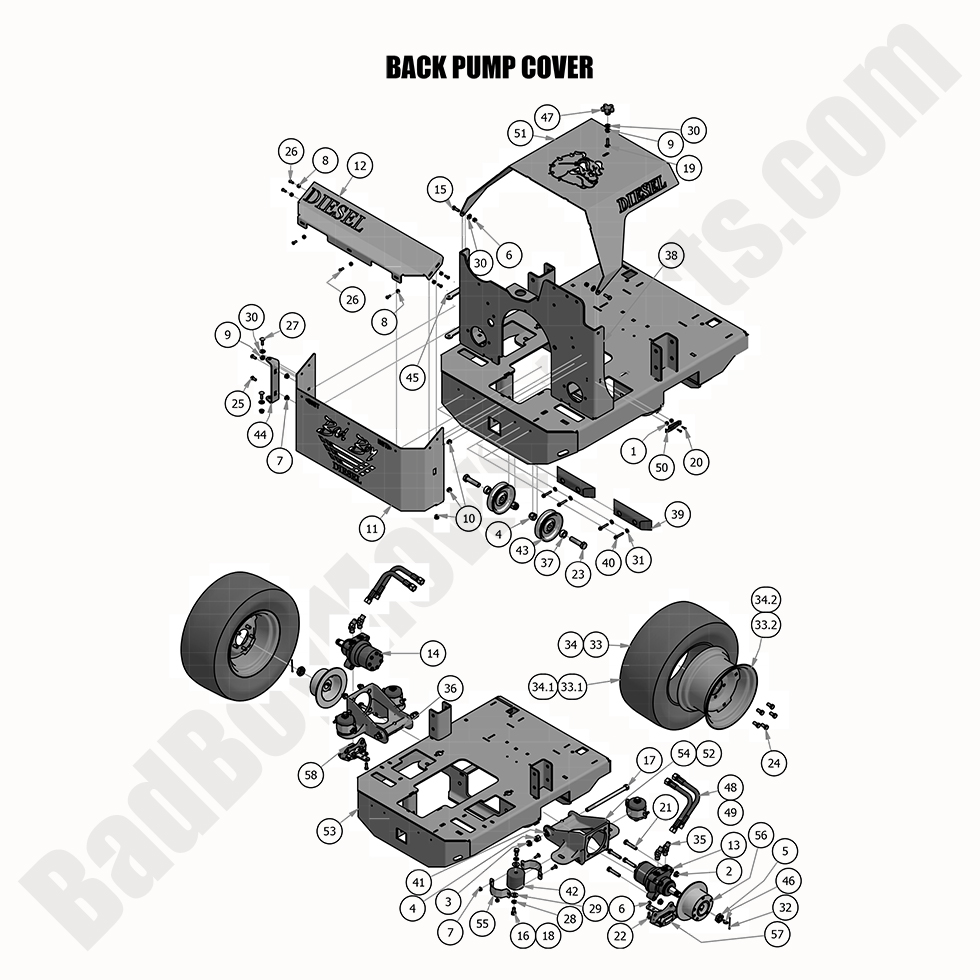

2019 Diesel - 1500cc - Back Pump Cover

2019 Diesel - 1500cc - Back Pump Cover

The 2019 Diesel - 1500cc Back Pump Cover plays a crucial role in protecting hydraulic components and maintaining system integrity. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including hydraulic covers, pump plates, and securing hardware to ensure durability and proper function. Our Bad Boy Lawn Mower Parts inventory offers factory-grade replacements designed for long-term reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct back pump cover components for seamless installation. Proper maintenance of the pump cover helps protect internal components from dirt, debris, and excessive wear. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, keeping your 2019 Diesel - 1500cc Back Pump Cover in peak condition is now more cost-effective. Order today to safeguard your hydraulic system and ensure long-lasting performance.

Bad Boy Mower Parts Lookup

2019 Diesel - 1500cc - Back Pump Cover
  Position Number SKU Product Title Price
1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
2 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
6 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
11 014-5920-00 014-5920-00 - Diesel Back Pump Cover 2008
$42.79
12 014-5921-00 014-5921-00 - Diesel Back Pump Cover - Top
$26.75
13 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
14 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
16 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
17 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
18 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
19 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
22 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
23 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
24 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
25 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
26 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
27 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
28 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
29 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
30 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
31 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
32 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
33.0 022-7031-00 022-7031-00 - 26x12.00-12 Orange Wheel and Tire Assembly
$428.99
33.1 022-7032-00 022-7032-00 - 26x12.00-12 Tire (One Tire Only)
$309.99
33.2 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS/Diesel Rear
$219.99
34.0 022-7035-00 022-7035-00 - 26x12 -12 Reaper Tire & Wheel Assembly for Diesels
$393.99
34.1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
35 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting
$17.02
36 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
37 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
38 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
39 029-7038-00 029-7038-00 - 8 Bumper
$28.32
40 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
41 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
42 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
43 033-7025-00 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel
$28.39
44 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
45 039-0072-00 039-0072-00 - Obsolete Diesel Hinge Tab No Longer Available
Obsolete.
46 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
47 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
48 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$145.95
49 051-6085-00 051-6085-00 - 26" Hydro Hose Only
$40.53
50 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
51 059-8010-00 059-8010-00 - 2008-2020 Diesel Hood 4cyl
$159.99
52 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$265.37
53 070-5570-00 070-5570-00 - 2012-2014 Outlaw Diesel Frame
$1399.99
54 070-8000-00 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details)
$291.91
55 072-1000-00 072-1000-00 - Isolator Band Clamp
$7.28
56 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
57 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
58 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
