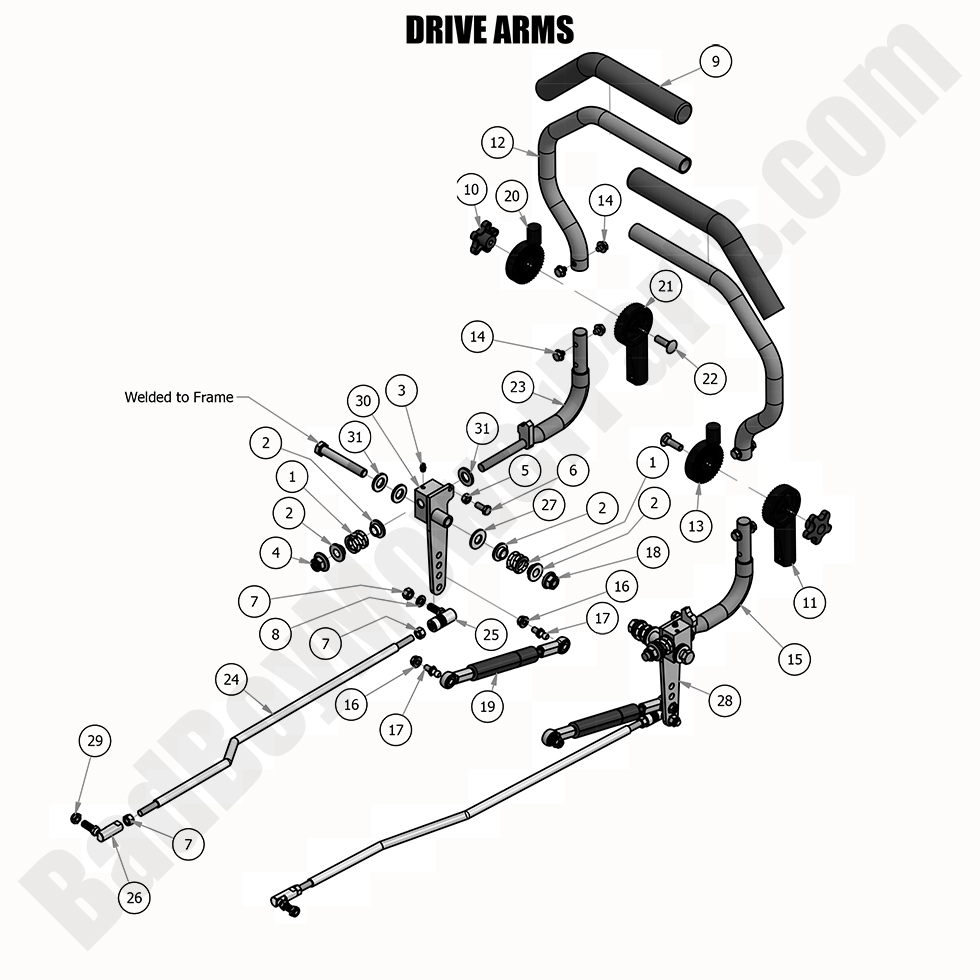

2019 Diesel - 1500cc - Drive Arms

2019 Diesel - 1500cc - Drive Arms

The 2019 Diesel - 1500cc Drive Arms are essential for smooth power transfer and precise control of your mower. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including drive arms, bushings, pivot brackets, and hydraulic fittings for reliable operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements that provide long-lasting durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for seamless installation. A well-maintained drive arm system improves maneuverability, reduces wear on hydraulic components, and enhances mower efficiency. We offer Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Diesel - 1500cc Drive Arms is now more affordable. Order today to ensure smooth and precise mower operation.

Bad Boy Mower Parts Lookup

2019 Diesel - 1500cc - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
10 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
11 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
12 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
13 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
14 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
15 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
18 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
19 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
20 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster-Black (See Models Used On For Details)
$53.24
21 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
22 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
24 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
25 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
26 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
27 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
28 027-2017-00 027-2017-00 - Steering Block Assembly-Right (See Models Used On For Details)
$35.30
29 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
30 027-2018-00 027-2018-00 - Steering Block Assembly-Left (See Models Used On For Details)
$35.30
31 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
