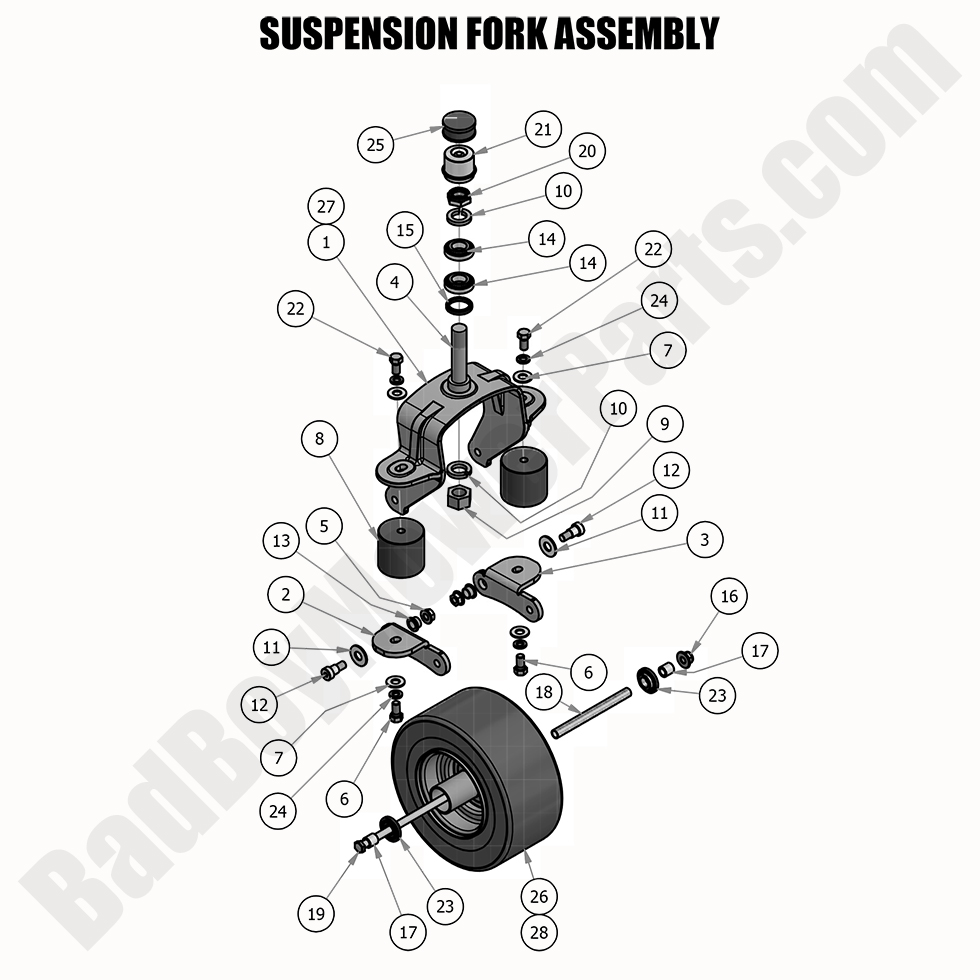

2019 Diesel - 1500cc - Suspension Fork Assembly

2019 Diesel - 1500cc - Suspension Fork Assembly

The 2019 Diesel - 1500cc Suspension Fork Assembly is essential for stability and smooth operation over rough terrain. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including suspension forks, shock absorbers, caster wheels, and securing hardware for a smoother ride. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for long-lasting durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary suspension fork components for seamless installation. Proper suspension maintenance reduces operator fatigue, enhances traction, and improves overall mower control. We offer Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Diesel - 1500cc Suspension Fork Assembly is now more affordable. Order today for enhanced stability and a superior mowing experience.

Bad Boy Mower Parts Lookup

2019 Diesel - 1500cc - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
8 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
9 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
10 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
11 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
14 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
15 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
18 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
19 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
20 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
21 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
22 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
23 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
26 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
