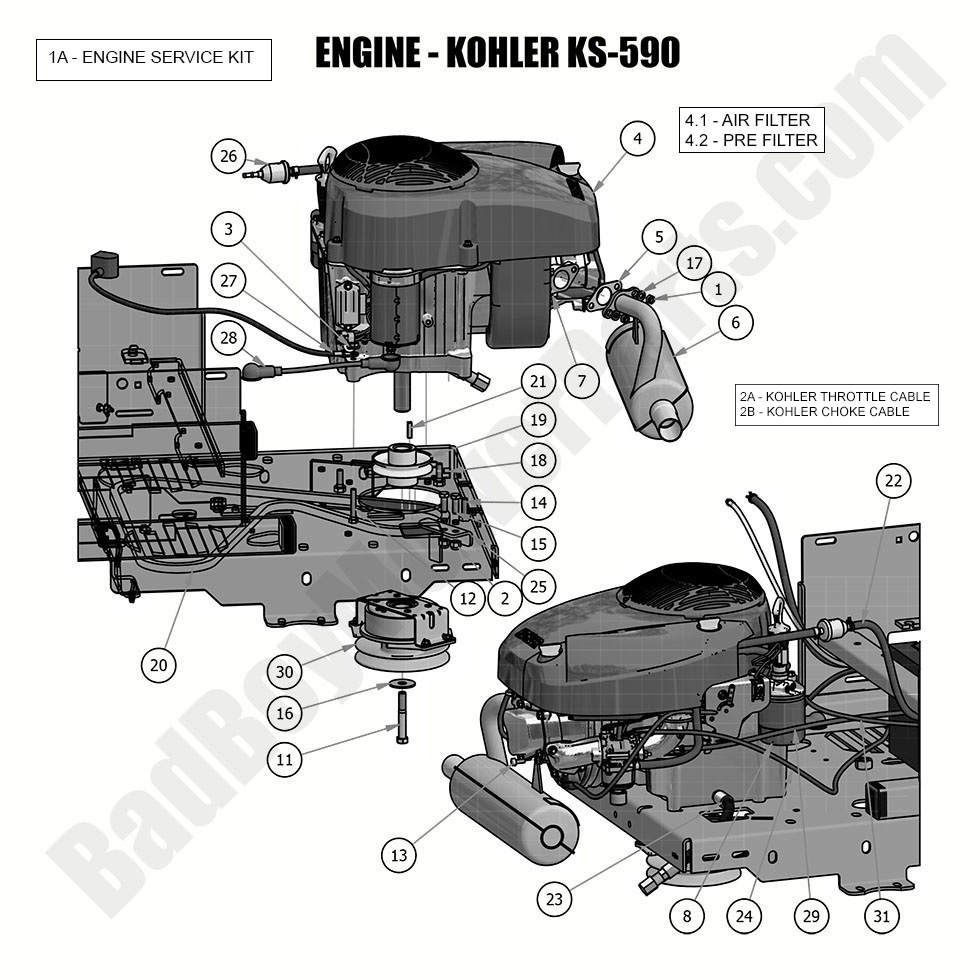

2019 MZ & MZ Magnum - Engine - Kohler KS590

2019 MZ & MZ Magnum - Engine - Kohler KS590

The 2019 MZ & MZ Magnum Engine - Kohler KS590 delivers dependable power, making regular maintenance crucial for long-term performance. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts, including oil filters, spark plugs, fuel lines, and cooling components to keep your engine running efficiently. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct Kohler engine components for easy installation. Proper maintenance ensures consistent power output, prevents fuel system issues, and maximizes engine efficiency. We offer Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Engine - Kohler KS590 is now more cost-effective. Order today for long-lasting engine performance and superior mowing power.

Bad Boy Mower Parts Lookup

2019 MZ & MZ Magnum - Engine - Kohler KS590
  Position Number SKU Product Title Price
1A 063-2000-13 063-2000-13 - Engine Service Kit for Kohler 5400 Series (KS590)
$98.09
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
4.0 015-0077-00 015-0077-00 - 2018 - 2022 541cc Kohler 5400 Series Engine 19h
$1592.29
4.1 015-0077-06 015-0077-06 - Air Filter for 015-0077-00 fits KS590 Engines
$32.78
4.2 015-0077-05 015-0077-05 - Air Pre-Cleaner for 015-0077-00 fits KS590 Engines
$10.91
5 015-0077-01 015-0077-01 - Exhaust Gasket (See Models Used On for Details)
$7.28
6 015-0077-02 015-0077-02 - Exhaust for 2018-2022 Kohler 5400 Series
$175.14
7 015-0077-03 015-0077-03 - Spark Plug for Kohler KS590
$9.89
8 015-0077-04 015-0077-04 - Oil Filter (See Models Used On For Details)
$24.12
11 018-0007-00 018-0007-00 - 7/16-20 x 3 Hex C/S GR 8
$2.99
12 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
13 018-0101-00 018-0101-00 - M6-1.0 X 16MM Bolt
$3.29
14 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
16 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
19 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
22 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
23 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
25 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
26 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
27 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
29 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
30 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
31 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
