2019 MZ & MZ Magnum - Engine - Kohler KT725, KT740

2019 MZ & MZ Magnum - Engine - Kohler KT725, KT740

The 2019 MZ & MZ Magnum Engine - Kohler KT725, KT740 provides high-performance power for smooth and efficient mowing. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including oil filters, air intake components, fuel systems, and cooling system parts for superior engine efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-lasting durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct engine components for seamless installation. Regular maintenance prevents engine strain, improves fuel economy, and extends the engine’s lifespan. We stock Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Engine - Kohler KT725, KT740 is now more budget-friendly. Order today for a reliable and powerful mowing experience.

Bad Boy Mower Parts Lookup

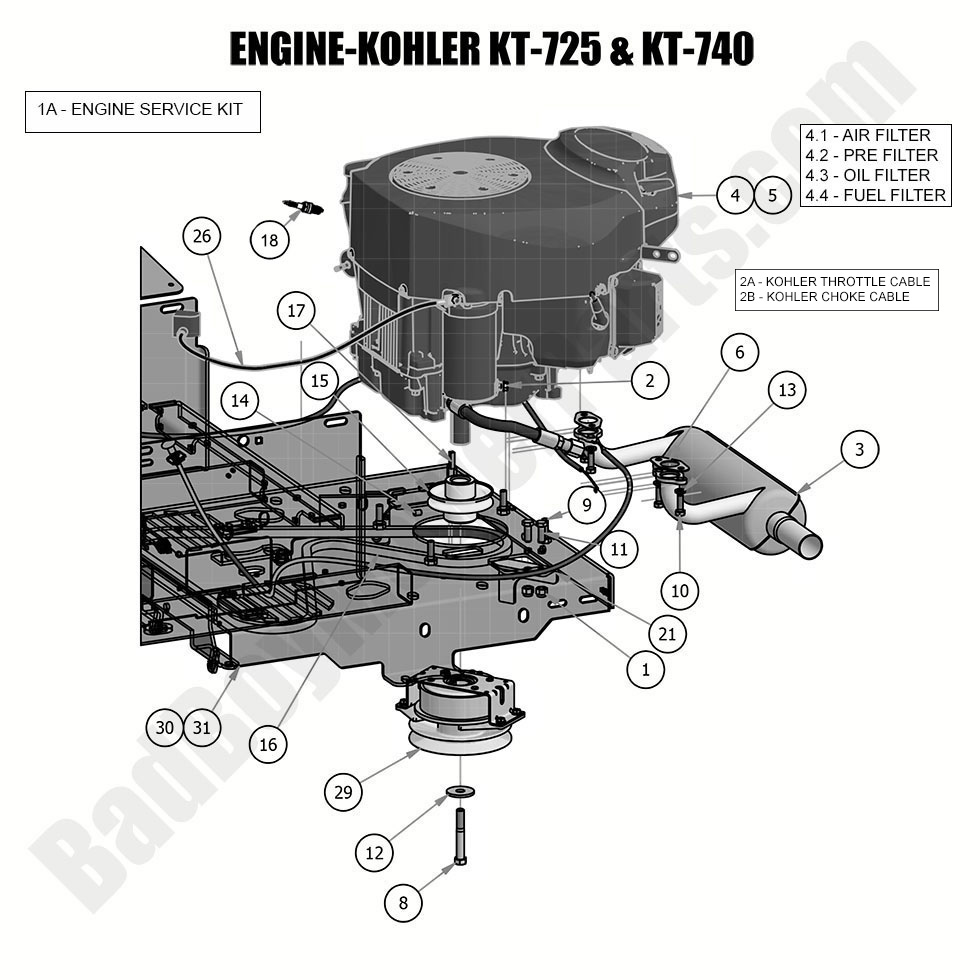

2019 MZ & MZ Magnum - Engine - Kohler KT725, KT740
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
4.0 015-2014-00 015-2014-00 - 25hp Kohler 2014-2022 MZ, 2020-2022 ZT Avenger-KT740-3048 (obsolete)
use part #015-2017-00
$2499.99
4.1 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
4.2 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
4.3 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
4.4 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
5 015-2015-00 015-2015-00 - 22 Kohler MZ/Magnum-KT725-3035 (obsolete)
use part #015-2017-00
$2499.99
6 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
8 018-0007-00 018-0007-00 - 7/16-20 x 3 Hex C/S GR 8
$2.99
9 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
12 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
15 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
16 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
17 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
18 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
21 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
26 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
29 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
30 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
31 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
