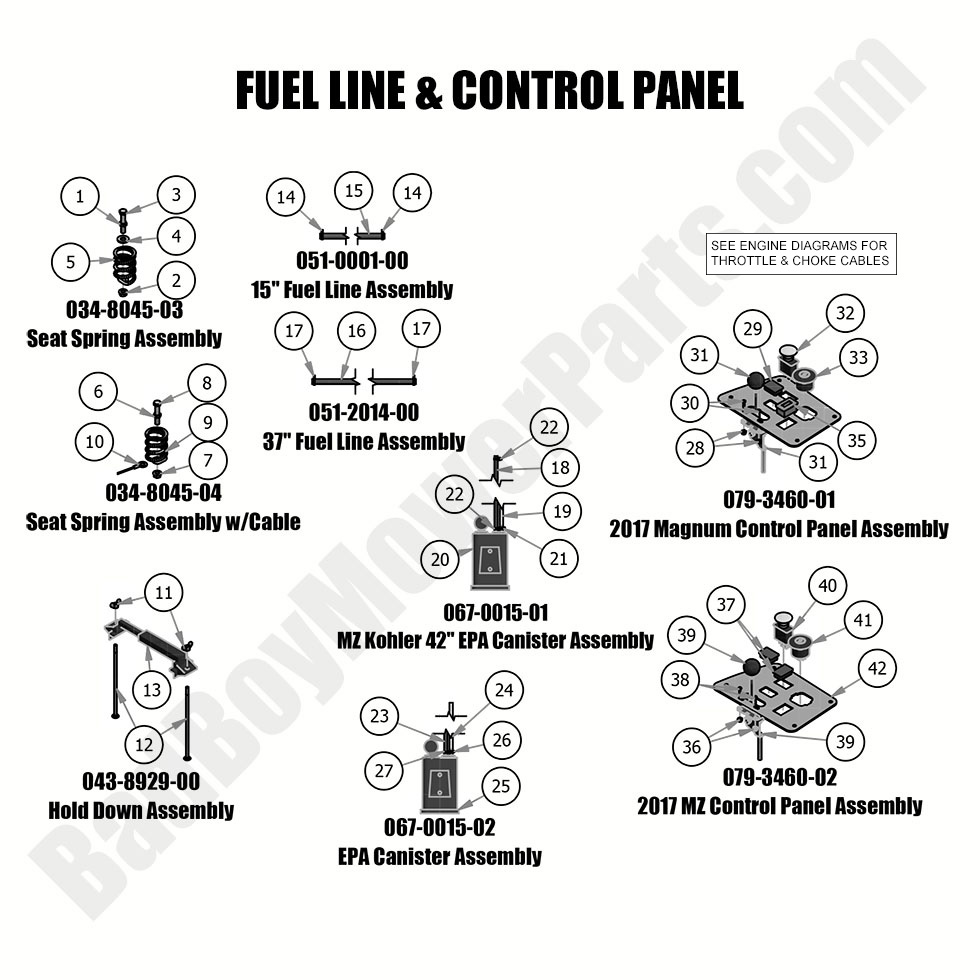

2019 MZ & MZ Magnum - Fuel Line and Control Panel

2019 MZ & MZ Magnum - Fuel Line and Control Panel

The 2019 MZ & MZ Magnum Fuel Line and Control Panel system ensures efficient fuel management and user-friendly operation. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including fuel lines, fuel filters, control switches, and securing hardware for reliable performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for efficiency and durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct fuel system components for seamless installation. Regular maintenance prevents fuel leaks, ensures optimal fuel flow, and extends engine longevity. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Fuel Line and Control Panel is now more cost-effective. Order today for enhanced fuel efficiency and mower control.

Bad Boy Mower Parts Lookup

2019 MZ & MZ Magnum - Fuel Line and Control Panel
  Position Number SKU Product Title Price
1.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
4 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6.0 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
10 064-8081-00 064-8081-00 - Seat Cable
$15.60
11.0 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
11 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
12 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
14.0 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
14 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
15 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
16.0 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
16 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
18.0 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78
18 051-2023-01 051-2023-01 - 3/16 Vinyl 53" EPA Line
$9.67
19 051-2027-01 051-2027-01 - 3/16 Clear 44" EPA Line
$7.25
20 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
21 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
22 072-8075-00 072-8075-00 - 8.6 Mm Hose Clamp
$3.62
23.0 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
23 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
24 051-2027-02 051-2027-02 - 52" x 3/16" clear hose
$7.25
28.0 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93
28 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
29 018-1040-00 018-1040-00 - Light Plug
$2.99
30 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
32 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
33 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
35 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
36.0 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
42 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
