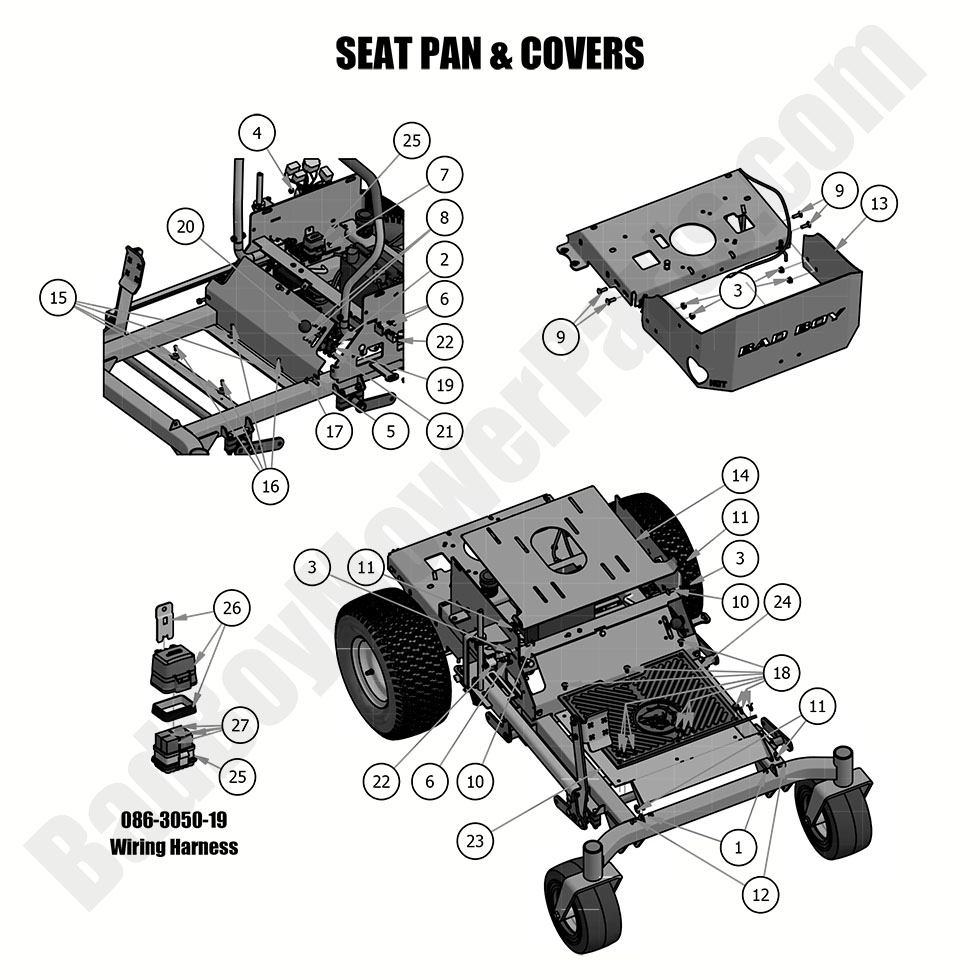

2019 MZ & MZ Magnum - Seat Pan and Covers

2019 MZ & MZ Magnum - Seat Pan and Covers

The 2019 MZ & MZ Magnum Seat Pan and Covers provide structural support and protection for the operator’s seat. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including seat pans, seat covers, mounting hardware, and cushioning materials for comfort and durability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements built to withstand extensive use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct seat pan and cover components for seamless installation. A well-maintained seat pan enhances support, reduces wear, and ensures operator stability. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Seat Pan and Covers is now more affordable. Order today for long-lasting comfort and support while mowing.

Bad Boy Mower Parts Lookup

2019 MZ & MZ Magnum - Seat Pan and Covers
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
5 014-3317-00 014-3317-00 - Cooler Cover (See Models Used On For Details)
$76.50
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
8 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
9 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
10 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
11 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
12 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
13 026-0117-00 026-0117-00 - 2017-2021 MZ Rear Plate
$102.99
14 026-2017-00 026-2017-00 - MZ Seat Plate (See Models Used On For Details)
$129.99
15 029-4010-00 029-4010-00 - Button Bumper
$2.99
16 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
17 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
18 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
19 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
20 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
21 064-8057-17 064-8057-17 - 2017-2025 MZ Brake Cable- 18.37" CABLE ONLY
$25.54
22 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
23 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
24 081-4000-00 081-4000-00 - 2017-2021 Floor Mat (See Models Used On For Details)
$62.48
25.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
26 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
27 086-1202-19 086-1202-19 - Relay Terminal
$24.97
