2019 MZ & MZ Magnum - Tanks and Electronics

2019 MZ & MZ Magnum - Tanks and Electronics

The 2019 MZ & MZ Magnum Tanks and Electronics system ensures proper fuel storage and electrical functionality for smooth mower operation. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including fuel tanks, wiring harnesses, electrical connectors, and securing hardware for maximum reliability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for efficiency and safety. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary tank and electronic components for fast installation. Regular maintenance prevents fuel leaks, ensures proper wiring function, and extends the lifespan of key electrical systems. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Tanks and Electronics is now more affordable. Order today for reliable fuel storage and seamless electrical performance.

Bad Boy Mower Parts Lookup

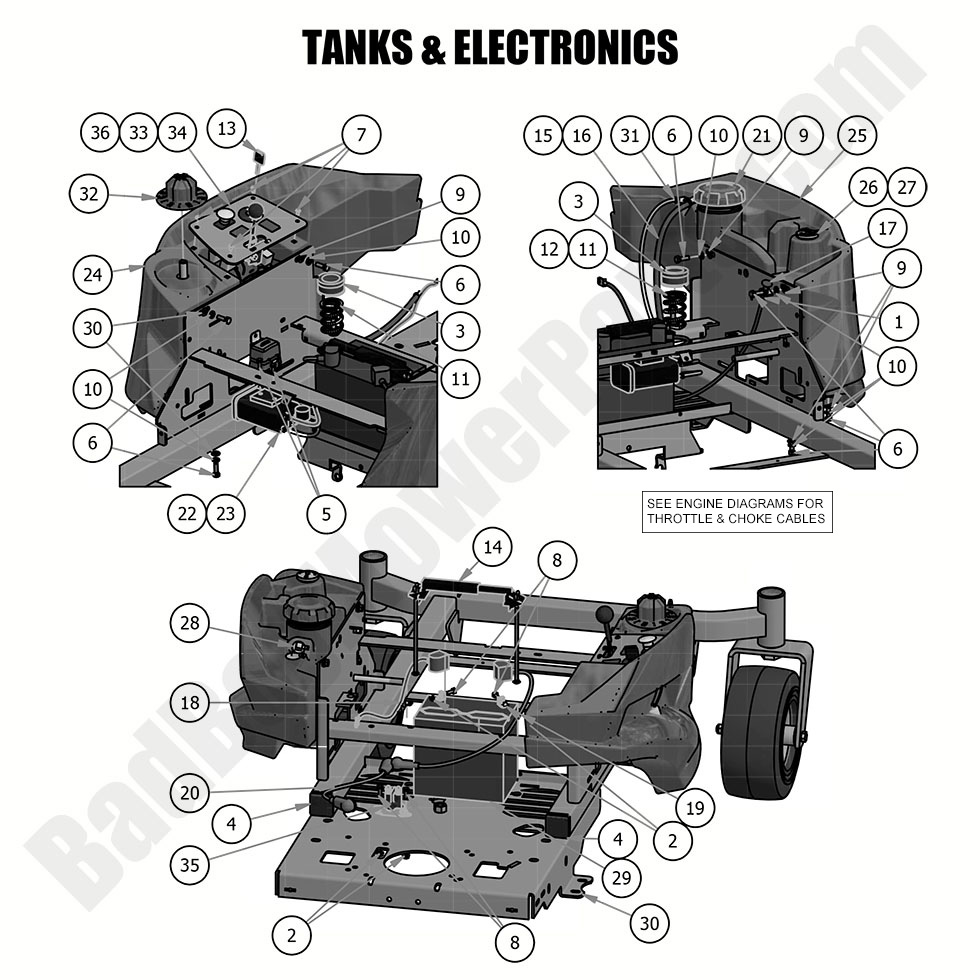

2019 MZ & MZ Magnum - Tanks and Electronics
  Position Number SKU Product Title Price
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99

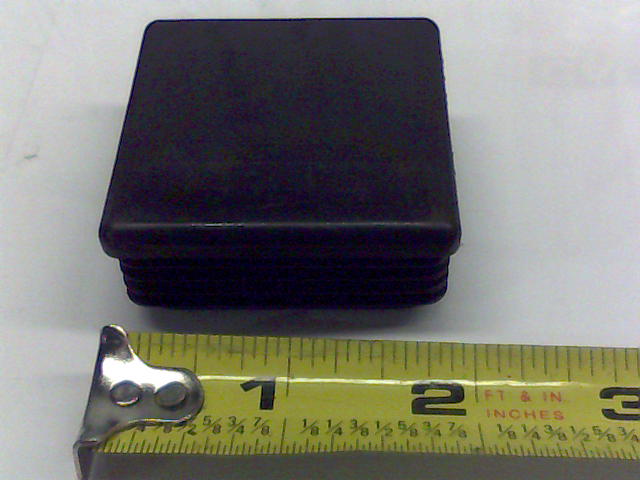

4 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99

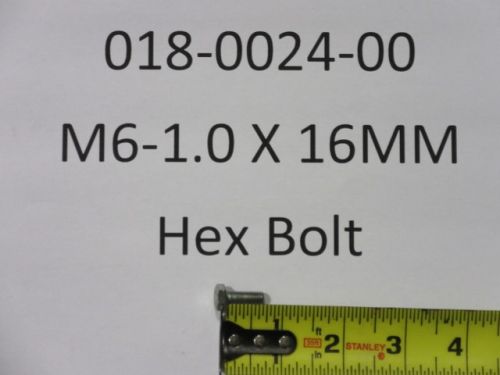

5 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
6 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99

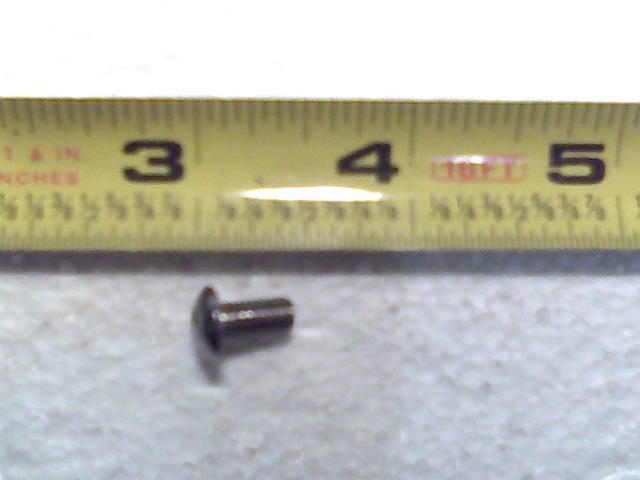

7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
12 034-8045-04 034-8045-04 - 2017 Seat Spring Assy. With Cable
$31.09
13 042-9000-00 042-9000-00 - Ignition Key
$4.06
14 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49

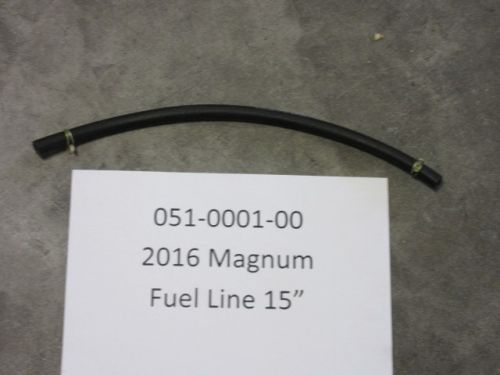

15 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53

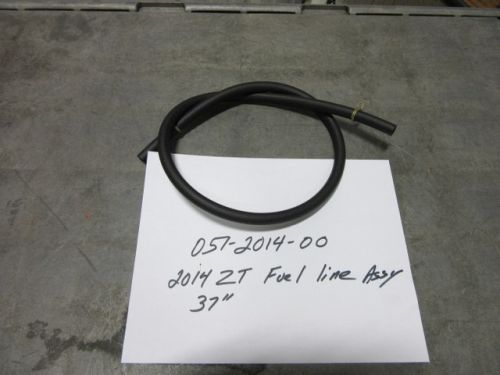

16 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
20 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
21 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
22 067-0015-01 067-0015-01 - MZ Briggs EPA Cannister Assy (obsolete)
use part #067-0015-00
$46.78

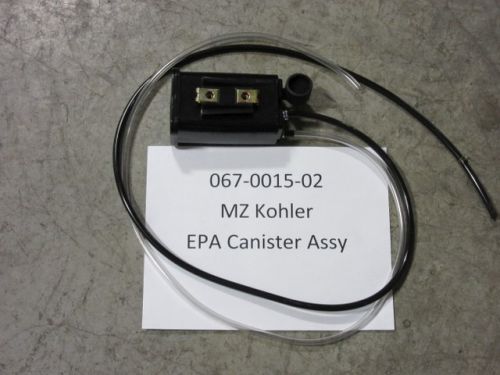

23 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72

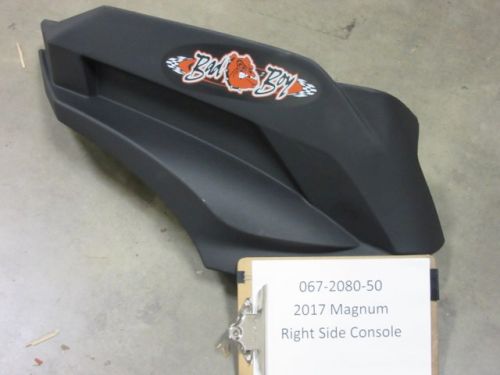

24 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
25 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
26 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
27 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
28 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
30 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99

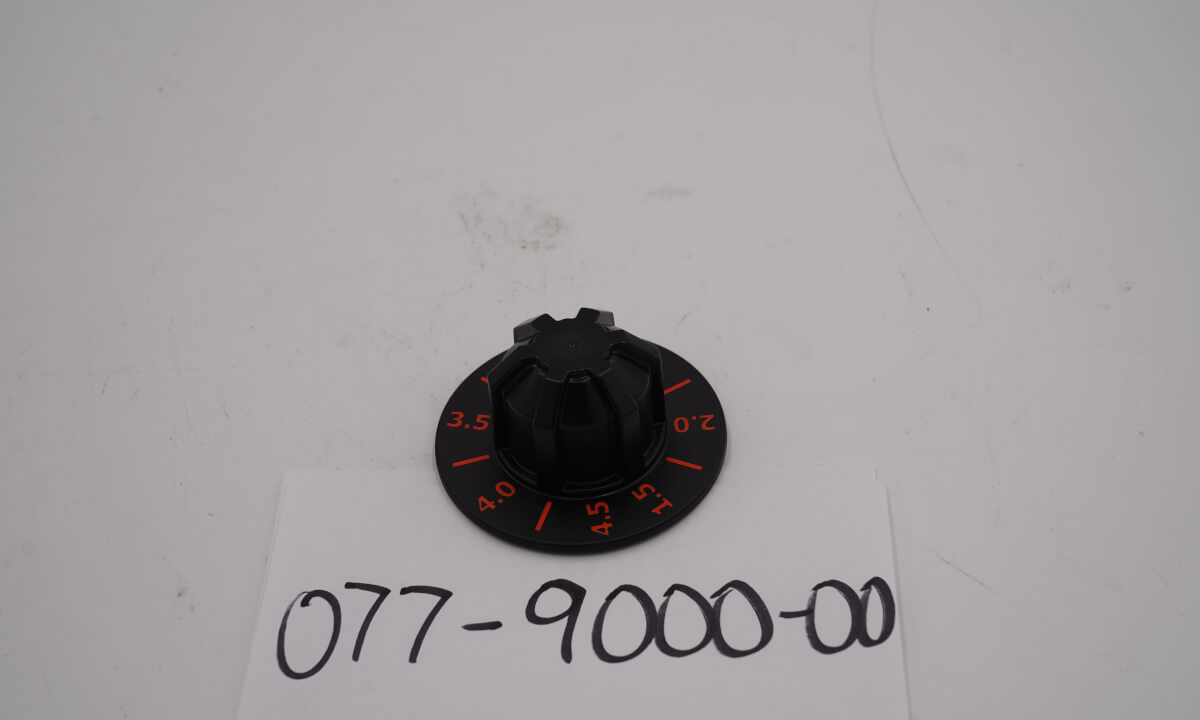

32 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39

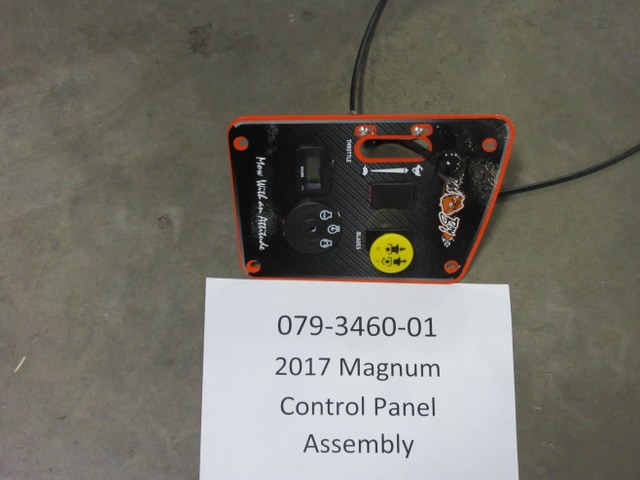

33 079-3460-01 079-3460-01 - 2017 - 2021 MZ Magnum Control Panel Assy.
$105.93

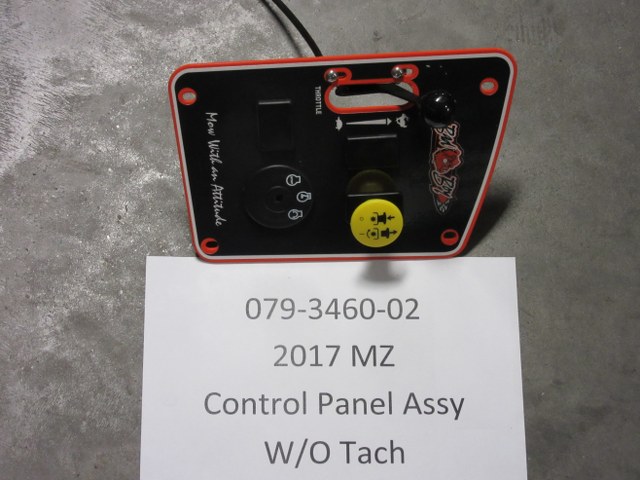

34 079-3460-02 079-3460-02 - 2017-2022 MZ Control Panel Assy.
$105.93
35 108-0001-00 108-0001-00 - Solenoid
$29.41

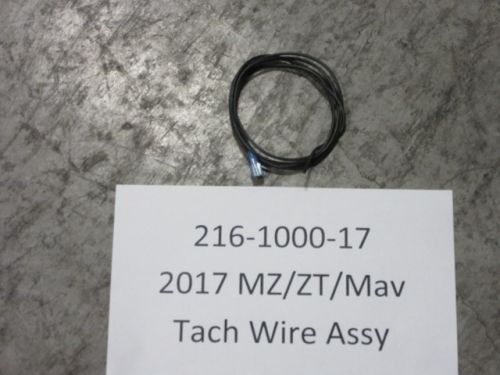

36 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
