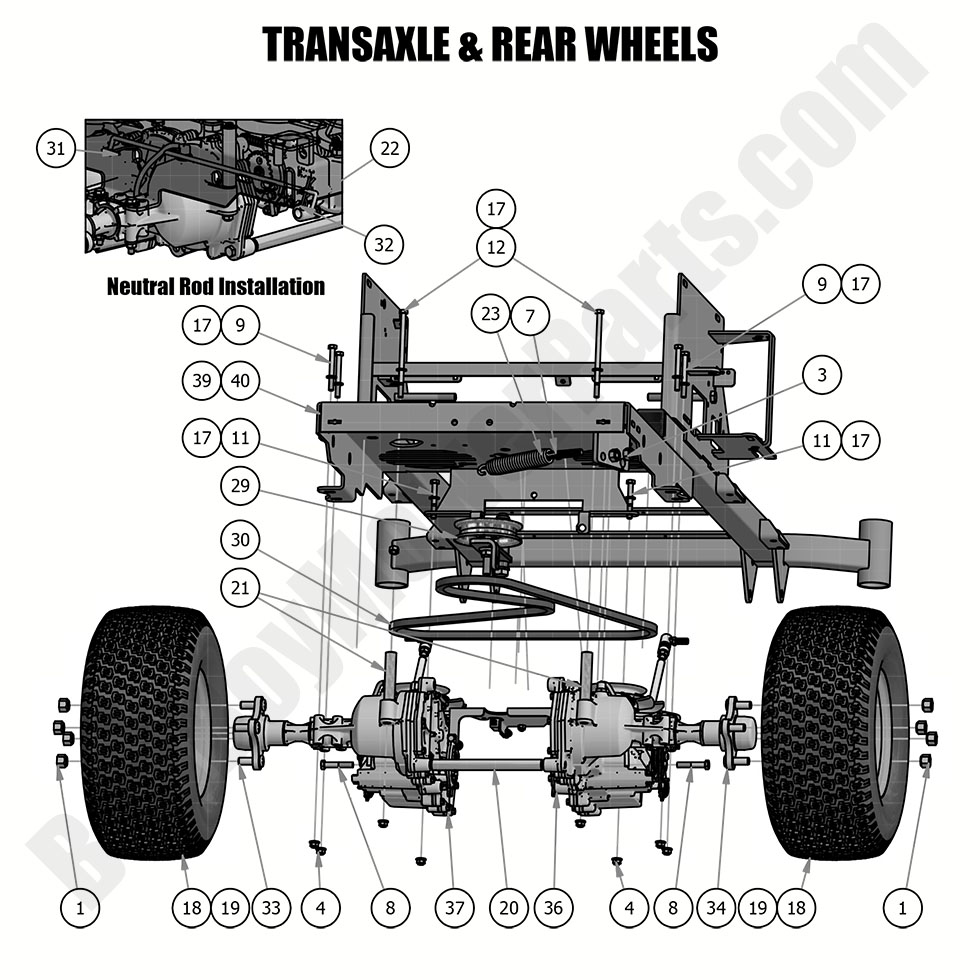

2019 MZ & MZ Magnum - Transaxle and Rear Wheels

2019 MZ & MZ Magnum - Transaxle and Rear Wheels

The 2019 MZ & MZ Magnum Transaxle and Rear Wheels system is crucial for power transfer and smooth operation. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including transaxles, hydraulic pumps, rear wheels, and securing hardware to maintain superior traction and control. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct transaxle and wheel components for easy installation. A properly maintained transaxle and wheel system improves speed control, enhances maneuverability, and extends the mower’s lifespan. We offer Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Transaxle and Rear Wheels is now more cost-effective. Order today for smoother performance and long-lasting durability.

Bad Boy Mower Parts Lookup

2019 MZ & MZ Magnum - Transaxle and Rear Wheels
  Position Number SKU Product Title Price
1B 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
1 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
8 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
9 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
11 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
12 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
17 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
18 022-2050-17 022-2050-17 - 18x8.50-8 Tire/Wheel Assy 42" MZ (See Models Used On For Details)
$175.99
19 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$229.99
20` 025-0016-00 025-0016-00 - Transaxle Spacer-MZ (See Models Used On For Details)
$14.04
21 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
22 028-0070-00 028-0070-00 - Neutral Rod
$12.48
23 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
29 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
30 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
31 044-2004-00 044-2004-00 - Bow Pin
$2.99
32 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
33 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
34 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
36 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
37 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
39 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1199.99
40 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1199.99
