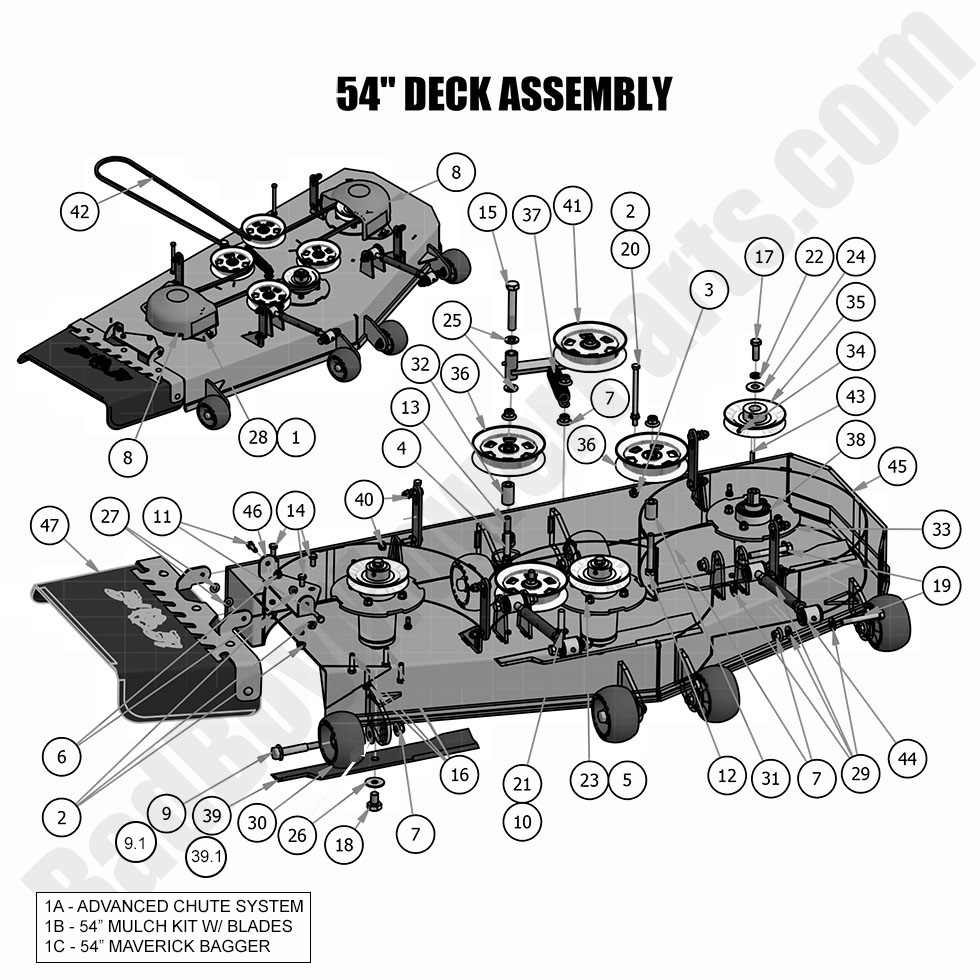

2019 Maverick - 54" Deck Assembly

2019 Maverick - 54" Deck Assembly

The 2019 Maverick 54" Deck Assembly delivers wide-area precision mowing with high durability and efficiency. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including spindles, deck belts, high-performance blades, and idler pulleys to ensure smooth operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for superior reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for easy installation. A well-maintained deck assembly ensures even cutting, reduces wear on moving parts, and prevents unnecessary downtime. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick 54" Deck Assembly is now more cost-effective. Order today for enhanced mowing performance and efficiency.

Bad Boy Mower Parts Lookup

2019 Maverick - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
9.1 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
21 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
28 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
29 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
38 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
39.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
39 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
40 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
41 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
42 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
45 060-5417-00 060-5417-00 - 2017-2022 54" ZT & 2018-2022 54" Maverick Deck Shell
$1275.76
46 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
47 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
