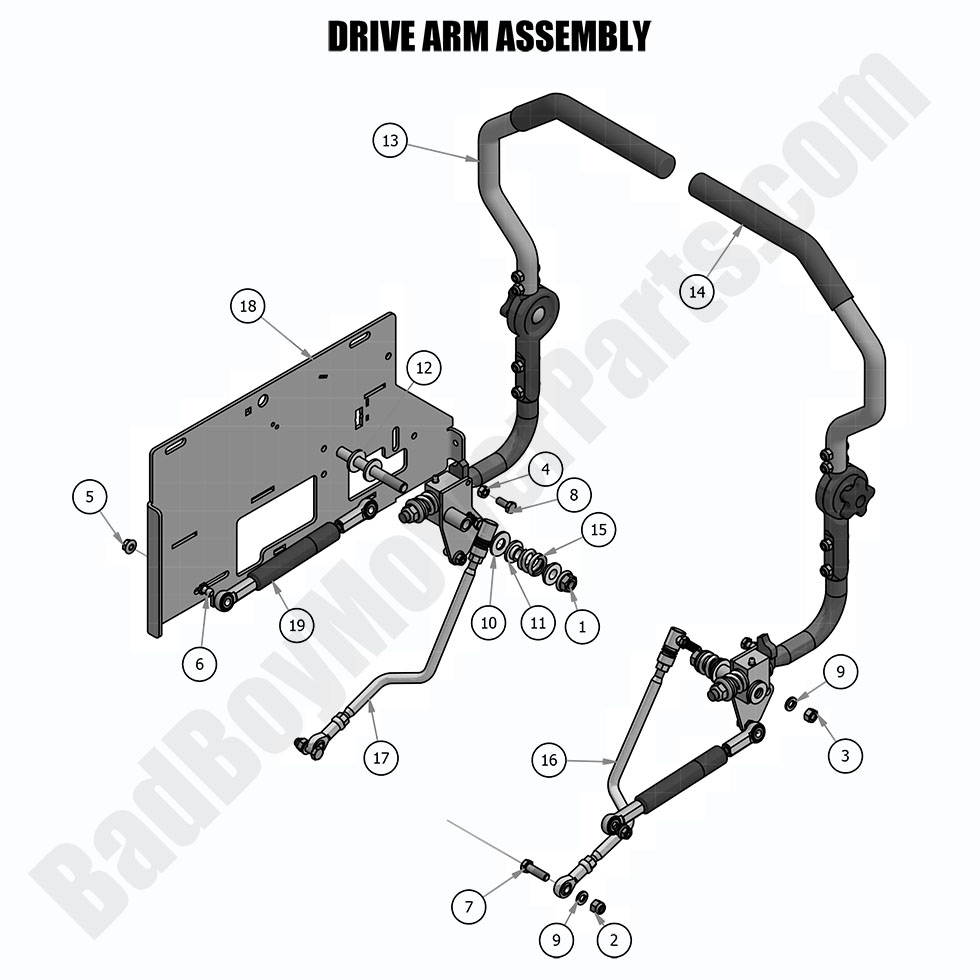

2019 Maverick - Drive Arm Assembly

2019 Maverick - Drive Arm Assembly

The 2019 Maverick Drive Arm Assembly plays a crucial role in power distribution and maneuverability. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including drive arms, hydraulic components, and mounting brackets for superior control and reliability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm assembly components for fast installation. Regular maintenance improves turning precision, reduces strain on the hydraulic system, and extends the lifespan of your mower. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Drive Arm Assembly is now more affordable. Order today to enhance your mower’s handling and overall performance.

Bad Boy Mower Parts Lookup

2019 Maverick - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
2 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 031-0017-03 031-0017-03 - 2019-2020 Maverick Left Steering Arm Assembly
$154.99
14 031-0018-03 031-0018-03 - 2019-2020 Maverick Right Steering Arm Assembly
$144.59
15 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
16 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
17 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
18 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
19 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
