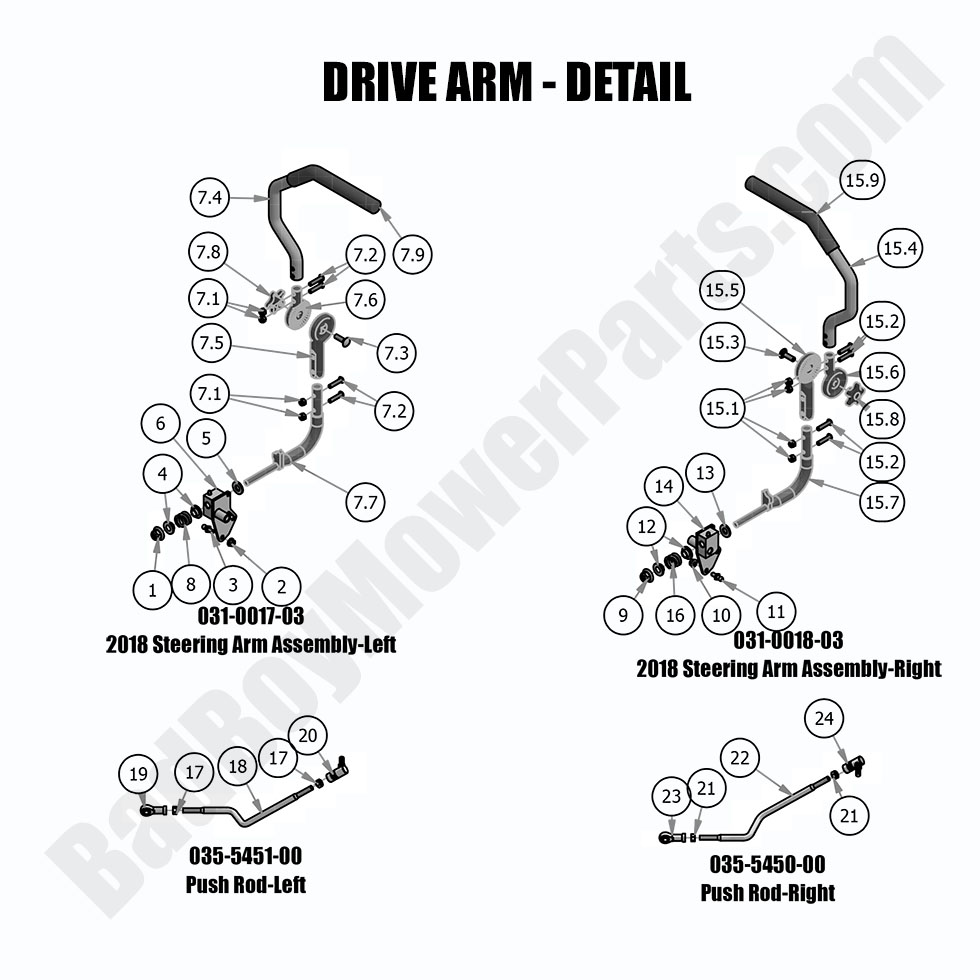

2019 Maverick - Drive Arm - Detail

2019 Maverick - Drive Arm - Detail

The 2019 Maverick Drive Arm - Detail system is essential for precise control and smooth operation. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including drive arms, bushings, pivot brackets, and hydraulic fittings to maintain reliability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for seamless installation. Proper maintenance of the drive arm system improves handling, reduces wear on hydraulic components, and ensures long-term performance. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Drive Arm - Detail is now more budget-friendly. Order today to keep your mower performing smoothly and efficiently.

Bad Boy Mower Parts Lookup

2019 Maverick - Drive Arm - Detail
  Position Number SKU Product Title Price
1.0 031-0017-03 031-0017-03 - 2019-2020 Maverick Left Steering Arm Assembly
$154.99
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
3 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
4 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
5 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
6 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
7.0 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
7.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
7.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
7.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
7.4 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
7.5 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
7.6 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
7.7 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
7.8 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
7.9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
9.0 031-0018-03 031-0018-03 - 2019-2020 Maverick Right Steering Arm Assembly
$144.59
14 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
15.0 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
15.5 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
15.6 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
15.7 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
17.0 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
17 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
20 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
21.0 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
