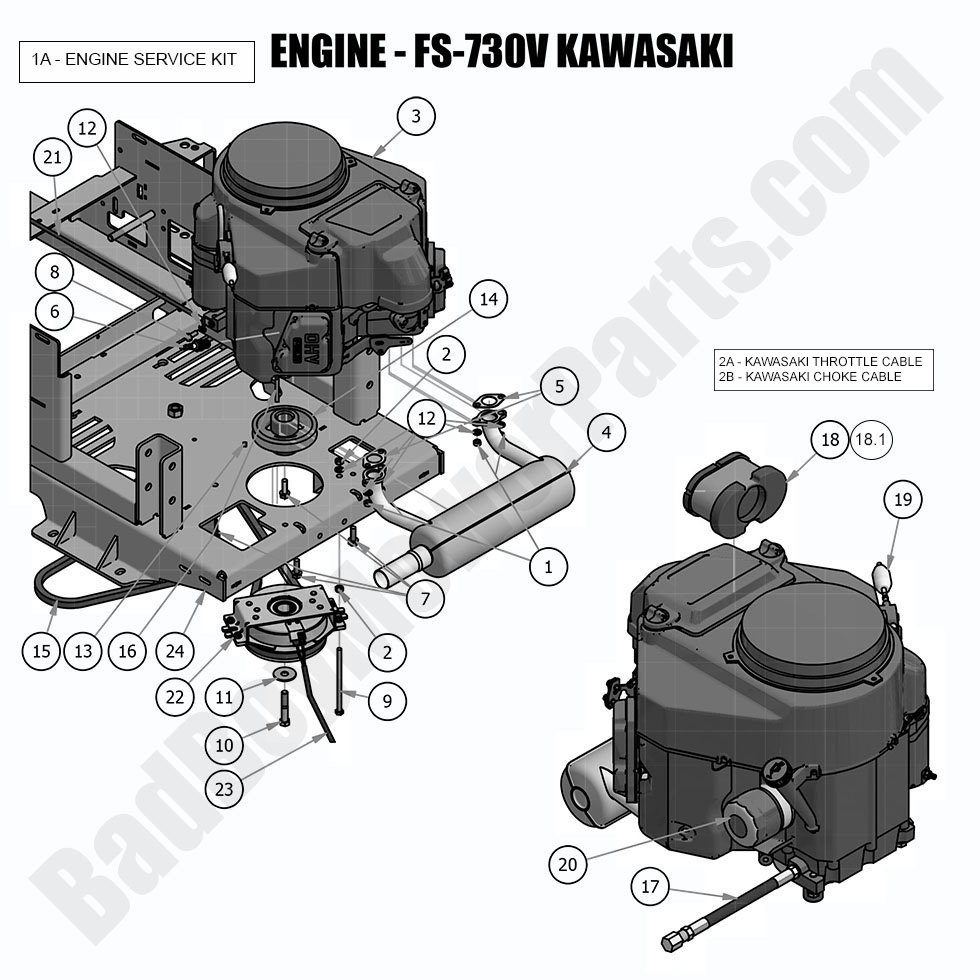

2019 Maverick - Engine - Kawasaki FS730V

2019 Maverick - Engine - Kawasaki FS730V

The 2019 Maverick Engine - Kawasaki FS730V is built for durability and peak performance, making regular maintenance essential. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including oil filters, fuel lines, spark plugs, and cooling system parts to maintain smooth operation. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for reliable performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary engine components for fast installation. Routine maintenance improves fuel efficiency, reduces wear, and extends the overall lifespan of your mower. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Engine - Kawasaki FS730V is now more cost-effective. Order today to ensure long-lasting power and performance.

Bad Boy Mower Parts Lookup

2019 Maverick - Engine - Kawasaki FS730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
3 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R (See Models Used On For Details)
$2299.99
4 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
8 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
9 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
10 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
11 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
14 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
15 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
16 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
17 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
18.1 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
18 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
19 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
20 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
21 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
22 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
23 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
24 070-5490-18 070-5490-18 - 2018-2020 Maverick Frame
$1099.99
