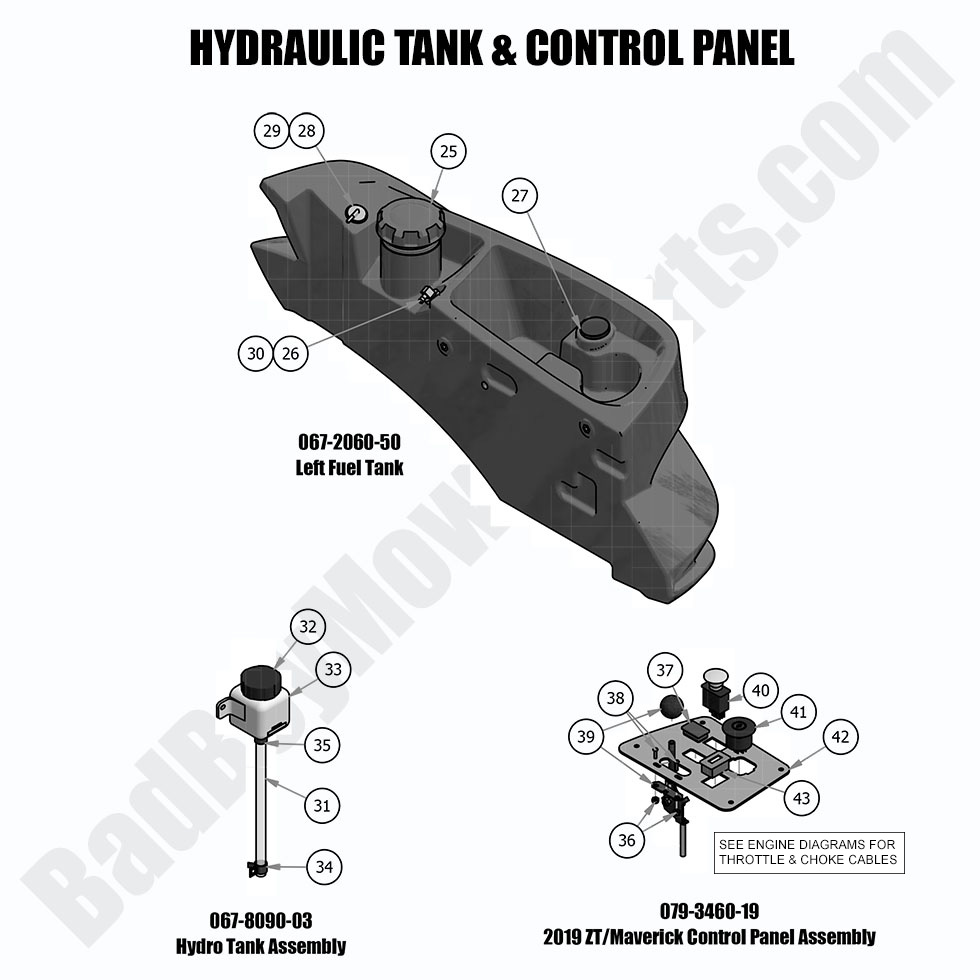

2019 Maverick - Hydro Tank and Control Panel

2019 Maverick - Hydro Tank and Control Panel

The 2019 Maverick Hydro Tank and Control Panel system is essential for hydraulic efficiency and easy control access. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including hydro tanks, fluid reservoirs, control switches, and mounting hardware to maintain top performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary hydro tank and control panel components for seamless installation. Proper maintenance enhances hydraulic performance, prevents leaks, and ensures long-term mower functionality. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Hydro Tank and Control Panel is now more cost-effective. Order today for smooth hydraulic operation and precision control.

Bad Boy Mower Parts Lookup

2019 Maverick - Hydro Tank and Control Panel
  Position Number SKU Product Title Price
25.0 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
25 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
26 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
27 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
29 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
30 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
31.0 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
31 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
32 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
33 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
34 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
35 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
36.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
36 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
37 018-1040-00 018-1040-00 - Light Plug
$2.99
38 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
40 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
41 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
42 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
43 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
