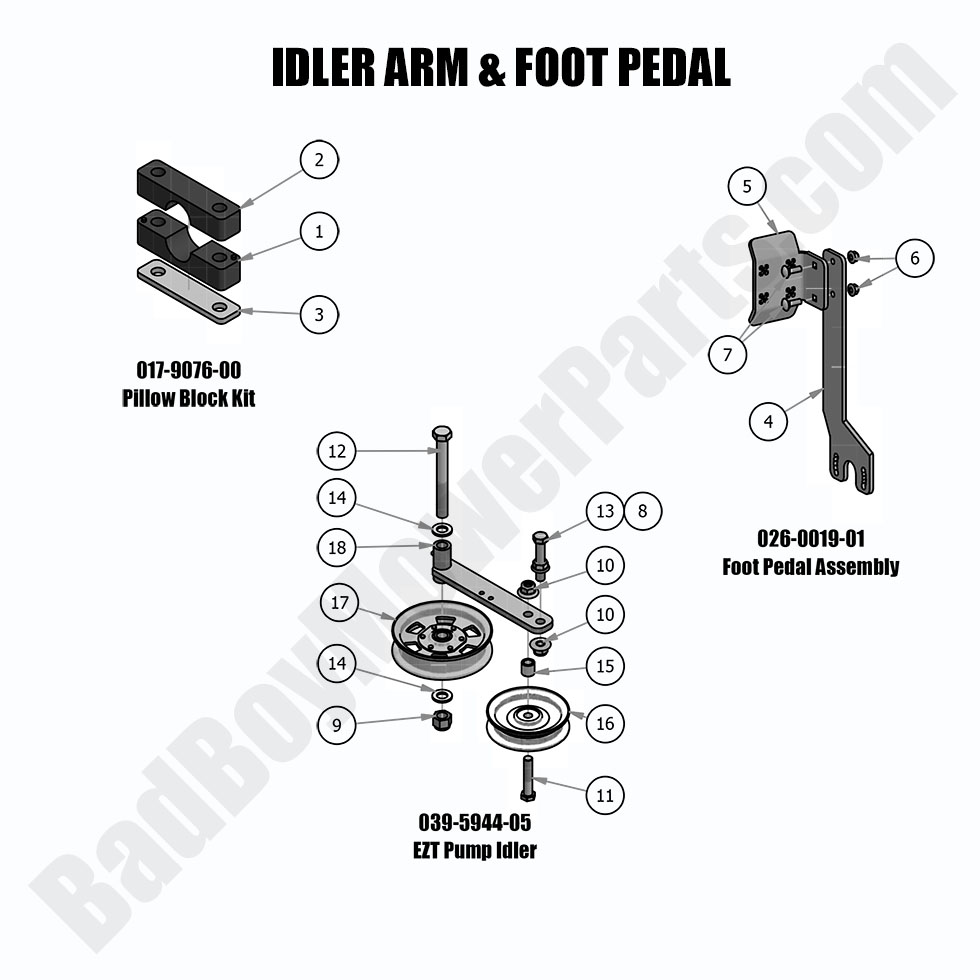

2019 Maverick - Idler Arm and Foot Pedal

2019 Maverick - Idler Arm and Foot Pedal

The 2019 Maverick Idler Arm and Foot Pedal system is crucial for smooth operation and precise deck height adjustments. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including idler arms, tension springs, foot pedals, and securing hardware for long-lasting performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct idler arm and foot pedal components for seamless installation. A well-maintained system improves deck responsiveness, reduces wear on belts, and enhances mower efficiency. We stock Bad Boy Parts Online for fast replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Idler Arm and Foot Pedal is now more affordable. Order today for superior cutting control and extended component lifespan.

Bad Boy Mower Parts Lookup

2019 Maverick - Idler Arm and Foot Pedal
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
4.0 026-0019-98 026-0019-98 - Foot Pedal Assembly (See Models Used On For Detail)
$93.69
4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
8.0 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
8 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
9 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
11 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
12 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
13 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
14 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
18 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
